Services Module

Place the services module in a position where the power switch can be accessed
easily. There should also be adequate space and air flow at the front of the services
module. Under the bench that the Sorter module sits on is an ideal position.

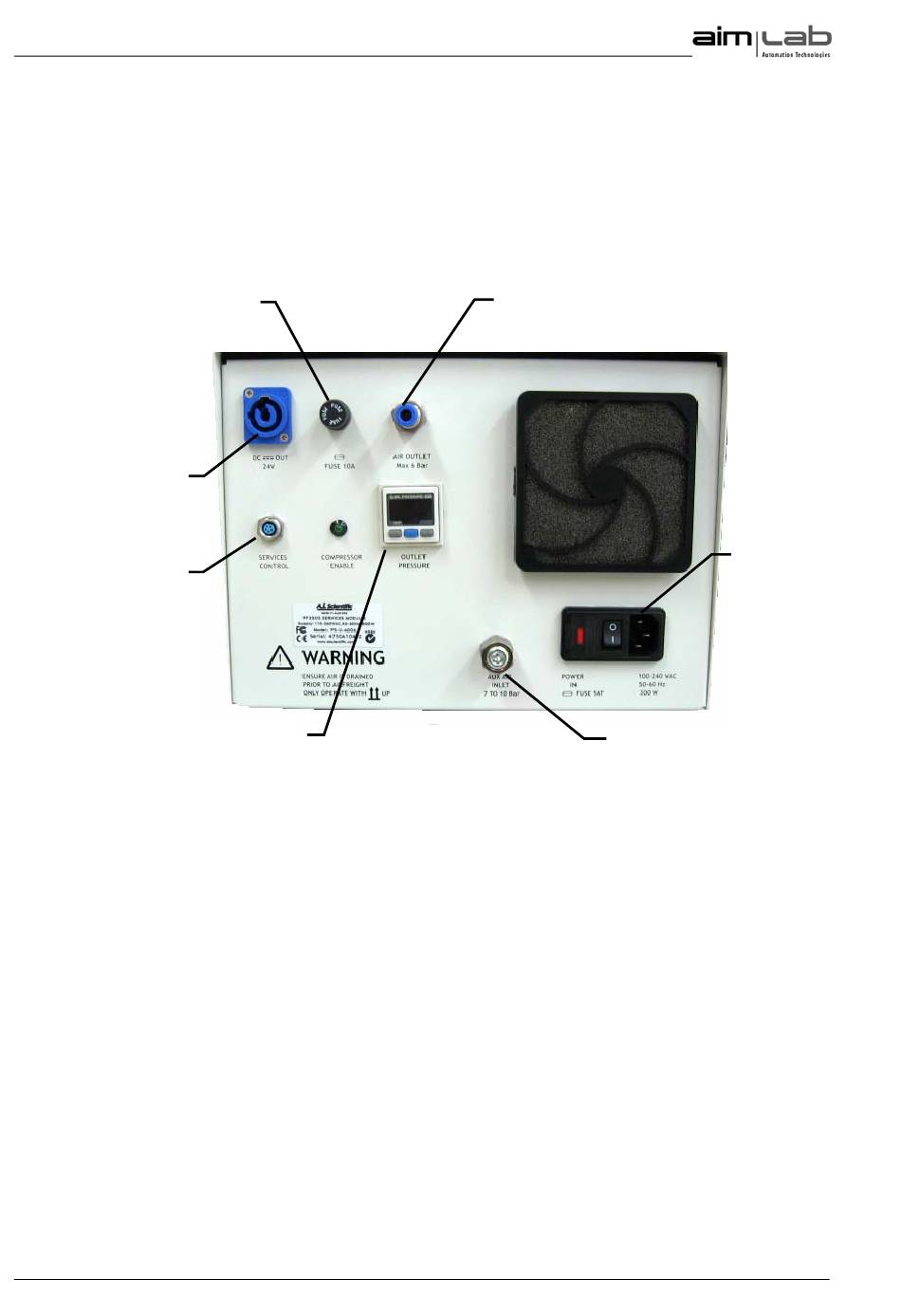

The connectors on the front of the services module are shown in Figure 4-9.
Sorter Power Fuse
Sorter Power
Services Module
Control
Air Pressure Display
Three connections are made between the services module and the Sorter:
1)
2)
3)
Page 32

Figure 4-9 Services Module Connections

Power: the power cable has two large blue plugs at either end. Attach one
end to the Sorter and the other end to the services module. The plugs slide
into their mating socket and twist clockwise until they engage with a click.
Control Cable: the control cable has a small silver connector at each end,
attach one end to the Sorter and the other end to the services module. The
plugs are pushed into their mating sockets and locked into position using the
shield screw.
Air: the air line is a hollow tube 4mm in diameter with a 4mm to 6mm
adaptor at one end. Fix the 6mm to the services module and the other to the
Sorter module. The air line simply pushes into the connector on each module.
Push the air line firmly into the socket as far as it will go.
