PathFinder 350S User Manual
4.2.3

LCD Monitor

The LCD monitor attaches to the Sorter using a tilting bracket to allow the screen
angle to be adjusted.

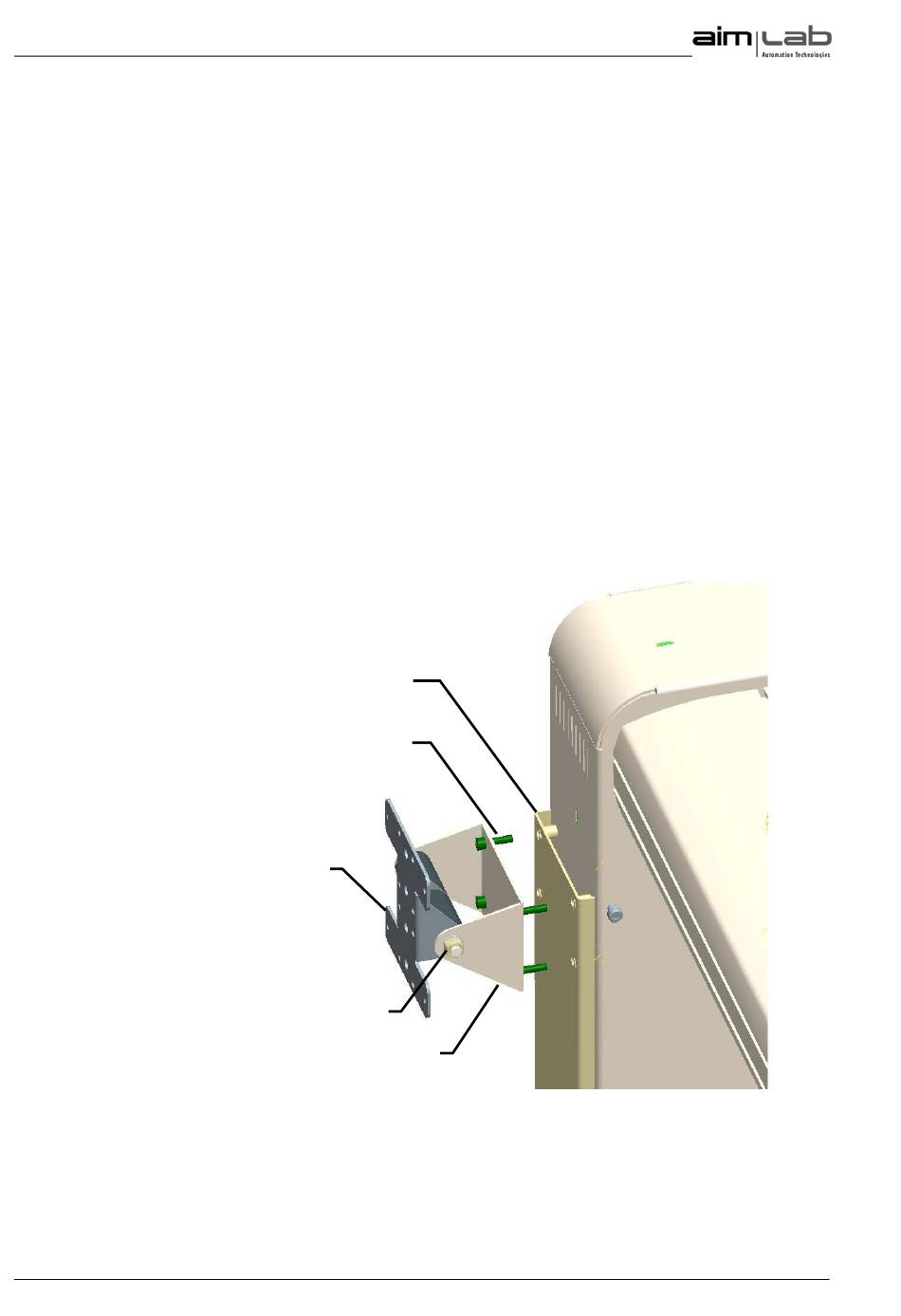

The bracket assembly is shown in Figure 4-5 below. Note: the monitor is not shown
in this figure so the brackets can be seen clearly.
The monitor is supplied with the bracket assembly fitted. To fit the monitor to the
Sorter cover plate, follow this procedure:
1)
2)
3)
4)
5)
Page 28
Align the Sorter bracket to the cover plate as shown.
Fasten the bracket to the plate using the 4 x M4 bolts provided (green).
The tilt of the monitor can be changed by hand. To adjust the force required
to tilt the monitor, tighten or loosen the central bracket bolt using the 10mm
spanner provided.
Route the monitor cable behind the monitor and down the back panel of the
PathFinder 350S. Use the cable tie points provided to restrain the cable.
Plug the monitor connectors into the back of the PathFinder 350S referring to
Figure 4-1.
Cover Plate
M4 Bolts
LCD Monitor Bracket
Central Bolt
Sorter Bracket

Figure 4-5 Monitor Bracket Installation
