3)
4)
5)
03P27-42 Rev A
Tighten using the 6mm hex driver.

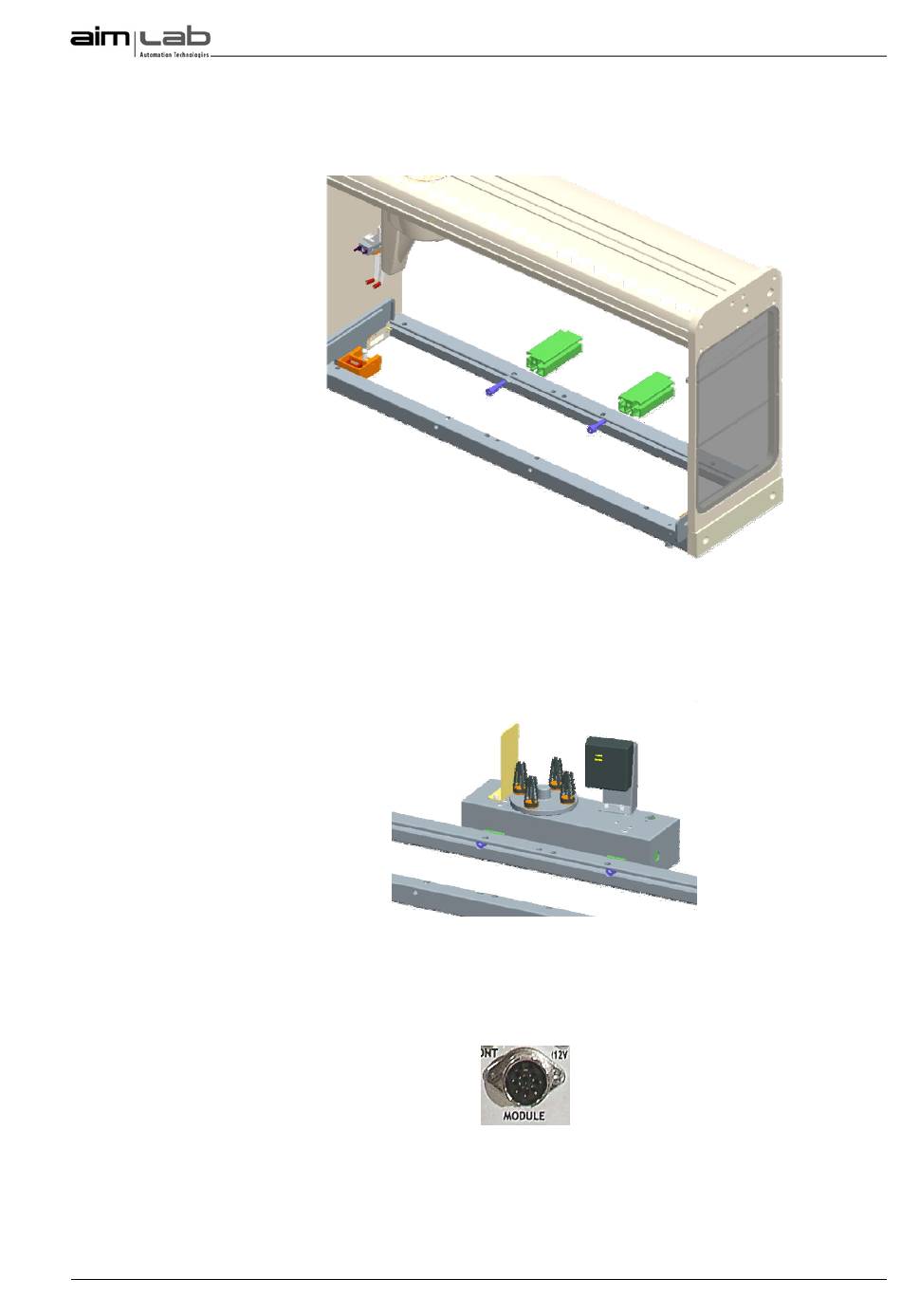

Figure 4-2 Carousel Leg Installation

Install the carousel by pushing it over the two legs. It is designed to fit snugly
over the two legs, and should sit on top of the legs when fully seated.

Figure 4-3 Carousel Installation

Plug the carousel cable into the module port on the back of the Sorter.

Figure 4-4 Module Port
