Using MinPad

Using MinPad
The MinPad is Javad's minimum interface used to display and control data input
and output (Figure 4-1).

Power Key

Pressing the power key turns the receiver on and off.

Status LED

• When the receiver is on and no satellites are tracked, the STAT LED will
blink red.
• When satellites are tracked, the STAT LED will produce one blink for each
tracked satellite (green for GPS, orange for GLONASS).

Reset Key

Pressing the reset key for about one second causes:
• a hard reset of the receiver.
• the receiver to leave Zero Power Mode and return to Normal Mode.
4-2 Maxor User's Manual

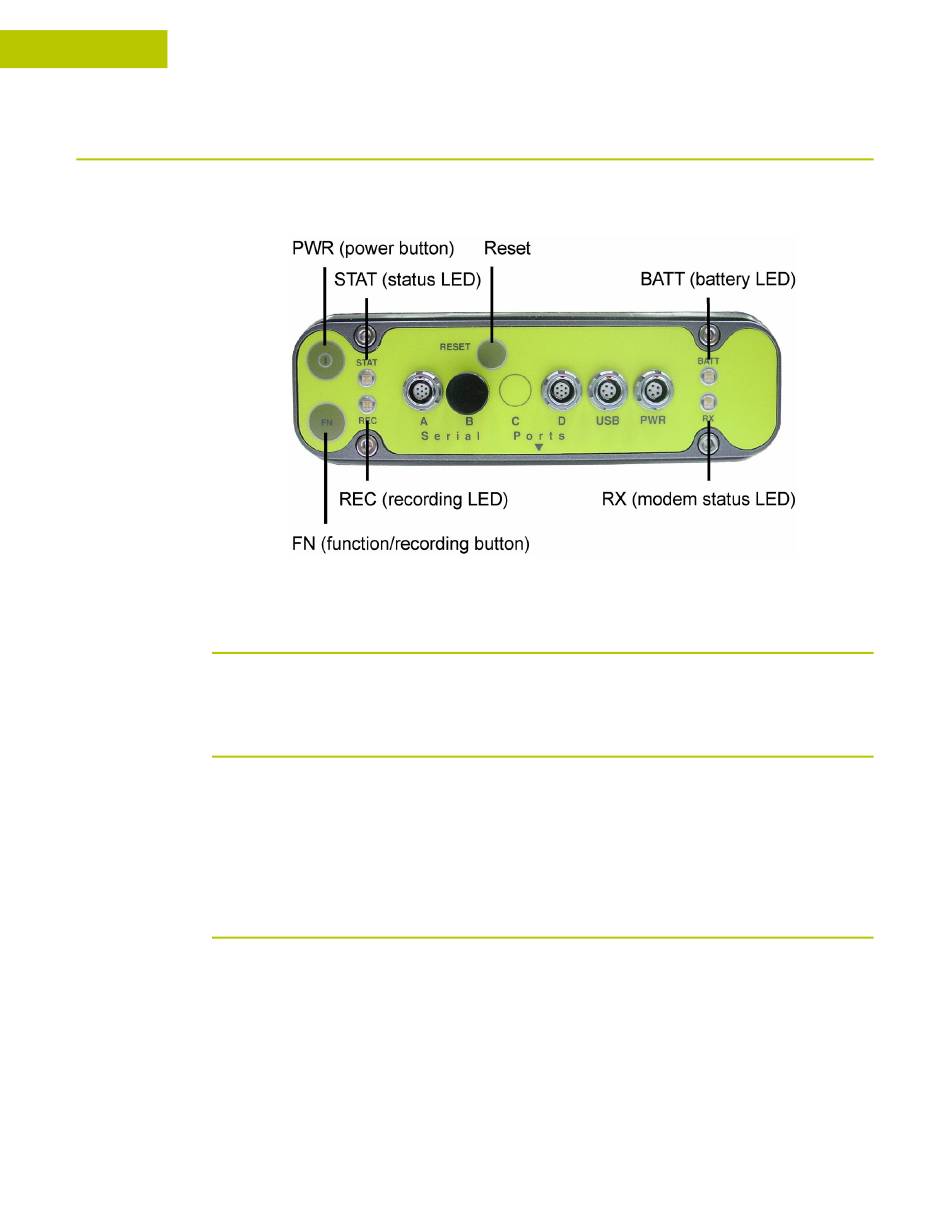

Figure 4-1. Maxor MinPad
