Javad Maxor User Manual page 67

•
The COM port and baud rate display in the lower left corner.
6.
7.
8.
•
•
•
www.javad.com
Firmware version – the current firmware version of the Bluetooth module.

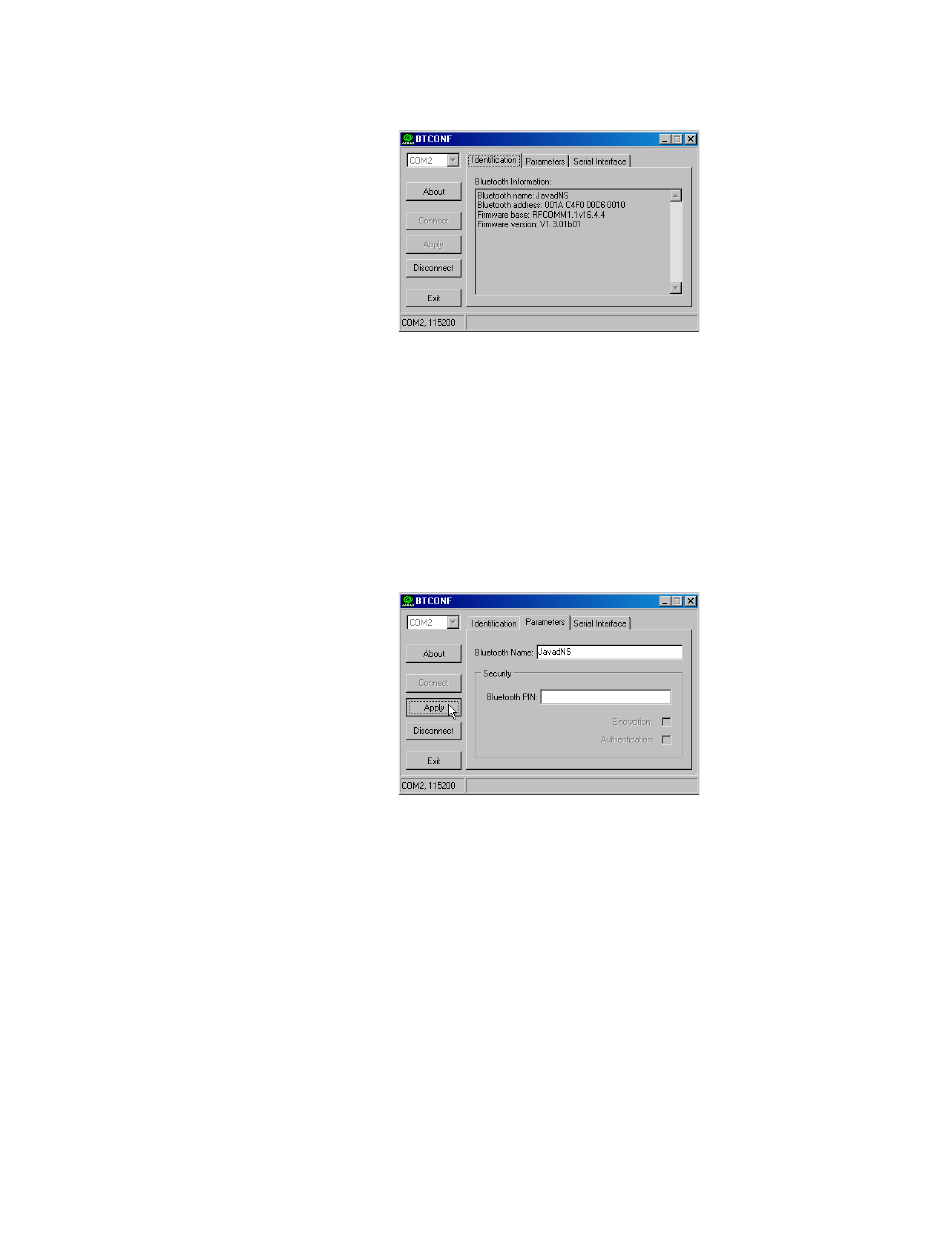

Figure 2-40. BTCONF Identification Tab
Click the Parameters tab (Figure 2-41). The Parameters tab sets identifying
and security information for your Bluetooth module. The security section
allows you to set data security and unauthorized access parameters for the
Bluetooth module.
Enter up to 14 characters to set a unique name for the Bluetooth module
(Figure 2-41), and click Apply.
Figure 2-41. BTCONF Parameters Tab
To set security parameters (Figure 2-42), enter and enable the following,
then click Apply:
Bluetooth PIN – enter up to 16 characters to specify a personal
identification number for the Bluetooth module.
Encryption – enable to have the Bluetooth module encrypt wirelessly sent
data. To read encrypted data, the user must have the same PIN used in the
device that sent the data.
Authentication – enable to require a PIN before two Bluetooth enabled
devices (such as, the receiver and a computer) can establish a
communication link. The two devices must use the same PIN.
C O N F I G U R A T I O N
Bluetooth Module Configuration
Maxor User's Manual 2-33
