Option Manager - Javad Maxor User Manual

O P E R A T I O N
4
Checking an OAF
The Options Manager screen displays (Figure 4-9) and contains the following
information:
• Option name – a name/description of the option.
• Current – the current status of the option.
• Purchased – if the option is purchased or not.
• Leased – if the option is leased or not.
• Expiration date – the date the option will be disabled, if applicable.
Since Options can be both purchased and leased, the "Current" status of the
option displays the currently effective value. Option values can be:
• -1 or "-----" – the firmware version does not support this option.
• 0 – the receiver option is disabled.
• positive integer – the option is enabled.
• yes or no – the option is either enabled or disabled.
When finished, click Exit on the Option Manager screen, then click File-
3.
>Disconnect to prevent conflicts with serial port management.
4-12 Maxor User's Manual

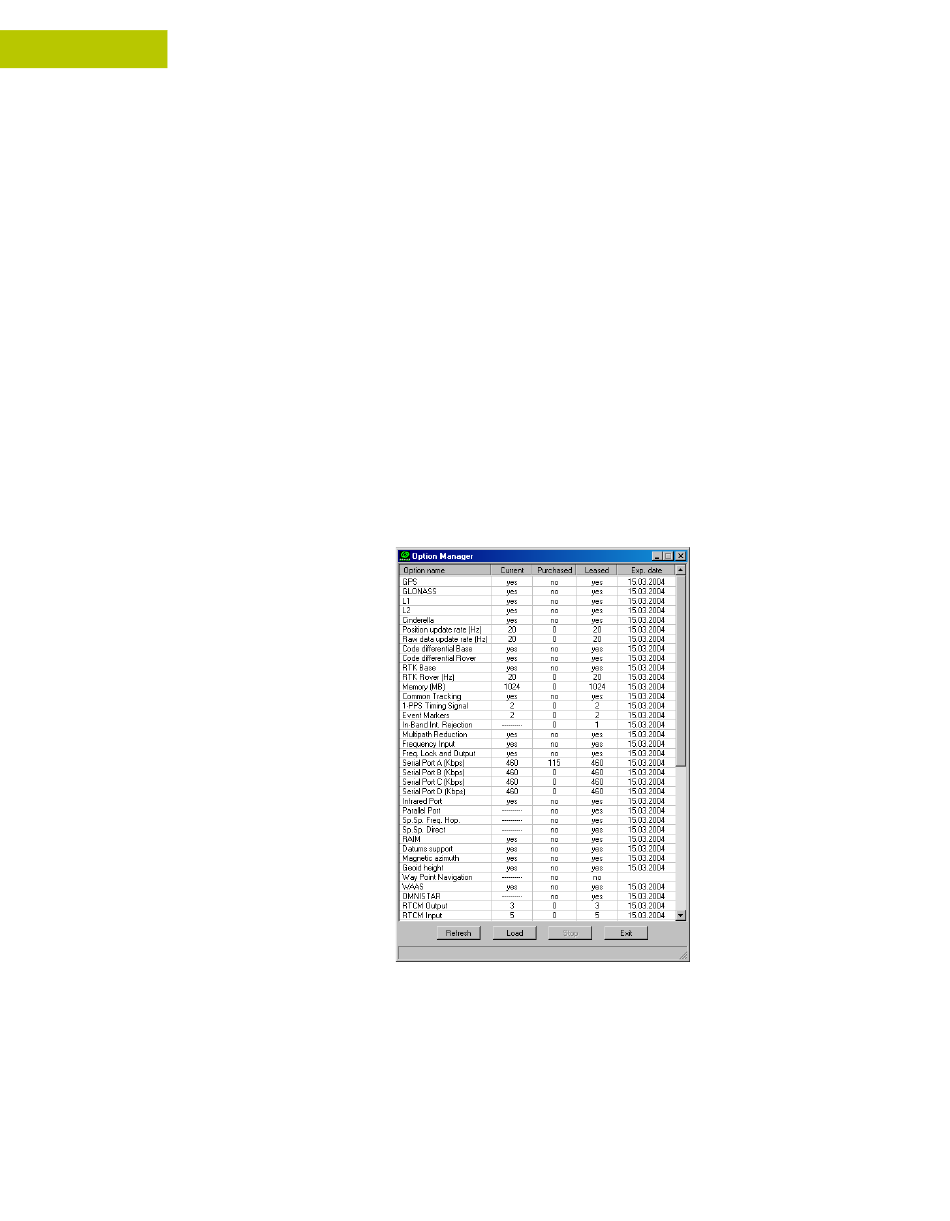

Figure 4-9. Option Manager
