Charging the Maxor

To charge the receiver internal batteries, take the following steps and refer to
Figure 2-1 on page 2-4:
• Plug the Receiver-to-SAE cable's 5-pin connector (p/n 14-008016-03) into
the power port of the receiver (labeled PWR).
• Connect the opposite end of this cable with the battery charger's SAE
connector.
• Plug the appropriate end of the power supply-to-outlet cable into the battery
charger.
• Plug the other end of this cable into an AC outlet.
• Press and hold the Reset key for about one second to ensure that the receiver
is in Normal mode for charging. The receiver will not charge in Zero Power
Mode (see "Zero Power Mode" on page 4-16 for more information).
• Turn off the receiver by pressing and holding the green power key for more
than one and less than four seconds (until both STAT and the REC LEDs turn
off).
• Leave overnight. Fully charging the batteries takes approximately seven
hours. The internal batteries cannot be overcharged.
Tip: To check the status of the internal batteries, view the
BATT LED on the receiver front panel.
www.javad.com
On Ports – displays the voltage output on pin one of all serial ports
connectors.

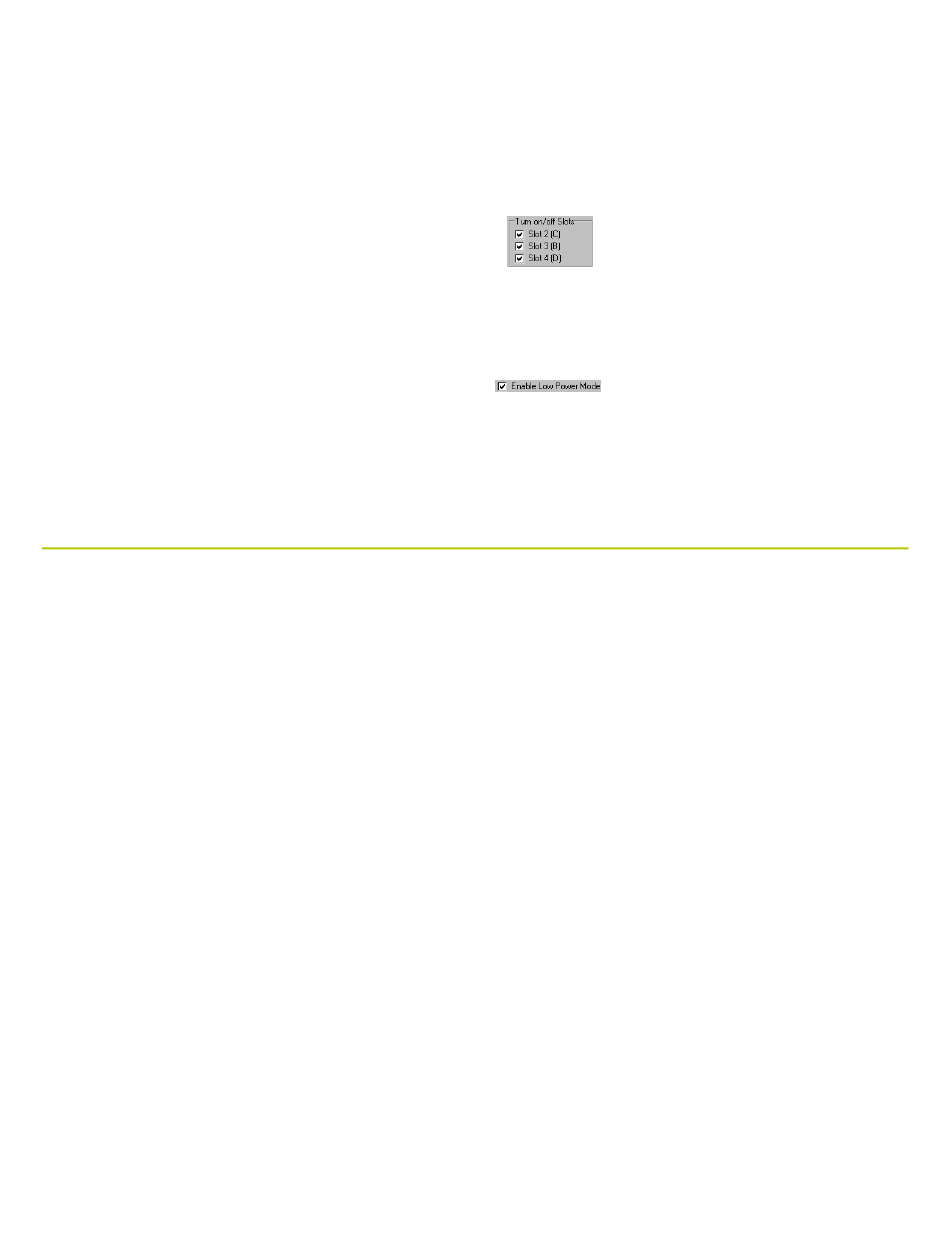

Select and check each of the Turn on/off Slots check boxes to enable the
corresponding internal slots (Figure 2-7).
Select and check the Enable Low Power Mode check box to put the
receiver's processor into low power consumption mode (Figure 2-8).
Figure 2-8. Activate Low Power Mode
Click Apply.
Figure 2-7. Enable Slots
C O N F I G U R A T I O N

Charging the Maxor

Maxor User's Manual 2-7
