External Components
The Maxor casing includes panels for antenna attachment, a user interface, a
power port, and ports for configuration.
Radome

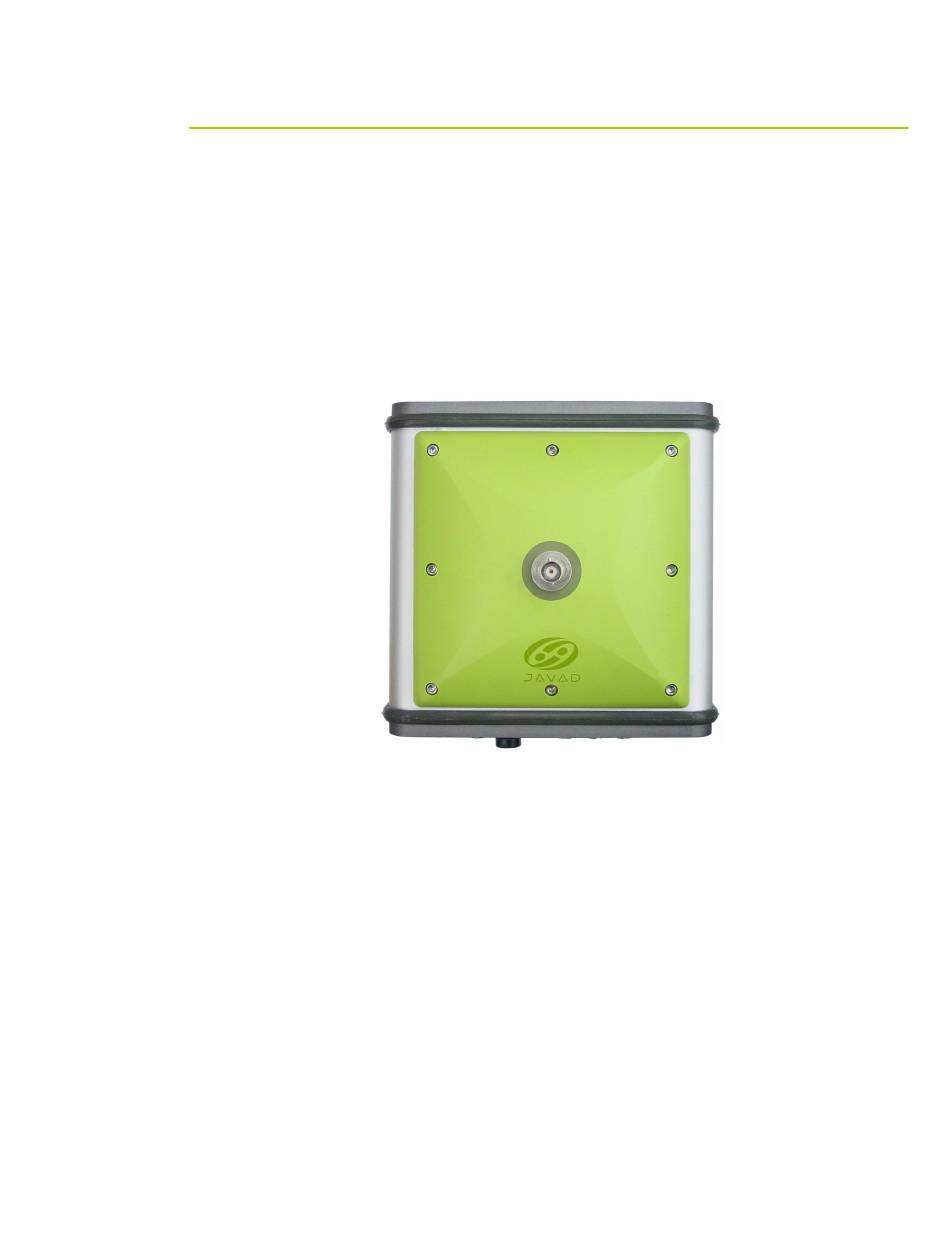

Figure 1-2 shows the radome components.
• Internal antenna – Location of GPS/GLONASS internal antenna.
• Modem antenna connector – Modem antenna connector used for internal RF
connection. This is a BNC female connector for Pacific Crest PDL (UHF) modems,
or a TNC female connector for GSM modems.
www.javad.com
Figure 1-2. Maxor Radome
I N T R O D U C T I O N
Getting to Know Your Maxor
Maxor User's Manual 1-11
