7. Click the Set all parameters to defaults button located at the bottom of the
8. On the Receiver Configuration screen, select the MinPad tab. Specify desired
9. Select the Positioning tab and set the Position Masks, Elevation mask parameter to
10. Select the Base tab and set the following parameters (Figure 3-11 on page 3-14):
•
•
www.javad.com
Receiver Configuration screen (Figure 3-9).

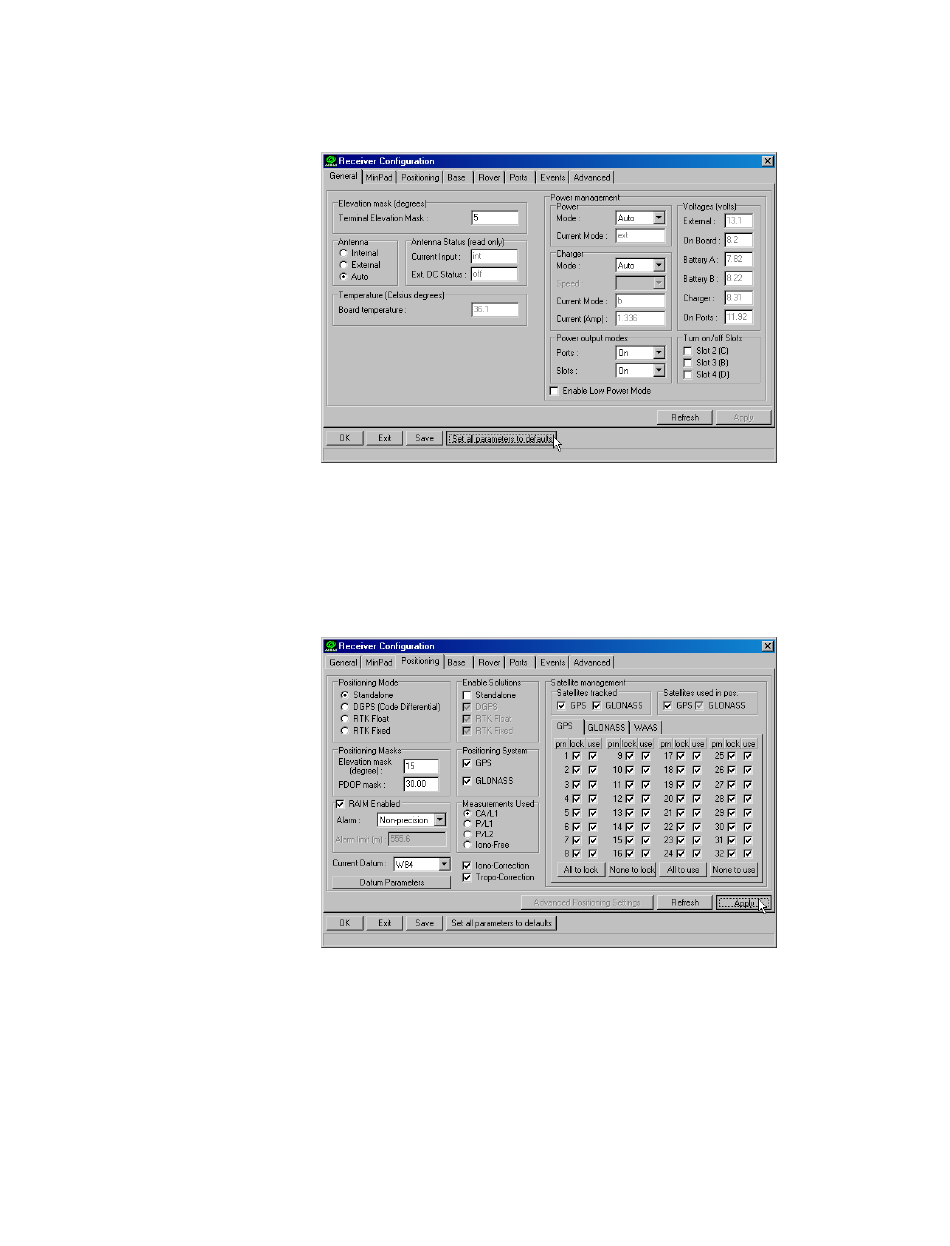

Figure 3-9. Set All Parameters to Defaults
settings. Refer to the PCView User's Manual for more information.
15 (Figure 3-10).
Figure 3-10. Receiver Configuration – Positioning
GPS/GLO at one time - enable
Antenna position - enter Lat, Lon, and Alt values. Do one of the following:
–If known, type in the values.
–Click Get from receiver.
S E T U P A N D S U R V E Y
Surveying with the Maxor
Maxor User's Manual 3-13
