A P P E N D I X
B
Specifications

Power Connector

The power connector (Figure B-1) is a sealed receptacle, 5 pin, ODU p/n G80F1C-
T05QF00-0000.
Table B-4 gives power connector specifications.

Serial RS-232C Connector

For ports A and D. The RS232 connectors (Figure B-2) are sealed receptacle, 7 pin,
ODU p/n G80F1C-T07QC00-0000.
B-10 Maxor User's Manual

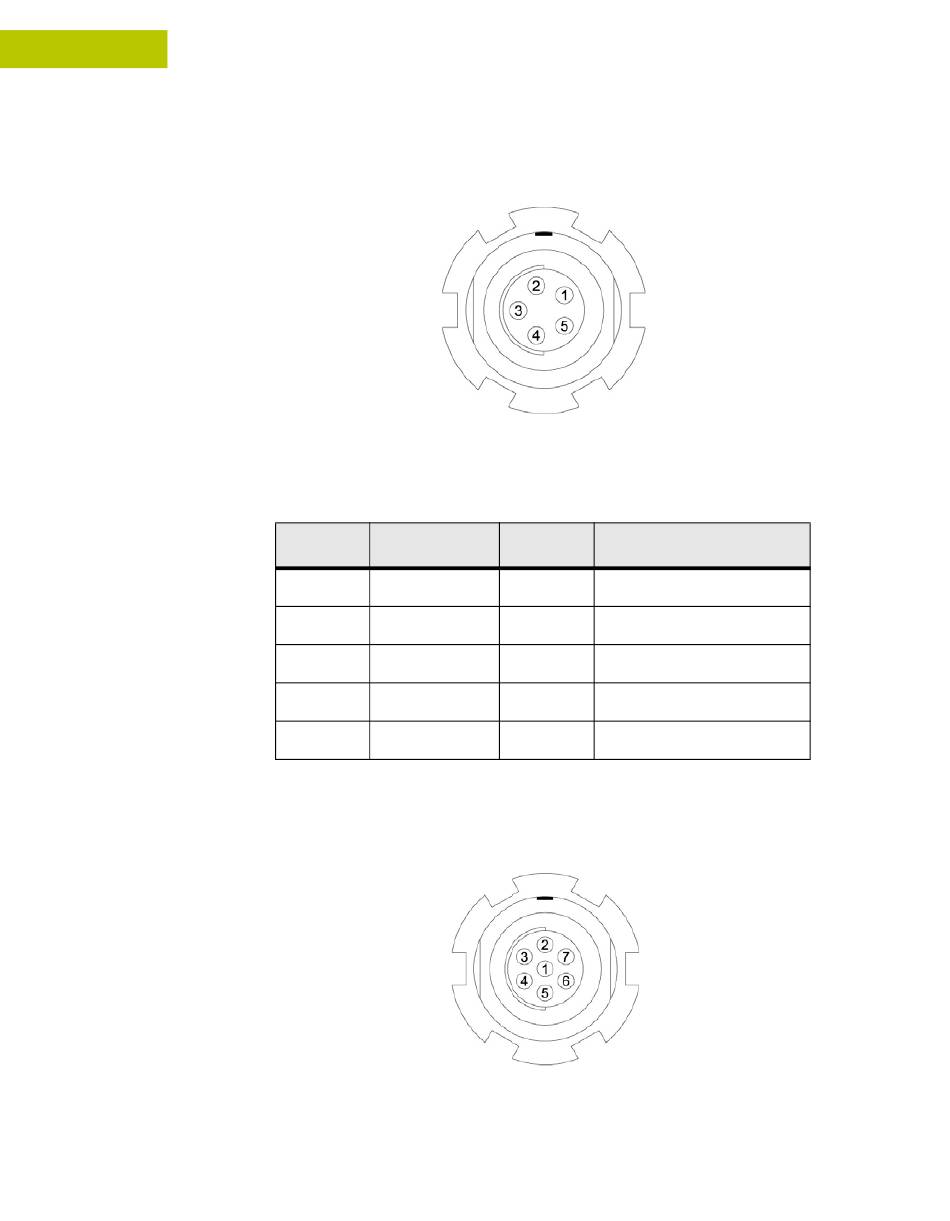

Figure B-1. Power Connector
Table B-4. Power Connector Specifications
Number Signal Name
1 Power_INP
2 Power_INP
3 Power_GND
4 Power_GND
5
Figure B-2. RS-232C Connector
Dir Details
P 6 to 28 volts DC input
P 6 to 28 volts DC input
P Ground, power return
P Ground, power return
Not used
