I N T R O D U C T I O N
1
Getting to Know Your Maxor

Bottom Panel

Figure 1-3 shows the Maxor's bottom panel components.
• Antenna Reference Point (ARP)
• The GPS/GLONASS external antenna connector (standard configuration)

Front Panel

Figure 1-4 shows the Maxor's front panel components.
1-12 Maxor User's Manual

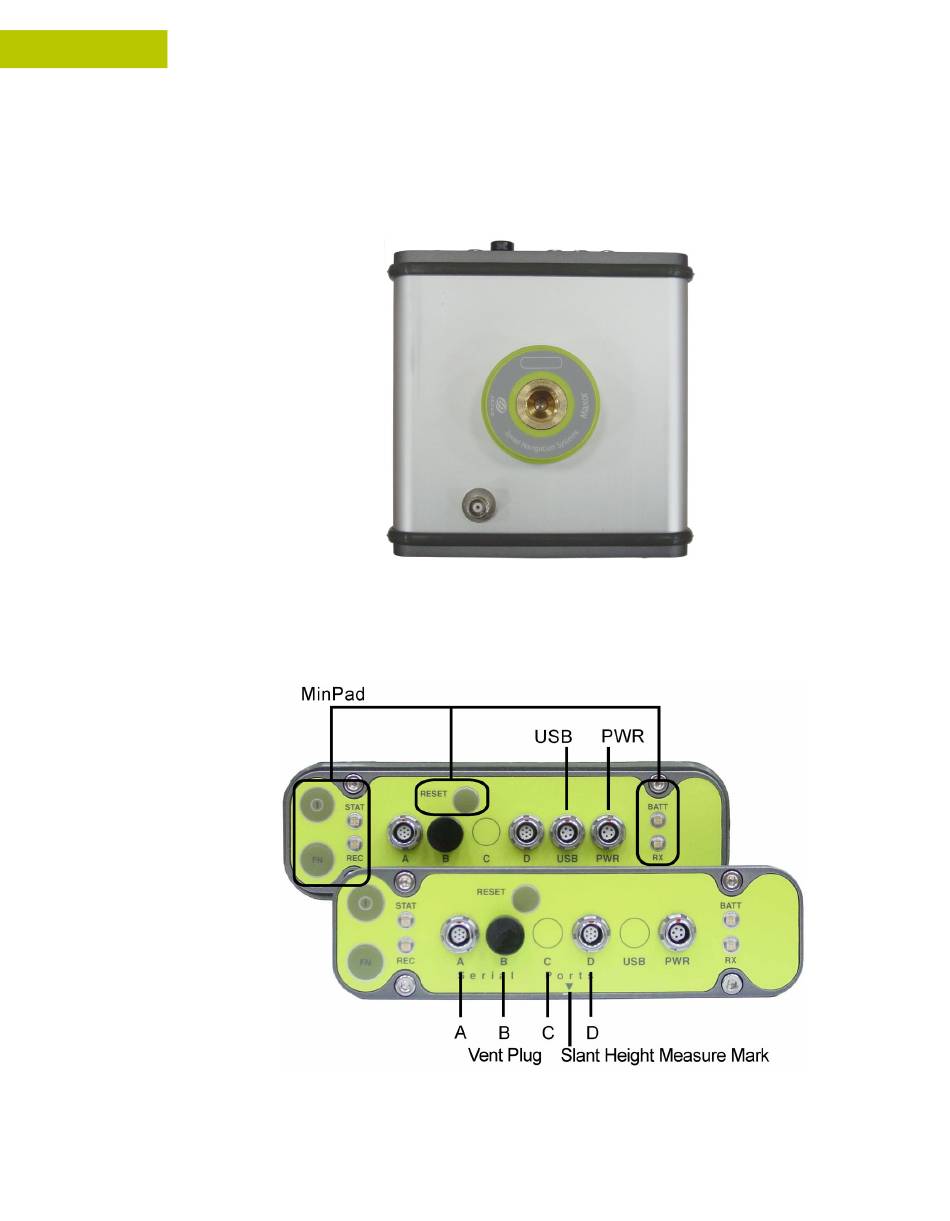

Figure 1-3. Maxor Bottom Panel
Figure 1-4. Maxor Front Panel (with and without USB)
