C O N F I G U R A T I O N
2
Powering the Maxor
Select the Power output modes Ports drop-down list to set power output on
5.
the serial ports (Figure 2-4).
•
•
•
Select the Power output modes Slots drop-down list to set power output on
6.
internal slots (Figure 2-5).
•
•
•
View the Voltages information (Figure 2-6).
7.
•
•
•
•
•
2-6 Maxor User's Manual

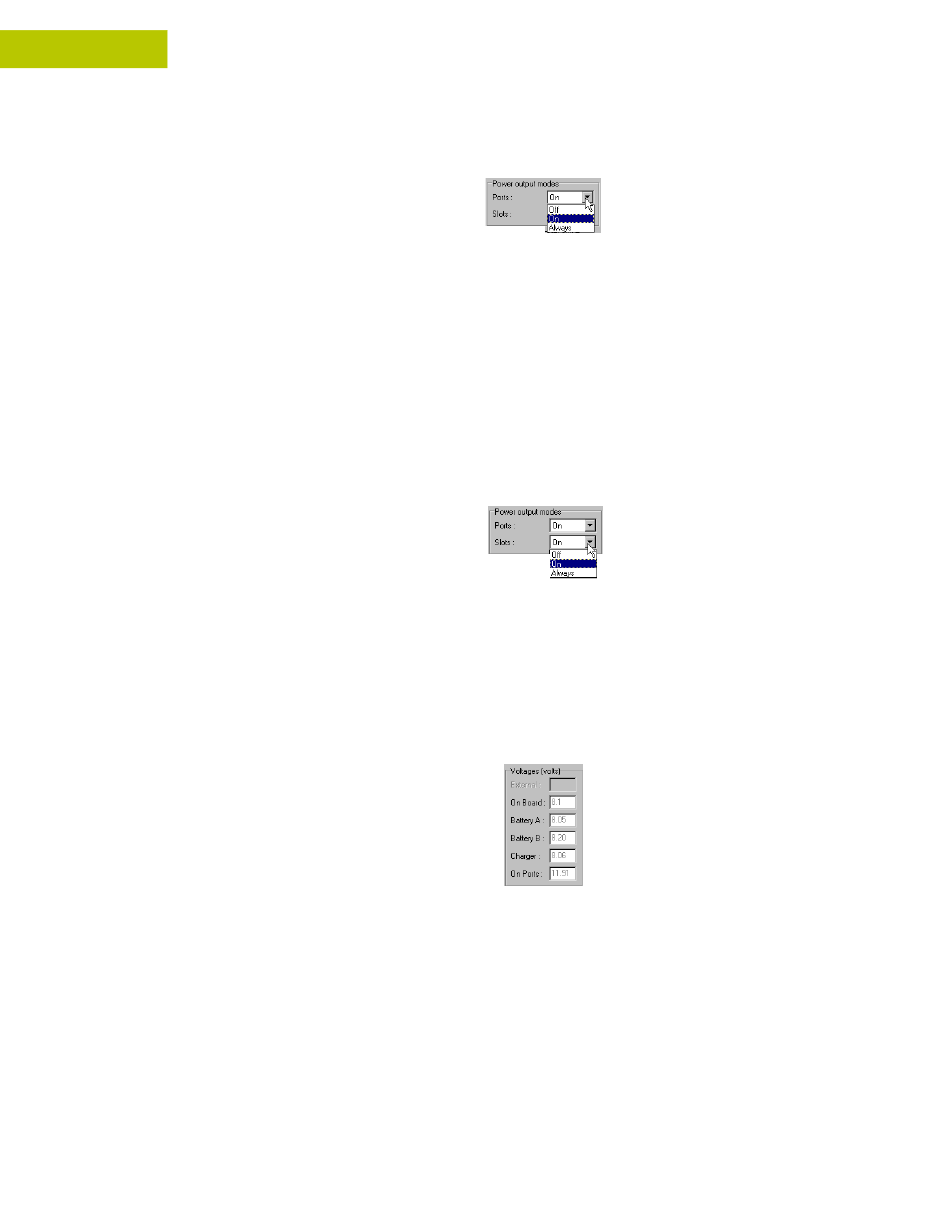

Figure 2-4. Select Power Output Modes – Ports
On – the power board delivers voltage on pin one of all serial port
connectors when the receiver is turned on. If the receiver is turned off,
there will not be any power on the ports.
Off – the power is absent, even if the receiver is on.
Always – the power board delivers voltage on pin one of all serial port
connectors, even if the receiver is off.
Figure 2-5. Select Power Output Modes – Slots
On – all slots have power if the receiver is turned on.
Off – internal slots do not have power, even if the receiver is turned on.
Always – internal slots have power, even if the receiver is turned off.
Figure 2-6. View Voltages Information
External – displays the external power supply's voltage.
On Board – displays the voltage drawn by the receiver board.
Battery A – displays the voltage of battery A.
Battery B – displays the voltage of battery B.
Charger – displays the charger's output voltage during battery charging.
