• Show the status of post-processing mode (static or dynamic) when
performing a Post-Processing Kinematic survey with the help of FN key
(REC LED).
• Show the status (high charge, intermediate charge, or low charge) of the
battery (BATT LED).
• Show the power source for the Maxor (BATT LED).
• Show the modem's status and if it receives signals (RX LED).
You use PCView to configure MinPad settings. Refer to the PCView User's
Manual for all possible MinPad configurations.
Connect your receiver and computer. See "Connecting the Maxor and a
1.
Computer" for this procedure.
On the Connection Parameters dialog box, enable RTS/CTS handshaking
2.
(Figure 2-19) and then click Connect.
Click Configuration->Receiver (Figure 2-20).
3.
Click the MinPad tab, set the following parameters and click Apply
4.
(Figure 2-21). See the following pages for descriptions of these parameters.
•
•
•
•
2-16 Maxor User's Manual

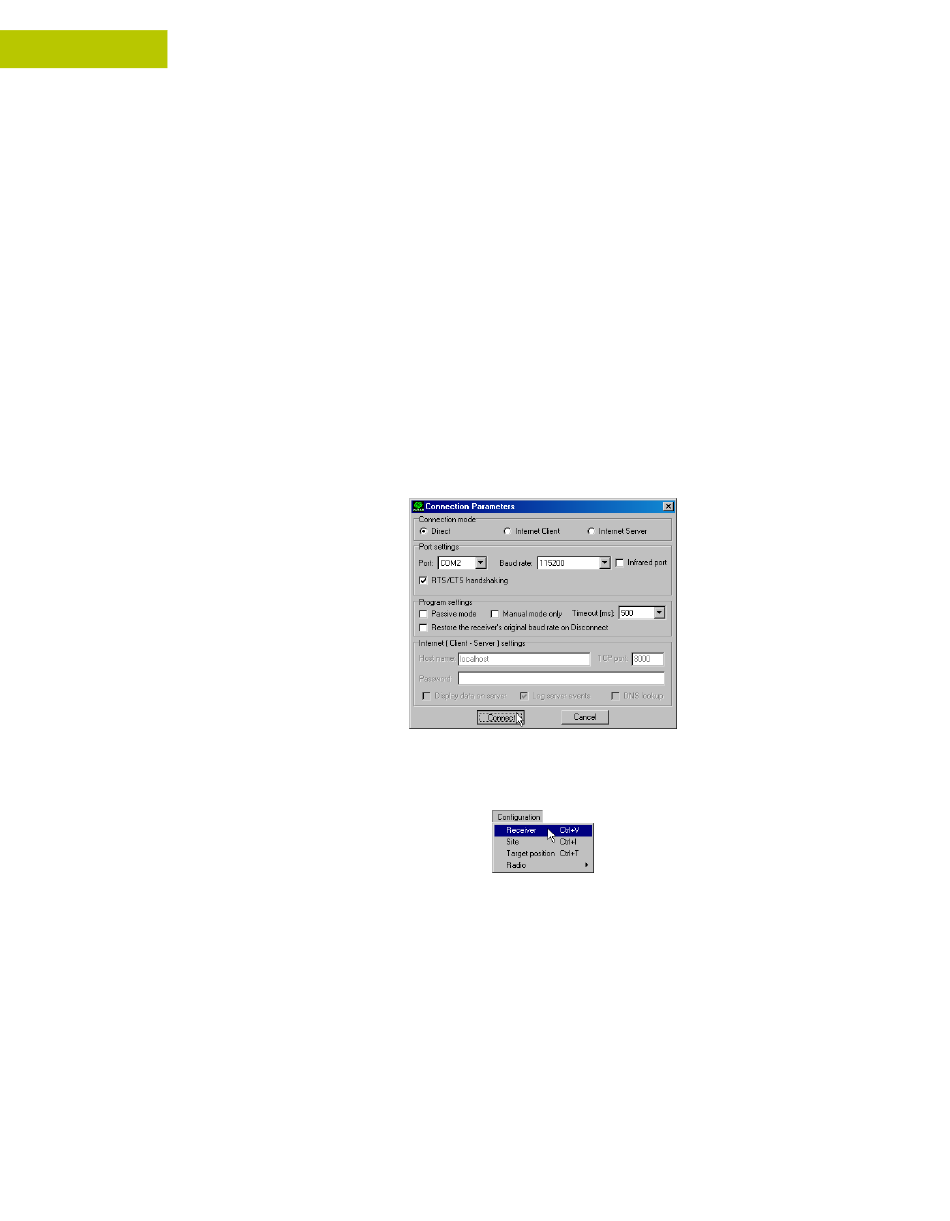

Figure 2-19. Connection Parameters – RTS/CTS Handshaking
Figure 2-20. Configuration->Receiver
Recording interval on page 2-17
Elevation mask for log file on page 2-17
File name prefix on page 2-17
Always append to the file on page 2-18
