Table B-5 gives the RS-232C cable connector specifications.

USB Connector

The USB connector is a sealed receptacle, 5 pin, ODU p/n G80F1C-T05QF00-0000
(Figure B-3).
Table B-6 gives the USB connector specifications.
www.javad.com
Table B-5. RS-232C Connector Specifications
Number Signal Name
1 Power_OUT
2 GND
3 CTS
4 RTS
5 RXD
6 TXD
7
Table B-6. USB Connector Specifications
Number Signal Name
1
2 USB_PWR
3 GND
Dir Details
P Power Output (supplied voltage)
- Signal ground
I Clear to send
O Request to send
I Receive data
O Transmit data
Not used

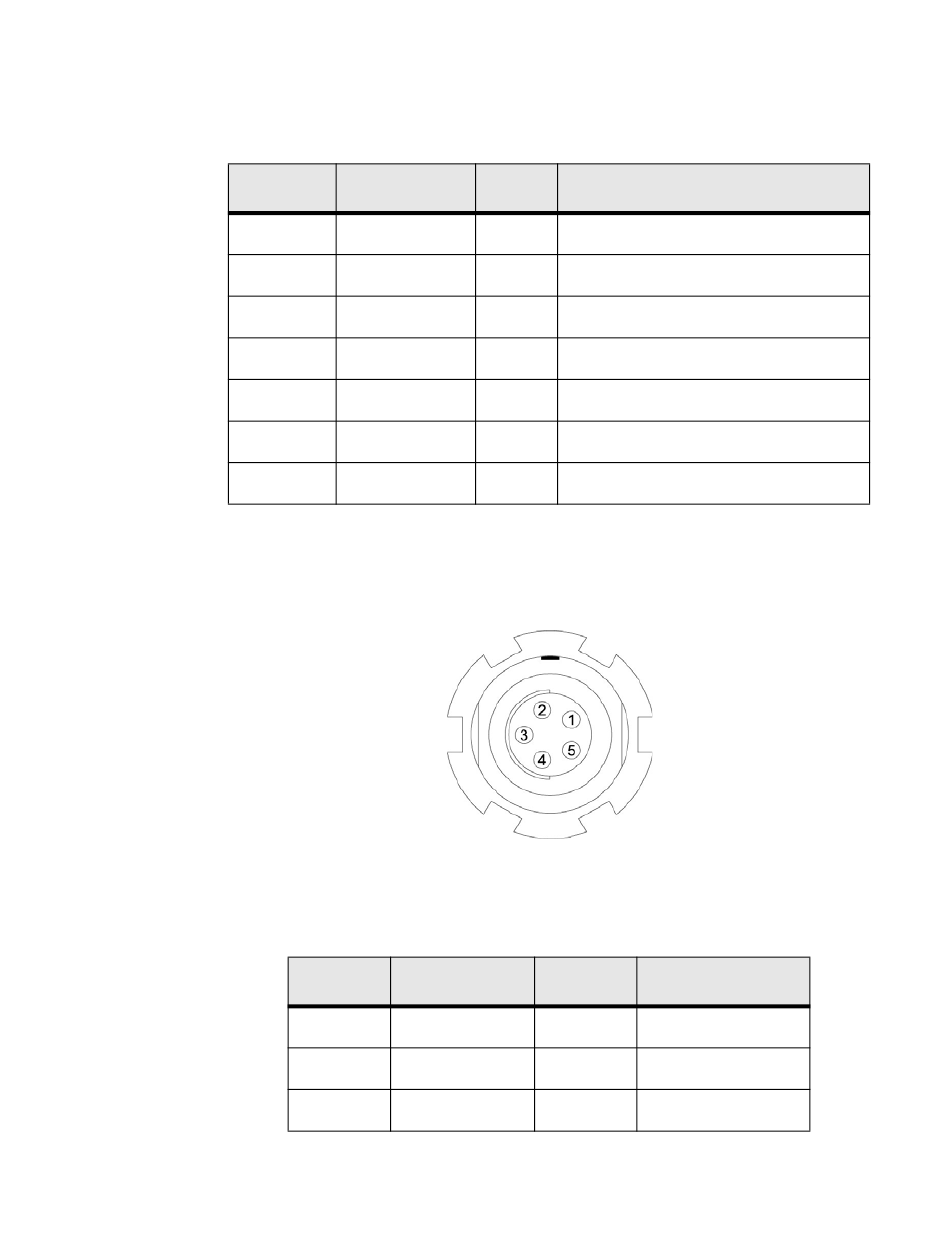

Figure B-3. USB Connector
Dir
P
-
A P P E N D I X
Specifications
Details
Not used
Bus power
Ground
Maxor User's Manual B-11
