Description and Operation
Getting Acquainted

MinPad

2.1. MinPad
The MinPad is the receiver's minimum interface used to display and control data input and output
(Figure 3).
BAT
On/Off
The BAT (battery) LED displays the power status for battery and receiver's mode:
• No light - receiver is off/ no external power/sleep mode is off
• The LED color indicates the battery status:
• Green – full.
• Yellow – half.
• Red – almost empty.
The table below summarizes the BAT LED pattern:
External
power
No
No
No
No
Yes
Yes
Yes
Yes
1. YGR - Yellow-green-red blinking means the LED blinks yellow, green, and red three times in a sec-
ond.
2. LED blinks 1 sec every 1 sec and the LED color indicates the battery status (see above).
16
MOD SAT
BT POS
REC
FN

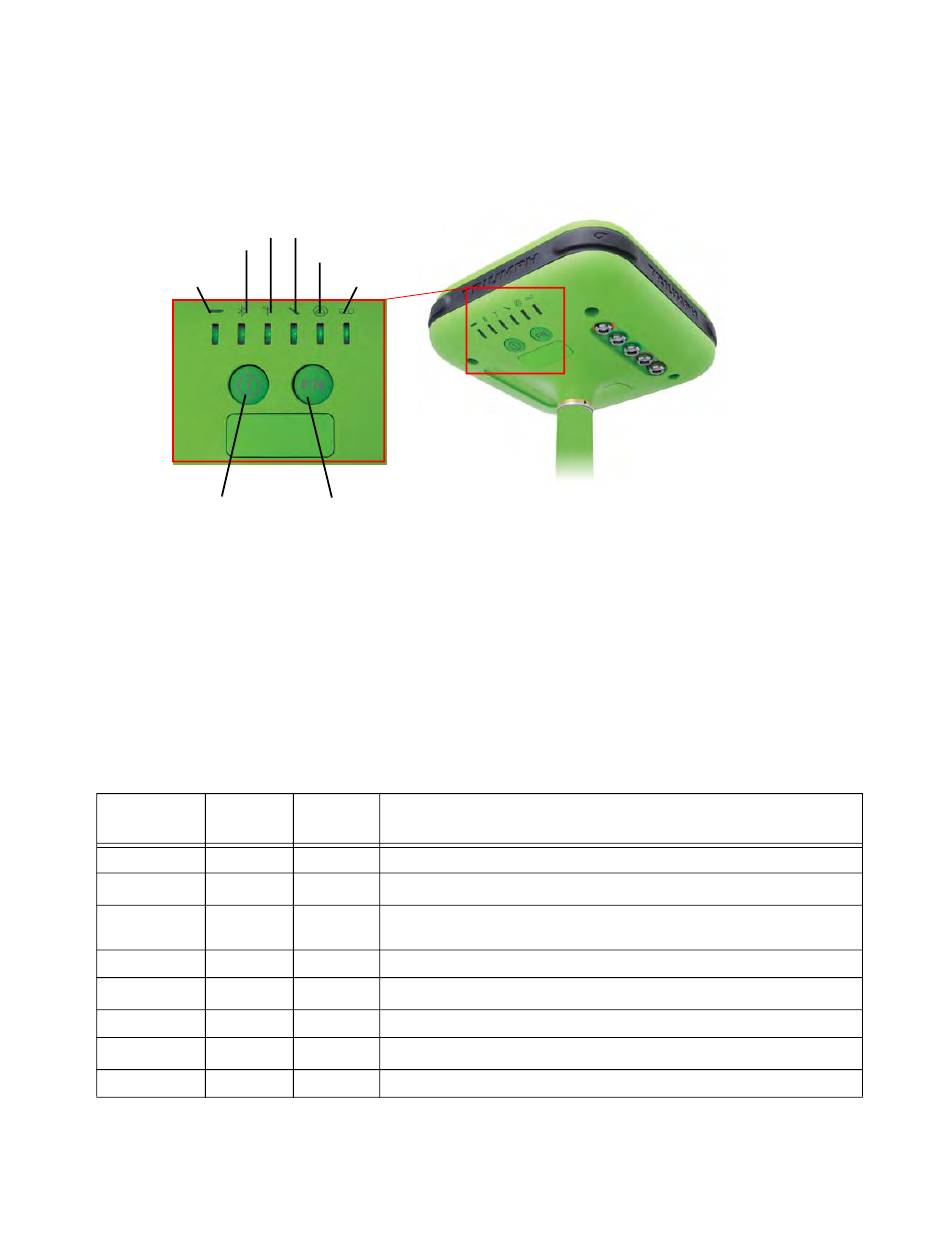

Figure 3. TRIUMPH-1 MinPad
Receiver Sleep
ON mode
No No No light
No Yes
YGR
Yes No LED solid according to the battery (green, yellow or red). See
battery status indication above
Yes Yes YGR rapid blinking every 10 sec, 8 sec of solid according to battery
No No
LED blinks
No Yes YGR rapid blinking every 10 sec, 8 sec of blink according to battery
Yes No
LED blinks
Yes Yes YGR rapid blinking every 10 sec, 8 sec of blink according to battery
Table 1. BAT LED Pattern
1
rapid blinking every 10 sec, 8 sec of off gaps
2
according to the battery
2
according to the battery
LED Pattern
