Collecting Almanacs - Javad Maxor User Manual

C O N F I G U R A T I O N
2

Collecting Almanacs

Notice If you do not need security settings, leave these
parameters disabled.
Click the Serial Interface tab (Figure 2-43). Enable Echo to display
9.
Bluetooth module replies and corresponding commands on the computer
terminal. If needed, click Apply.
Click Disconnect then Exit to quit BTCONF.
10.

Collecting Almanacs

Each satellite broadcasts a message (almanac) which gives the approximate
orbit for itself and all other satellites. If the receiver has an almanac, you can
considerably reduce the time needed to search for and lock on to satellite
signals.
The receiver regularly updates the almanac and stores the most recent almanac
in its Non-Volatile Random Access Memory (NVRAM).
Set up the receiver (connect the external antenna if needed) in a location
1.
with a clear view of the sky.
2-34 Maxor User's Manual

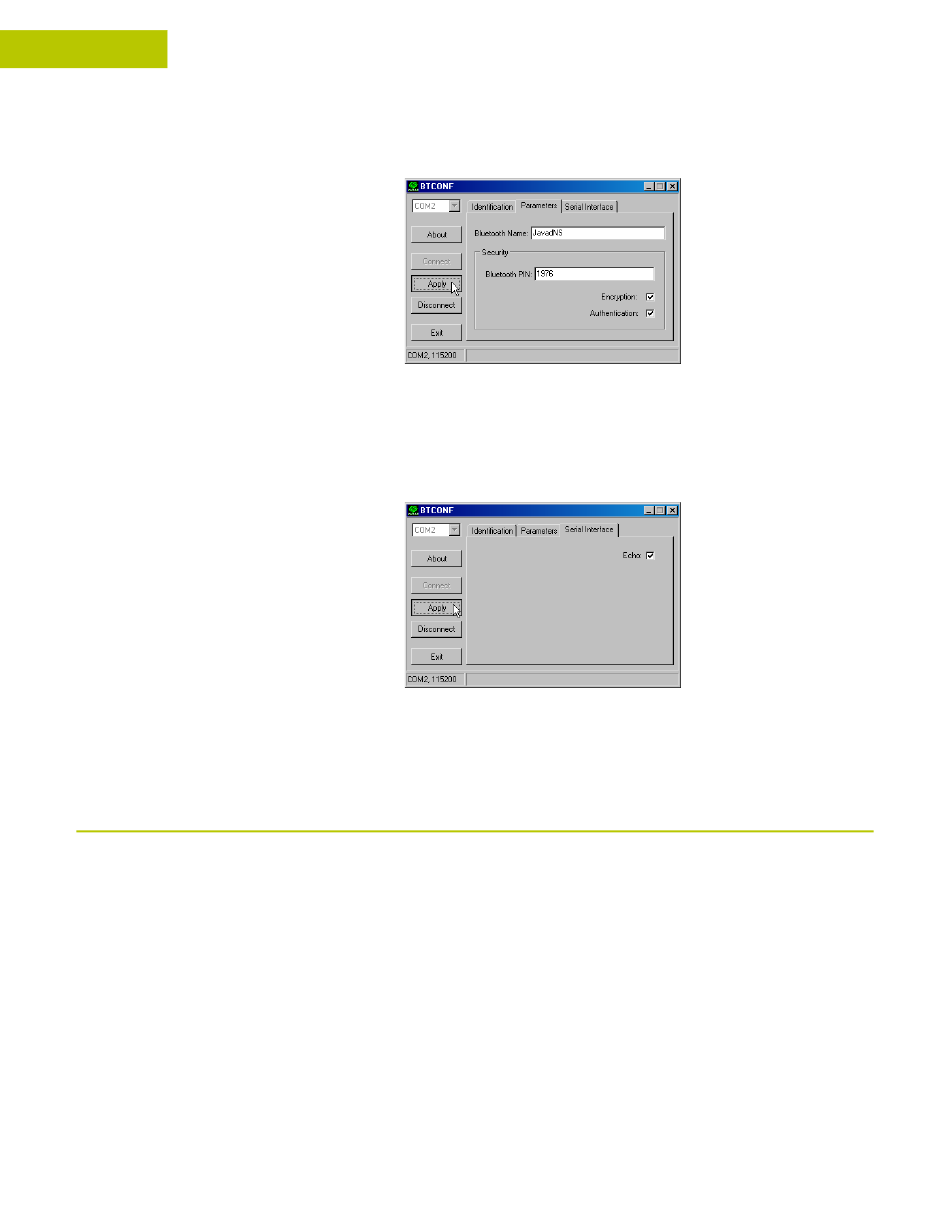

Figure 2-42. BTCONF Security Parameters
Figure 2-43. BTCONF Serial Interface Tab
