GETTING ACQUAINTED

The TRIUMPH-1M receiver's advanced design re-
duces the number of cable required for operation,
allowing you to survey more reliably and efficient-
ly. The casing allocates space for two rechargeable
batteries, SIM card and SD card slots, a Bluetooth®
wireless technology module, a multi-system receiver
board, and a radio modem.
3
2

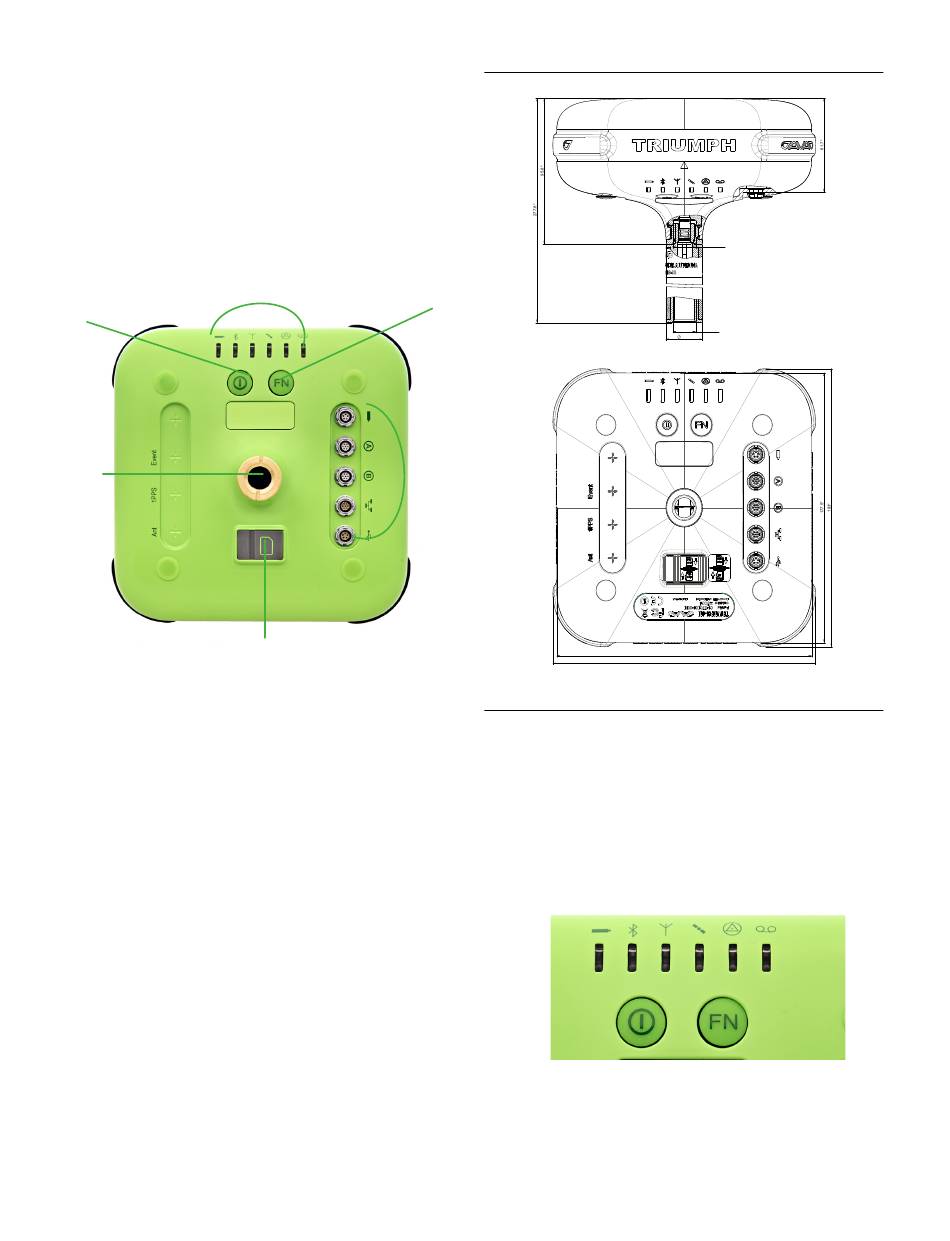

Figure 2.
1. SIM-card slot
2. Mounting
3. On/Off button
4. LEDs
5. FN button
6. Connectors
www.javad.com
4
5
6
1
TRIUMPH-1M
Figure 3.

MINPAD

The MinPad is the receiver's minimum interface
used to display and control data input and output.
Figure 4.
The BAT (battery) LED displays the power status for
battery and receiver's mode:
• No light - receiver is off/ no external power/sleep
mode is off
5/8-11*
5/8-11*
25.4*
177.5*
1
183*
Dimensions in mm
TRIUMPH-1М MinPad
