The Receiver Configuration dialog box displays (Figure 2-14).
1.
•
•
•
If your jobsite is in an area that has obstructions (buildings, trees, etc.), and/or
the antenna location is near reflective objects, configure the receiver to reduce
errors from these sources.
www.javad.com

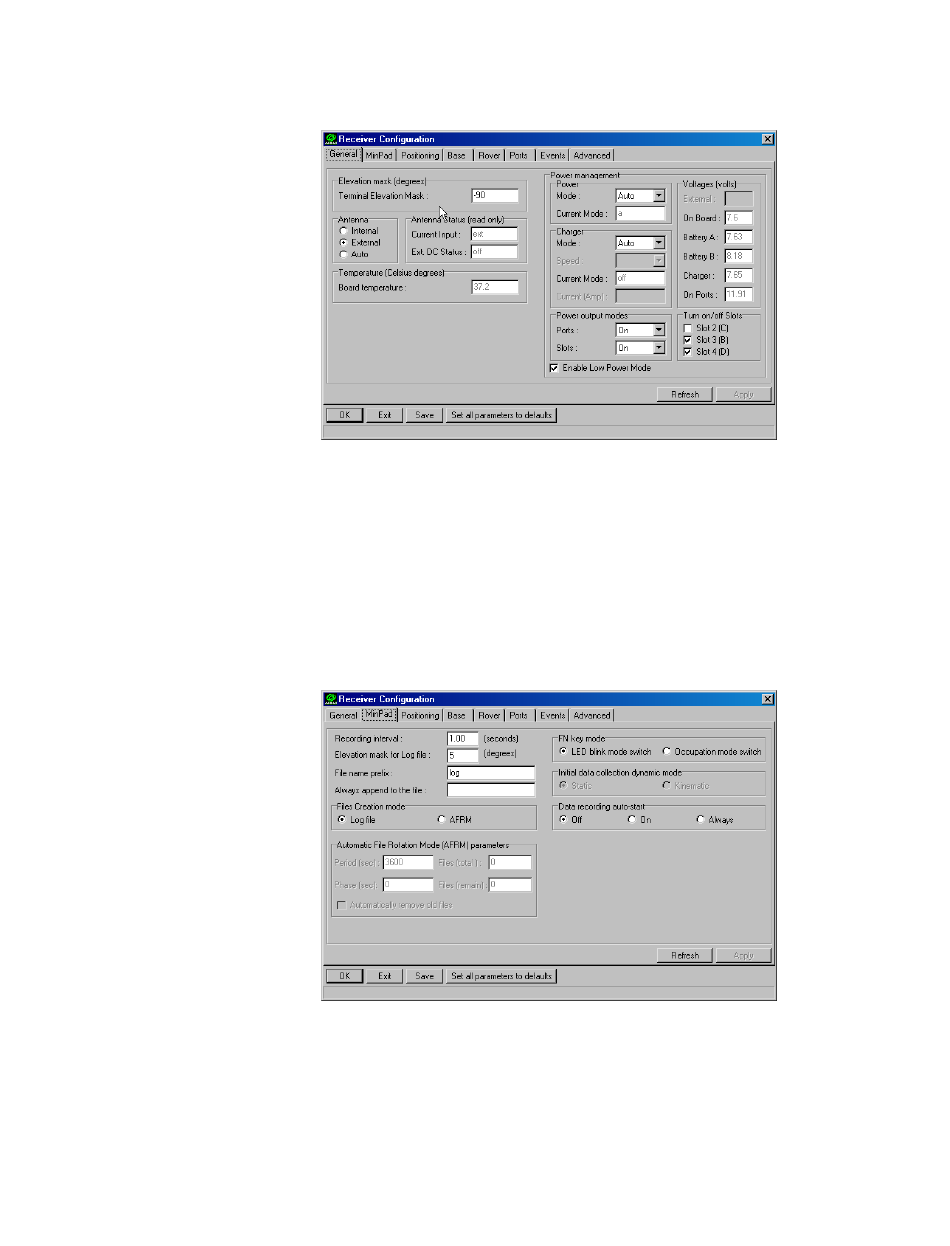

Figure 2-14. Receiver Configuration
Click the MinPad tab, configure the following settings, and click Apply
(Figure 2-15).
Set the Recording interval in seconds.
Set the Elevation mask for Log file in degrees.
Enter the File name prefix. Use the last three digits of the receiver serial
number.The receiver's serial number is on the back panel of the receiver.
Figure 2-15. Receiver Configuration – MinPad Tab
C O N F I G U R A T I O N
Maxor Configuration
Maxor User's Manual 2-13
