CDM-710 Broadcast Satellite Modem
Front Panel Operation

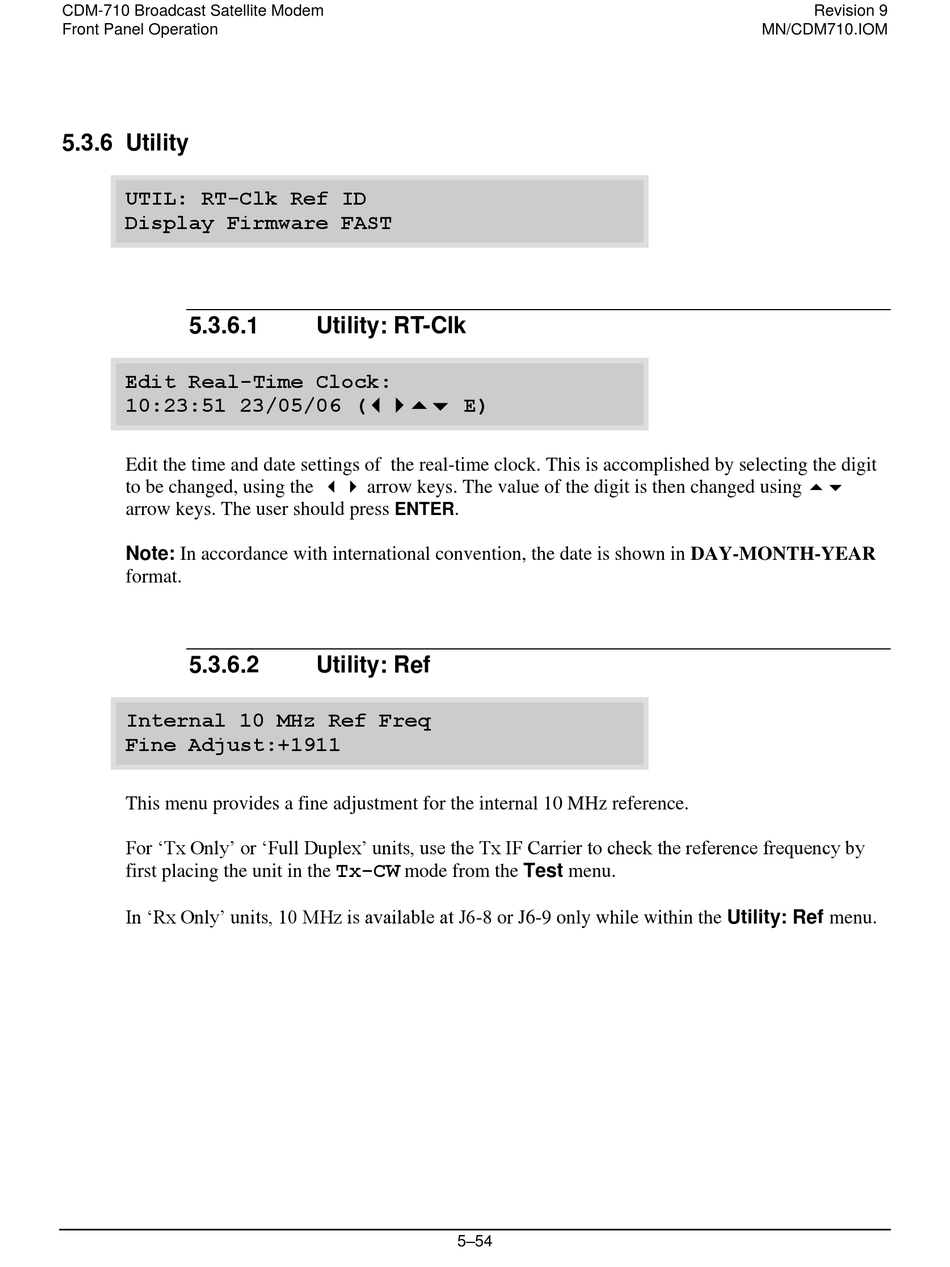

5.3.6 Utility

UTIL: RT-Clk Ref ID
Display Firmware FAST
5.3.6.1
Edit Real-Time Clock:
10:23:51 23/05/06 ( E)
Edit the time and date settings of the real-time clock. This is accomplished by selecting the digit
to be changed, using the  arrow keys. The value of the digit is then changed using 
arrow keys. The user should press
Note: In accordance with international convention, the date is shown in DAY-MONTH-YEAR
format.
5.3.6.2
Internal 10 MHz Ref Freq
Fine Adjust:+1911
This menu provides a fine adjustment for the internal 10 MHz reference.
For „Tx Only‟ or „Full Duplex‟ units, use the Tx IF Carrier to check the reference frequency by
first placing the unit in the
In „Rx Only‟ units, 10 MHz is available at J6-8 or J6-9 only while within the Utility: Ref menu.

Utility: RT-Clk

.
ENTER

Utility: Ref

Tx-CW
mode from the Test menu.
5–54
Revision 9
MN/CDM710.IOM
