Utility Connectors

Note that the pinout for the DB9 utility connector is NOT the same for the SLM-5650C and the
SLM-5650C-ODU units.

3.4.1 SLM-5650C Remote Connector (DB9)

The DB9 connector is not a standard RS-232 serial port pinout.
Pin #
7
3
8
1
6
2
4
9
5
External Connectors and Pinouts
This is a female Type 'D' 9-pin subminiature (DB9) connector that serves multi-
purpose roles. It provides RS-232 communications for a remote terminal, it
provides a means to monitor the real time I and Q samples from the demodulator
(constellation monitor), and it provides a receive signal strength indicator that can
be used to aid in peaking an antenna.

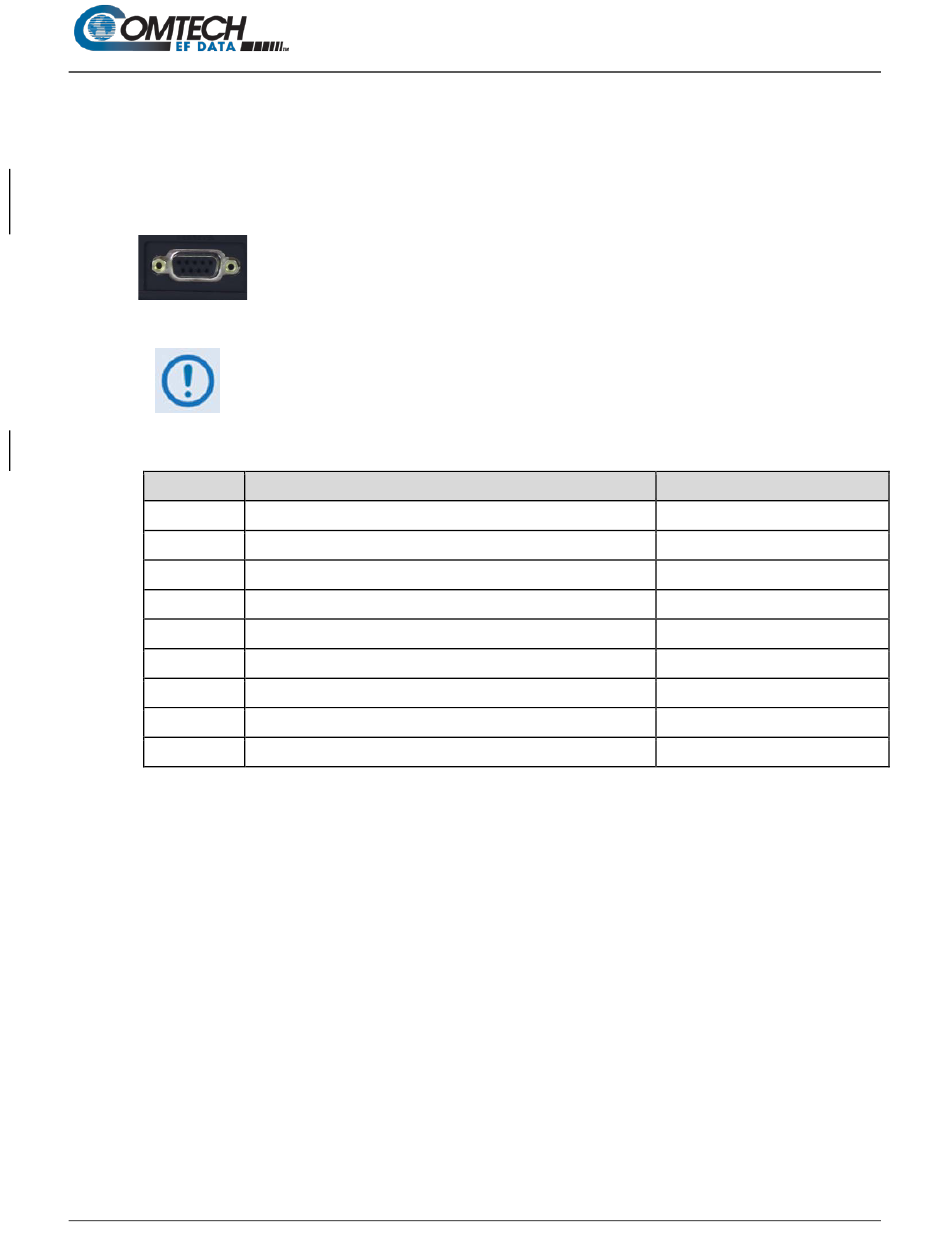

Table 3-5. SLM-5650C Remote Connector (DB-9F) Pinout

Signal Function
Not Connected
Receive Data (RS232 input)
Receive I Channel Constellation Monitor
GROUND
Not Connected
Transmit Data (RS232 output)
Receive Q Channel Constellation Monitor
Not Connected
AGC Monitor (0 to 5V)
SLM-5650C / SLM-5650C-ODU Satellite Modem
3–6
Revision 1
Name
NC
RD
RXI_MON
GND
NC
TD
RXQ_MON
NC
AGC_MON_OUT
