1000 Base-T Ethernet (Gbe) Interface Card Removal And Installation; Figure 11-3. Cdi-70 1000 Base-T Ethernet (Gbe) Interface Card - Comtech EF Data CDM-710 Installation And Operation Manual

CDM-710 Broadcast Satellite Modem
1000 Base-T (GbE) Interface
11.6 CDI-70 1000 Base-T Ethernet (GbE) Interface Card Removal and
Installation
WARNING

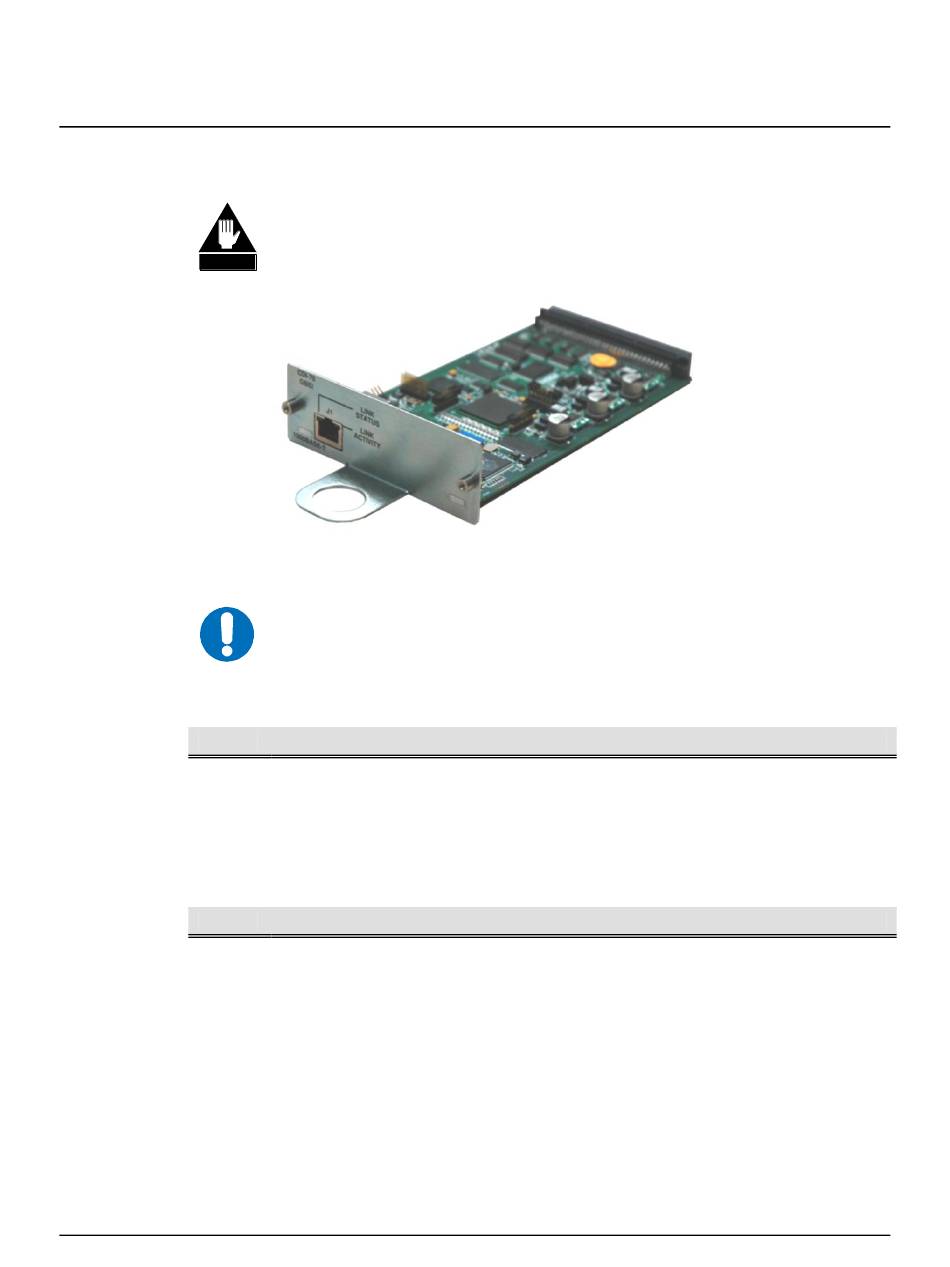

Figure 11-3. CDI-70 1000 Base-T Ethernet (GbE) Interface Card

IMPORTANT
of the CDI-70 Interface Card:
Steps
1
2
3
Installation of the CDI-70 Interface Card:
Steps
1
2
3
4
Ensure the unit is in a Power Off mode. Serious injury or
damage to the equipment could result.
CDI-70 Interface Card can be located in Slot 1 or Slot 2.
Procedures
Disconnect the RJ-45 cable from the interface card.
Remove the two screws securing the interface card.
Pull out the interface card.
Procedures
Insert the CDI-70 Interface Card into the desired slot.
Ensure that the interface card is secured to the internal card.
Secure the CDI-70 using two screws.
Connect the RJ-45 cable to the interface card.
11–9
Revision 9
MN/CDM710.IOM
Removal
