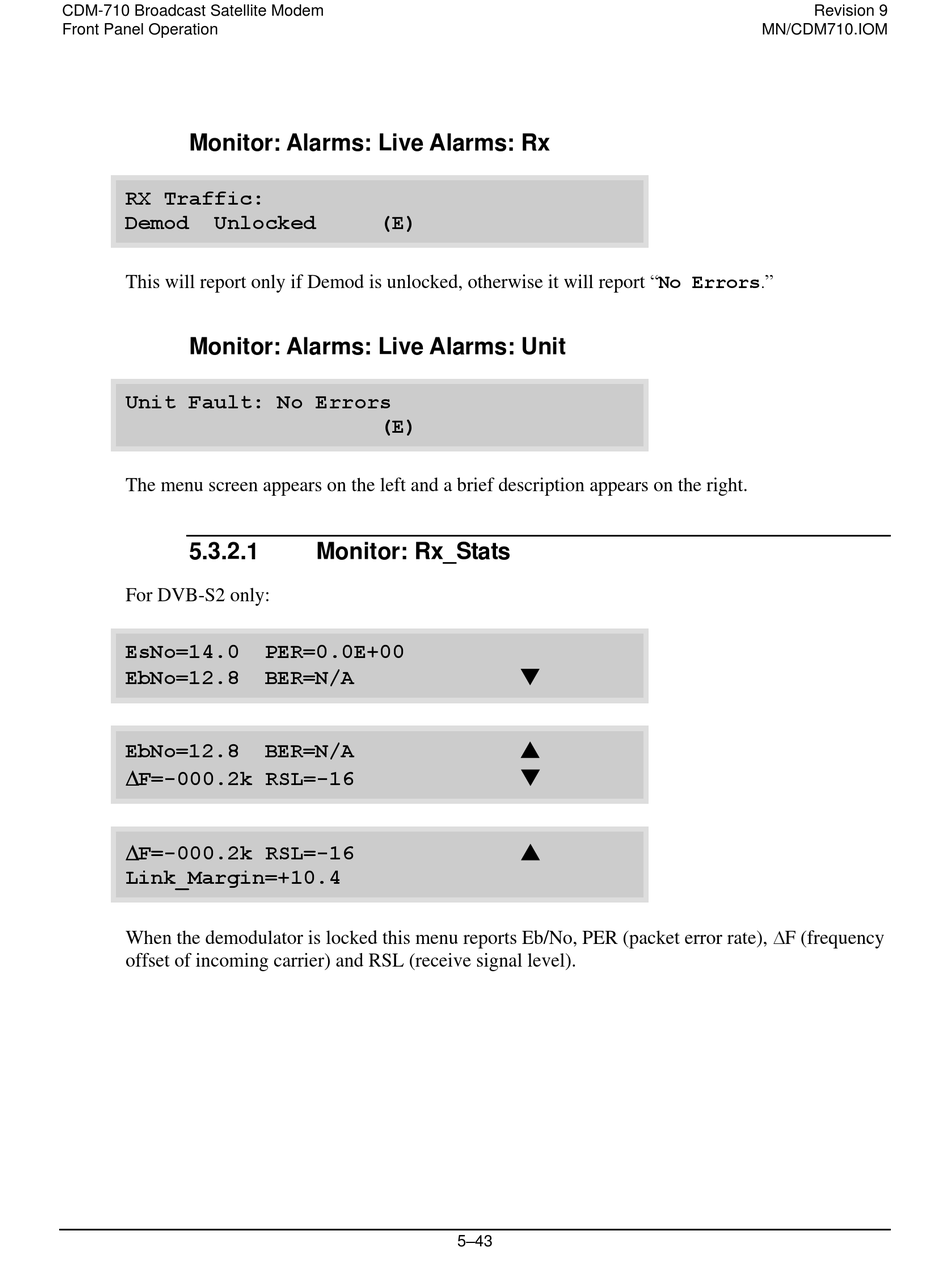

CDM-710 Broadcast Satellite Modem
Front Panel Operation

Monitor: Alarms: Live Alarms: Rx

RX Traffic:
Demod Unlocked
This will report only if Demod is unlocked, otherwise it will report "No Errors."

Monitor: Alarms: Live Alarms: Unit

Unit Fault: No Errors
The menu screen appears on the left and a brief description appears on the right.
5.3.2.1
For DVB-S2 only:
EsNo=14.0
EbNo=12.8
EbNo=12.8
F=-000.2k RSL=-16
F=-000.2k RSL=-16
Link_Margin=+10.4
When the demodulator is locked this menu reports Eb/No, PER (packet error rate), F (frequency
offset of incoming carrier) and RSL (receive signal level).
(E)
(E)

Monitor: Rx_Stats

PER=0.0E+00
BER=N/A
BER=N/A




5–43
Revision 9
MN/CDM710.IOM
