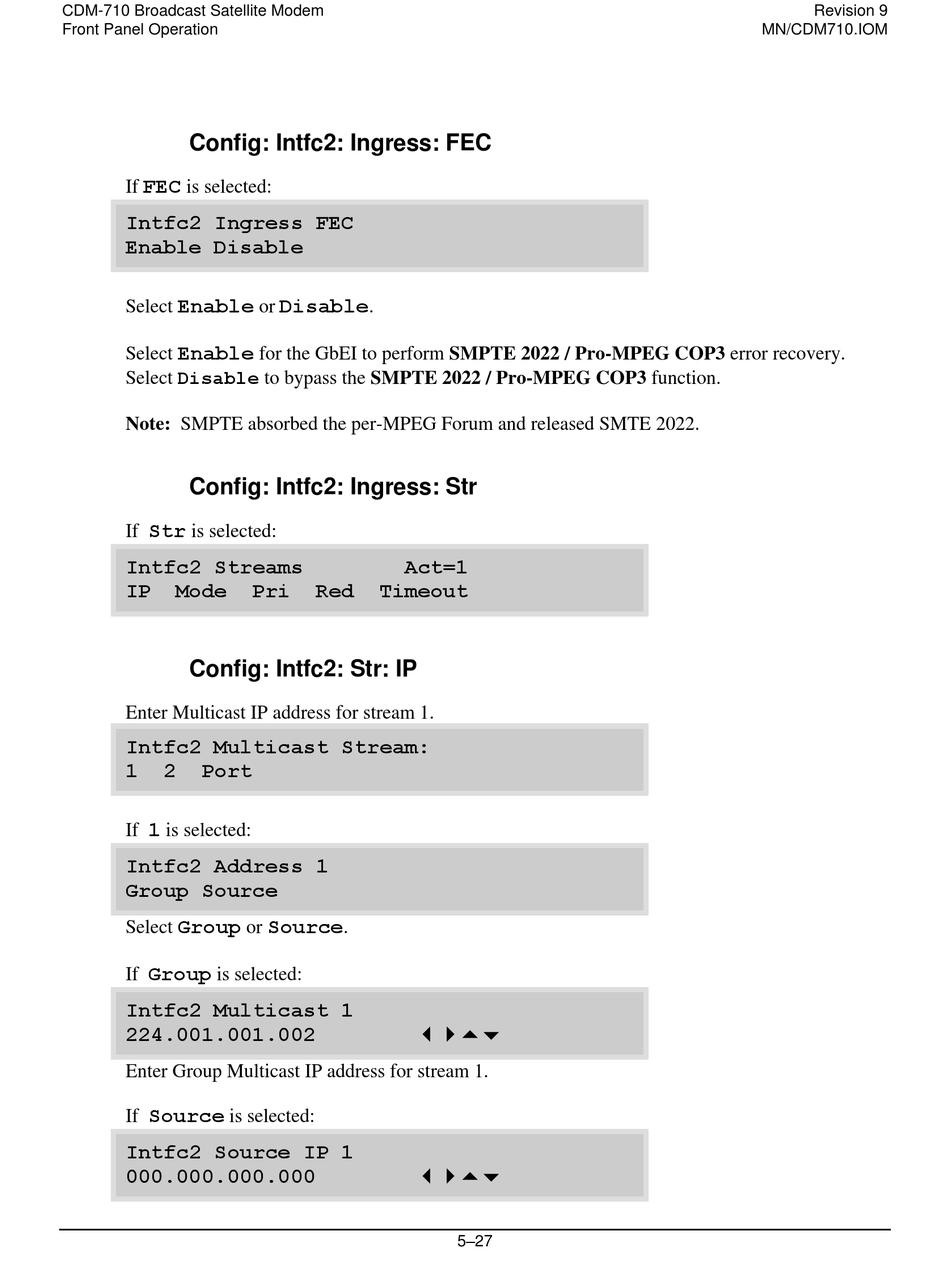

Config: Intfc2: Ingress: FEC

FEC
If is selected:
Intfc2 Ingress FEC
Enable Disable
Enable
Select
Enable
Select
Select Disable to bypass the SMPTE 2022 / Pro-MPEG COP3 function.
Note: SMPTE absorbed the per-MPEG Forum and released SMTE 2022.

Config: Intfc2: Ingress: Str

Str
If is selected:
Intfc2 Streams
IP Mode

Config: Intfc2: Str: IP

Enter Multicast IP address for stream 1.
Intfc2 Multicast Stream:
1 2 Port
1
If is selected:
Intfc2 Address 1
Group Source
Group
Select
Group
If is selected:
Intfc2 Multicast 1
224.001.001.002
Enter Group Multicast IP address for stream 1.
Source
If is selected:
Intfc2 Source IP 1
000.000.000.000
Disable
or .
for the GbEI to perform SMPTE 2022 / Pro-MPEG COP3 error recovery.
Act=1
Pri Red Timeout
Source
or .


5–27
