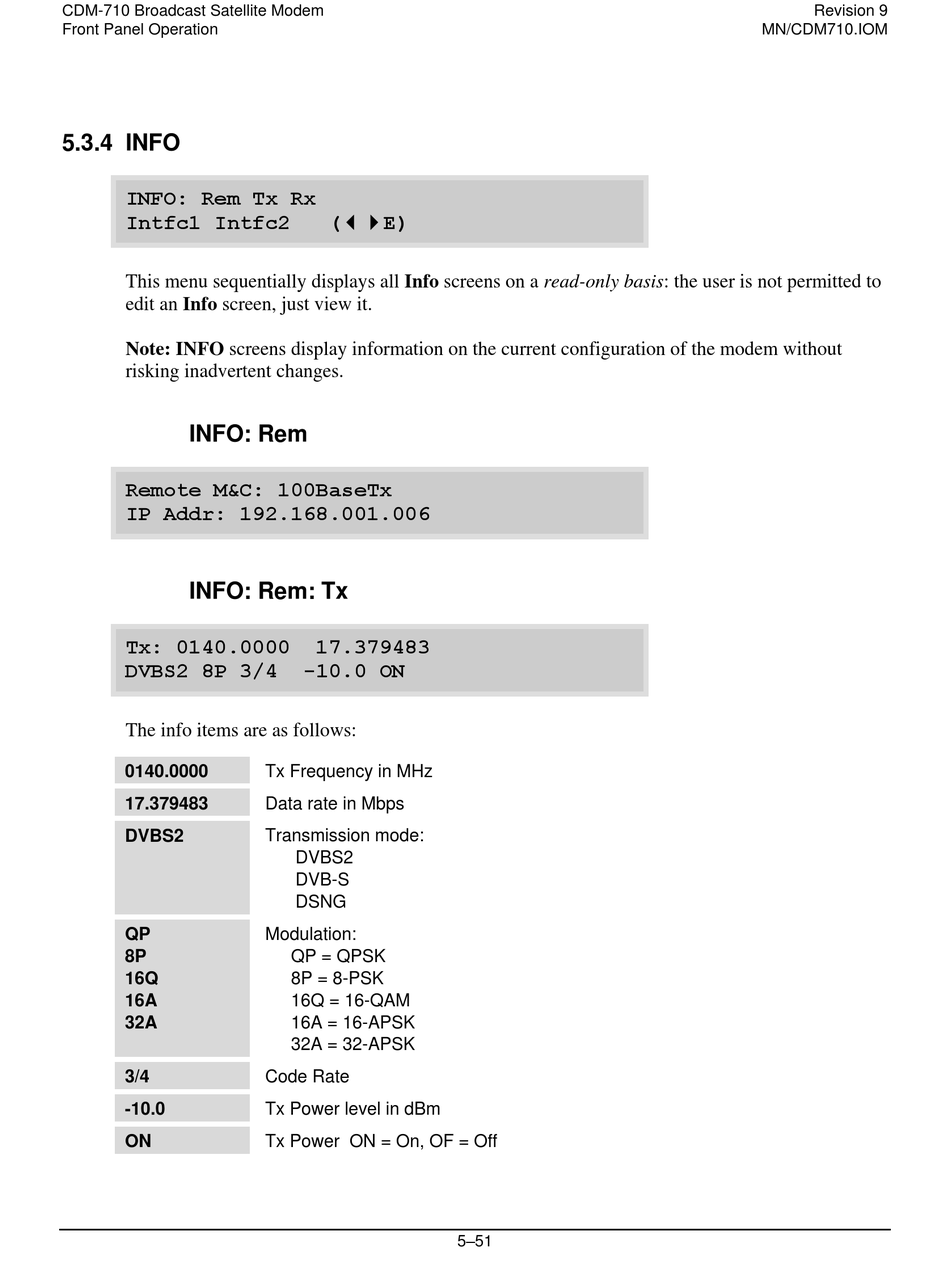

5.3.4 INFO

INFO: Rem Tx Rx
Intfc1 Intfc2
This menu sequentially displays all Info screens on a read-only basis: the user is not permitted to
edit an Info screen, just view it.
Note: INFO screens display information on the current configuration of the modem without
risking inadvertent changes.

INFO: Rem

Remote M&C: 100BaseTx
IP Addr: 192.168.001.006

INFO: Rem: Tx

Tx: 0140.0000
DVBS2 8P 3/4
The info items are as follows:
0140.0000
17.379483
DVBS2
QP
8P
16Q
16A
32A
3/4
-10.0
ON
(E)
17.379483
-10.0 ON
Tx Frequency in MHz
Data rate in Mbps
Transmission mode:
DVBS2
DVB-S
DSNG
Modulation:
QP = QPSK
8P = 8-PSK
16Q = 16-QAM
16A = 16-APSK
32A = 32-APSK
Code Rate
Tx Power level in dBm
Tx Power ON = On, OF = Off
