CDM-710 Broadcast Satellite Modem
Front Panel Operation

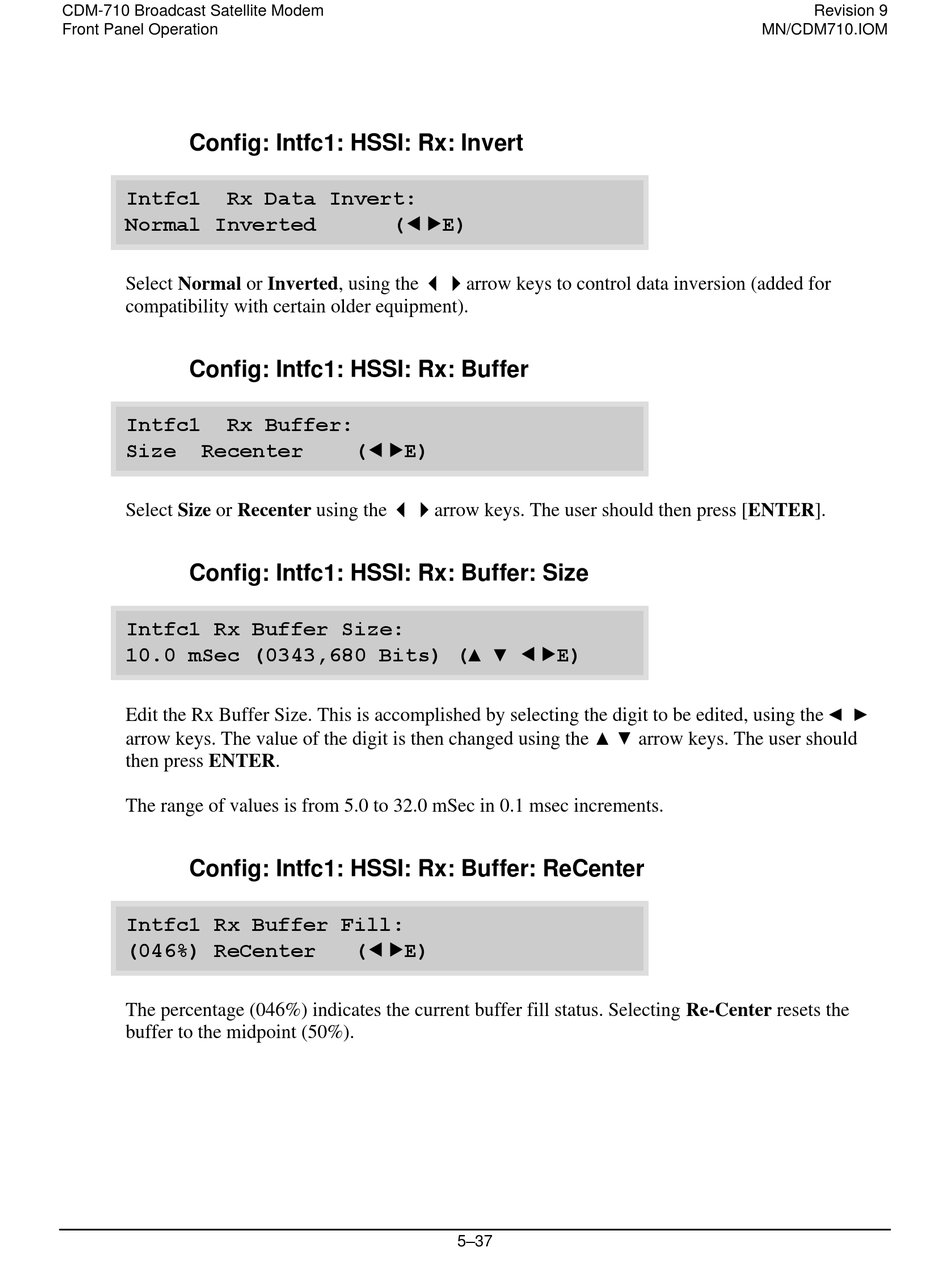

Config: Intfc1: HSSI: Rx: Invert

Intfc1 Rx Data Invert:
Normal Inverted
Select Normal or Inverted, using the
compatibility with certain older equipment).

Config: Intfc1: HSSI: Rx: Buffer

Intfc1 Rx Buffer:
Size Recenter
Select Size or Recenter using the

Config: Intfc1: HSSI: Rx: Buffer: Size

Intfc1 Rx Buffer Size:
10.0 mSec (0343,680 Bits) (▲ ▼ E)
Edit the Rx Buffer Size. This is accomplished by selecting the digit to be edited, using the
arrow keys. The value of the digit is then changed using the
then press ENTER.
The range of values is from 5.0 to 32.0 mSec in 0.1 msec increments.

Config: Intfc1: HSSI: Rx: Buffer: ReCenter

Intfc1 Rx Buffer Fill:
(046%) ReCenter
The percentage (046%) indicates the current buffer fill status. Selecting Re-Center resets the
buffer to the midpoint (50%).
(E)

arrow keys to control data inversion (added for
(E)

arrow keys. The user should then press [ENTER].
(E)
5–37
MN/CDM710.IOM
▲ ▼
arrow keys. The user should
Revision 9
◄ ►
