Figure 12-3. Continuous And Gap Clock At Tt - Comtech EF Data CDM-710 Installation And Operation Manual

CDM-710 Broadcast Satellite Modem
CDI-60 HSSI Interface
Item
Test
Operation
Signal Sense
Cards Per Modem
Cable Length to 52 Mbps
LED
Requirement
I/O Loopback not provided
Simplex (Tx only or Rx only) or full duplex
Programmable Normal or Inverted for TT and TD, RT and RD
The interface operates in Slot 1.
2 m (6 ft) nominal, up to 15 m (49 ft) maximum – Note higher
data rates usually require shorter cable lengths.
Green LED's indicate channel is enabled
Continuous Clock
Gap Clock

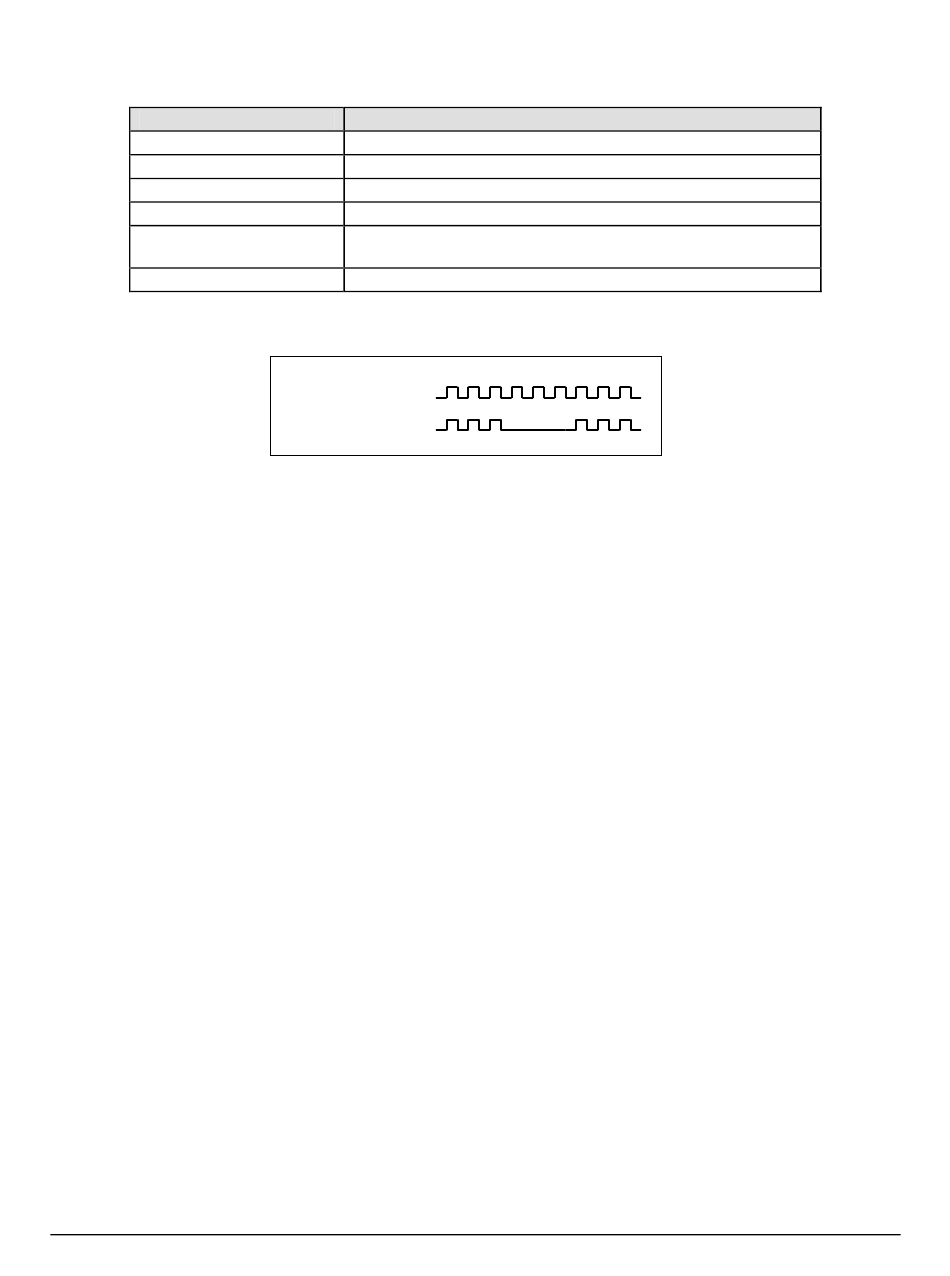

Figure 12-3. Continuous and Gap Clock at TT

12–4
Revision 9
MN/CDM710.IOM
