CDM-710/L Broadcast Satellite Modem
Front Panel Operation
7.2.4

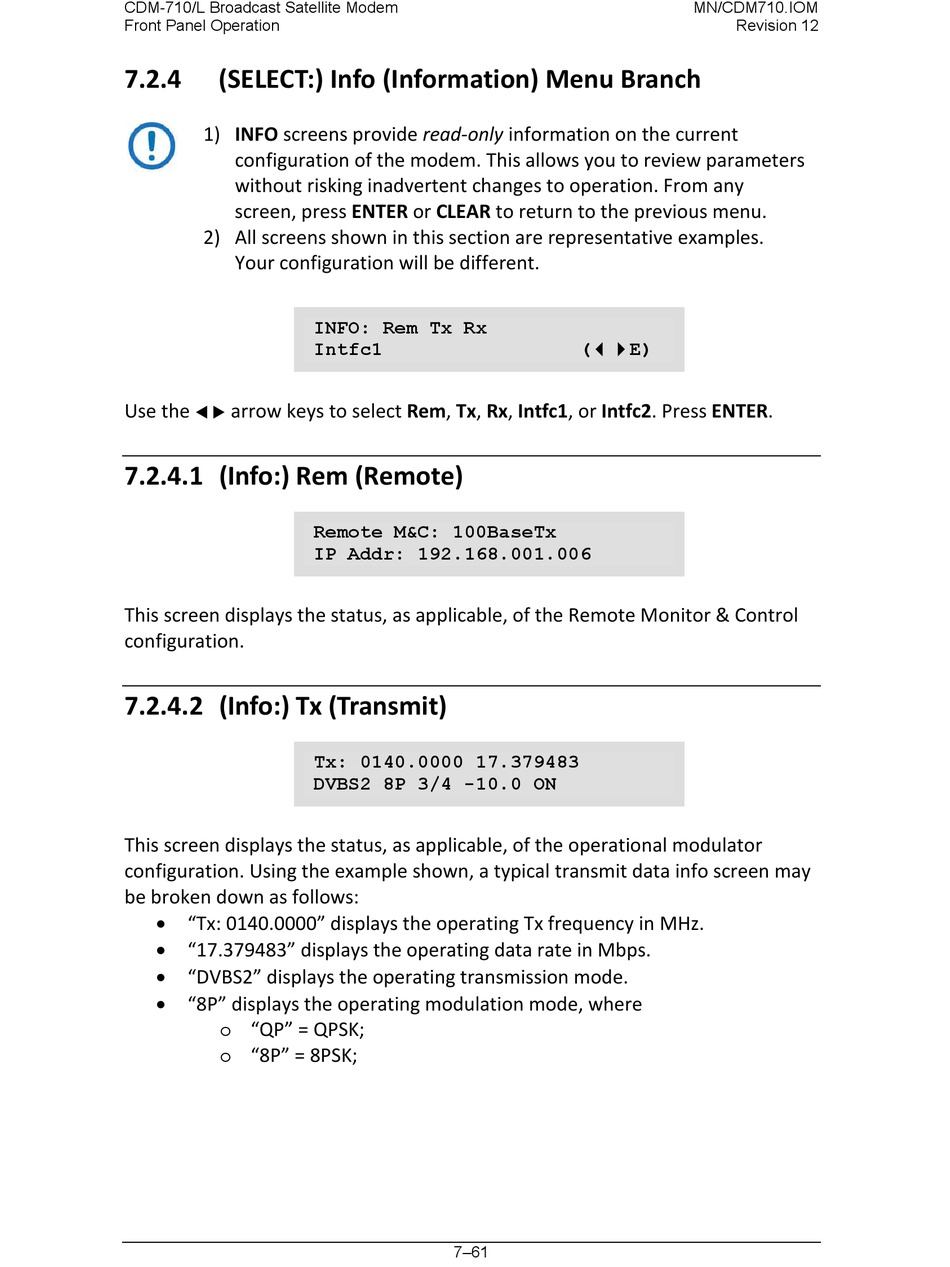

(SELECT:) Info (Information) Menu Branch

1) INFO screens provide read-only information on the current
configuration of the modem. This allows you to review parameters
without risking inadvertent changes to operation. From any
screen, press ENTER or CLEAR to return to the previous menu.
2) All screens shown in this section are representative examples.
Your configuration will be different.
Use the arrow keys to select Rem, Tx, Rx, Intfc1, or Intfc2. Press ENTER.
 

7.2.4.1 (Info:) Rem (Remote)

This screen displays the status, as applicable, of the Remote Monitor & Control
configuration.

7.2.4.2 (Info:) Tx (Transmit)

This screen displays the status, as applicable, of the operational modulator
configuration. Using the example shown, a typical transmit data info screen may
be broken down as follows:
• "Tx: 0140.0000" displays the operating Tx frequency in MHz.
• "17.379483" displays the operating data rate in Mbps.
• "DVBS2" displays the operating transmission mode.
• "8P" displays the operating modulation mode, where
o "QP" = QPSK;
o "8P" = 8PSK;
INFO: Rem Tx Rx
Intfc1
Remote M&C: 100BaseTx
IP Addr: 192.168.001.006
Tx: 0140.0000 17.379483
DVBS2 8P 3/4 -10.0 ON
