Mounting
56
6.3.7

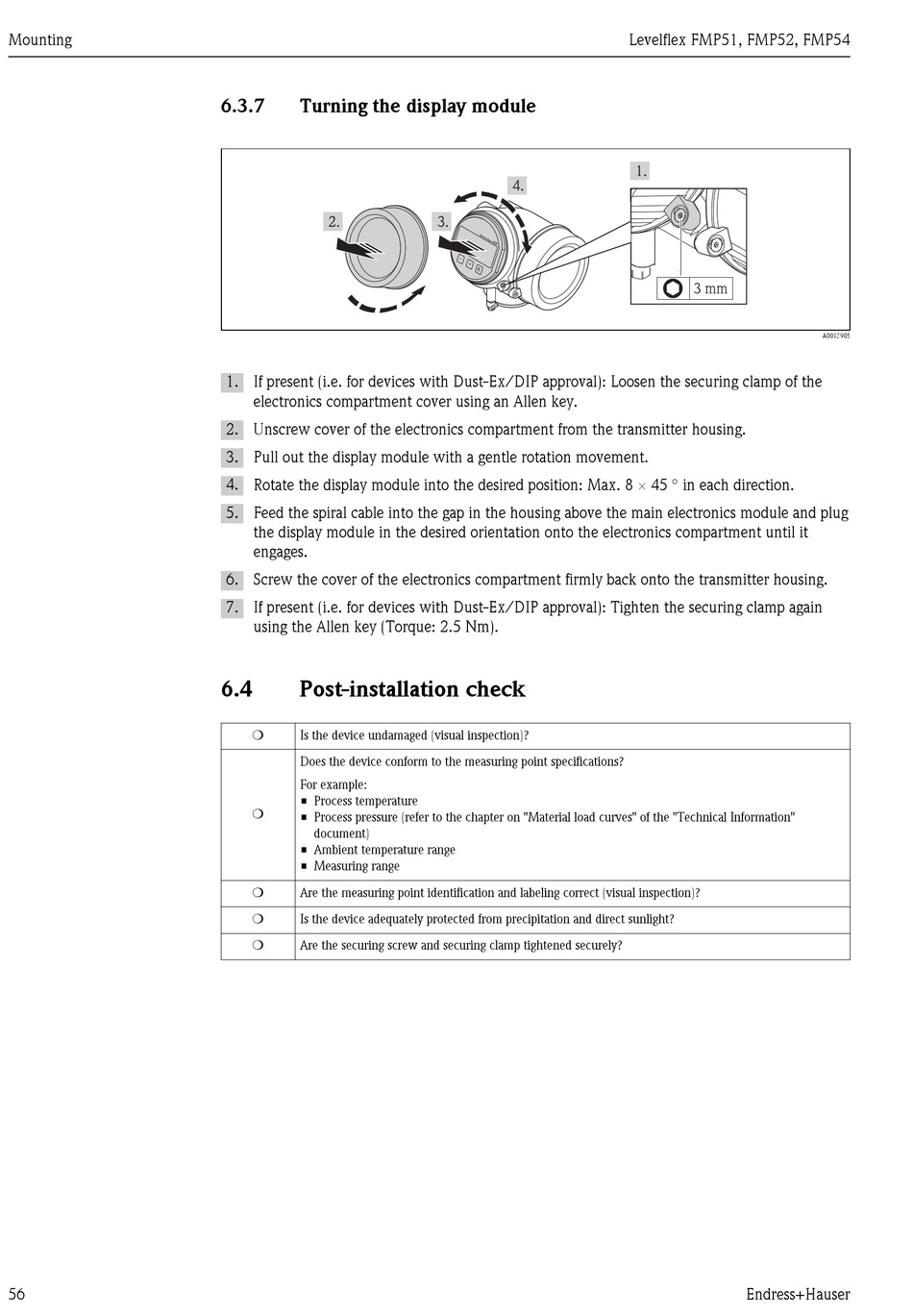

Turning the display module

1. If present (i.e. for devices with Dust-Ex/DIP approval): Loosen the securing clamp of the
electronics compartment cover using an Allen key.
2. Unscrew cover of the electronics compartment from the transmitter housing.
3. Pull out the display module with a gentle rotation movement.
4. Rotate the display module into the desired position: Max. 8 ´ 45 ° in each direction.
5. Feed the spiral cable into the gap in the housing above the main electronics module and plug
the display module in the desired orientation onto the electronics compartment until it
engages.
6. Screw the cover of the electronics compartment firmly back onto the transmitter housing.
7. If present (i.e. for devices with Dust-Ex/DIP approval): Tighten the securing clamp again
using the Allen key (Torque: 2.5 Nm).
6.4

Post-installation check

Is the device undamaged (visual inspection)?
Does the device conform to the measuring point specifications?
For example:
• Process temperature
• Process pressure (refer to the chapter on "Material load curves" of the "Technical Information"
document)
• Ambient temperature range
• Measuring range
Are the measuring point identification and labeling correct (visual inspection)?
Is the device adequately protected from precipitation and direct sunlight?
Are the securing screw and securing clamp tightened securely?
Levelflex FMP51, FMP52, FMP54
1
3 mm
Endress+Hauser
A0013905
