Levelflex FMP51, FMP52, FMP54
Endress+Hauser
11.2.2

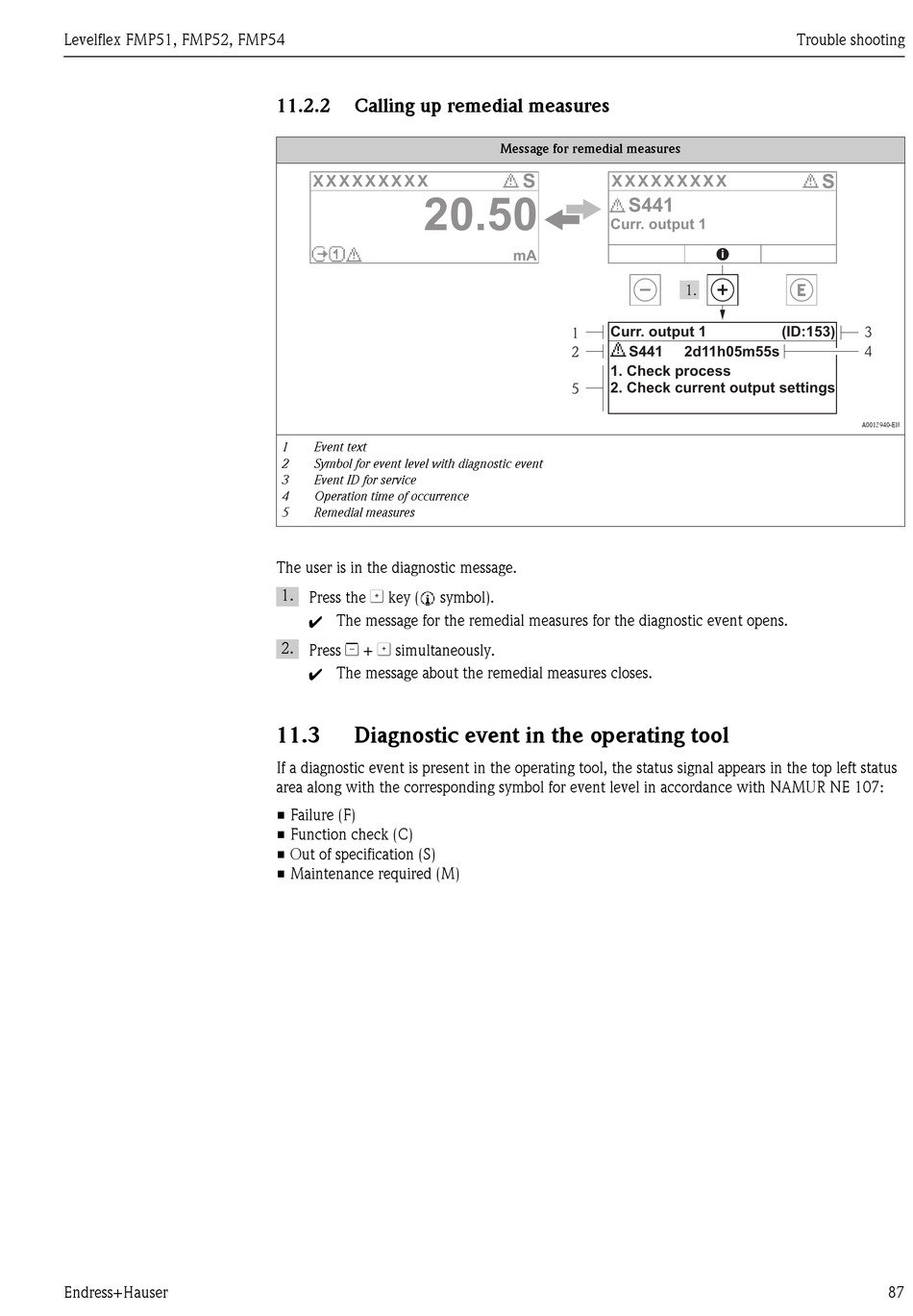

Calling up remedial measures

X X X X X X X X X
20.50
1 Event text
2 Symbol for event level with diagnostic event
3 Event ID for service
4 Operation time of occurrence
5 Remedial measures
The user is in the diagnostic message.
1. Press the O key (
symbol).
à The message for the remedial measures for the diagnostic event opens.
2. Press S + O simultaneously.
à The message about the remedial measures closes.
11.3

Diagnostic event in the operating tool

If a diagnostic event is present in the operating tool, the status signal appears in the top left status
area along with the corresponding symbol for event level in accordance with NAMUR NE 107:
• Failure (F)
• Function check (C)
• Out of specification (S)
• Maintenance required (M)
Message for remedial measures
S
X X X X X X X X
S441
Curr. output 1
mA
Curr. output 1
1
2 S441
1. Check process
2. Check current output settings
5
Trouble shooting
S
X
i
(ID:153)
2d11h05m55s
3
4
A0013940-EN
87
