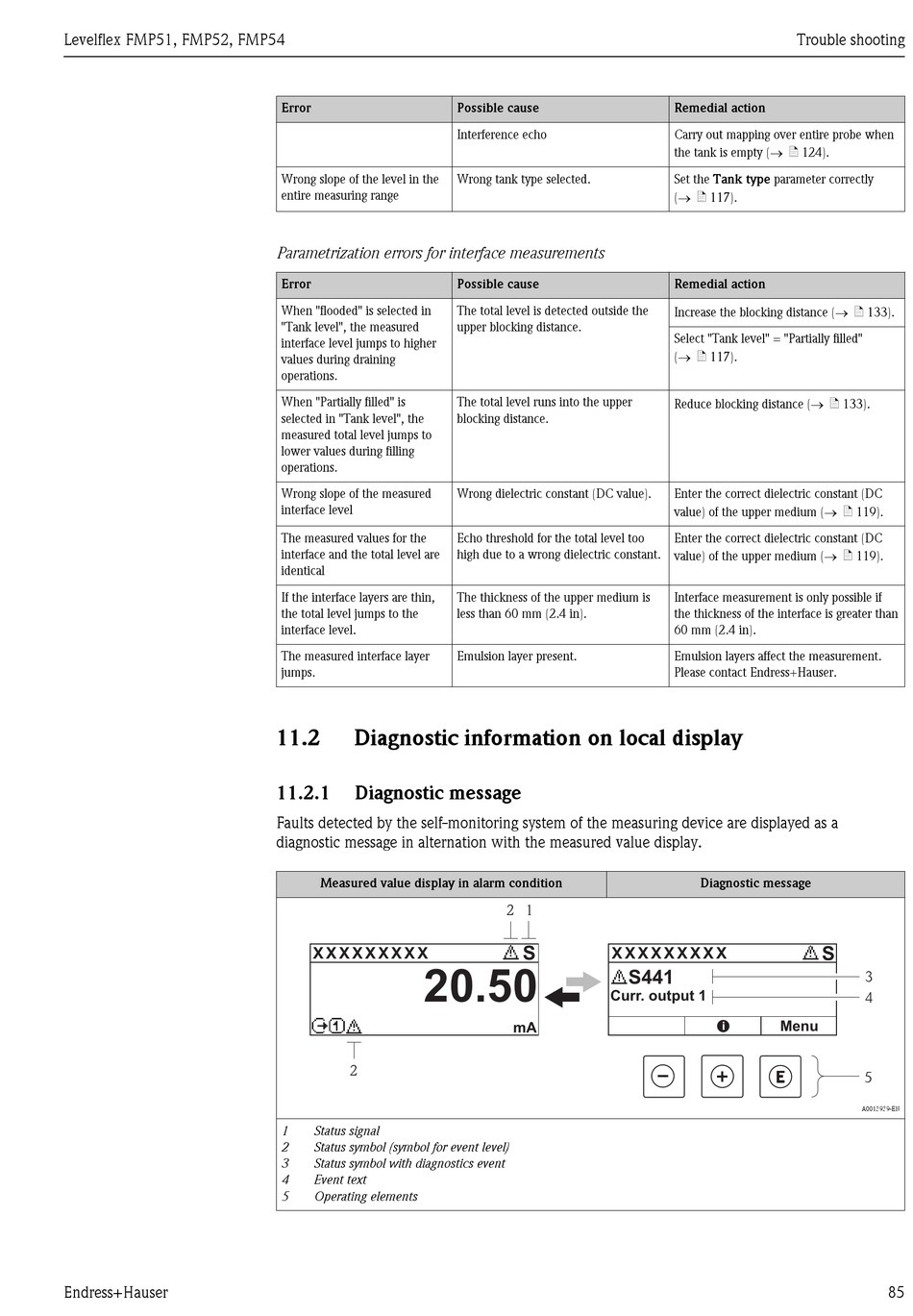

Diagnostic Information On Local Display; Diagnostic Message - Endress+Hauser Levelflex FMP51 Operating Instructions Manual

Levelflex FMP51, FMP52, FMP54
Endress+Hauser
Error
Wrong slope of the level in the
entire measuring range
Parametrization errors for interface measurements
Error
When "flooded" is selected in
"Tank level", the measured
interface level jumps to higher
values during draining
operations.
When "Partially filled" is
selected in "Tank level", the
measured total level jumps to
lower values during filling
operations.
Wrong slope of the measured
interface level
The measured values for the
interface and the total level are
identical
If the interface layers are thin,
the total level jumps to the
interface level.
The measured interface layer
jumps.
11.2

Diagnostic information on local display

11.2.1

Diagnostic message

Faults detected by the self-monitoring system of the measuring device are displayed as a
diagnostic message in alternation with the measured value display.
Measured value display in alarm condition
X X X X X X X X X
20.50
2
1 Status signal
2 Status symbol (symbol for event level)
3 Status symbol with diagnostics event
4 Event text
5 Operating elements
Possible cause
Interference echo
Wrong tank type selected.
Possible cause
The total level is detected outside the
upper blocking distance.
The total level runs into the upper
blocking distance.
Wrong dielectric constant (DC value).
Echo threshold for the total level too
high due to a wrong dielectric constant.
The thickness of the upper medium is
less than 60 mm (2.4 in).
Emulsion layer present.
2 1
S
X X X X X X X
S441
Curr. output 1
mA
Trouble shooting
Remedial action
Carry out mapping over entire probe when
the tank is empty (® ä 124).
Set the Tank type parameter correctly
(® ä 117).
Remedial action
Increase the blocking distance (® ä 133).
Select "Tank level" = "Partially filled"
(® ä 117).
Reduce blocking distance (® ä 133).
Enter the correct dielectric constant (DC
value) of the upper medium (® ä 119).
Enter the correct dielectric constant (DC
value) of the upper medium (® ä 119).
Interface measurement is only possible if
the thickness of the interface is greater than
60 mm (2.4 in).
Emulsion layers affect the measurement.
Please contact Endress+Hauser.
Diagnostic message
X X S
Menu
i
3
4
5
A0013939-EN
85
