Operating options

8.1

Overview

8.1.1

On-site operation

1
2
2.1
2.2

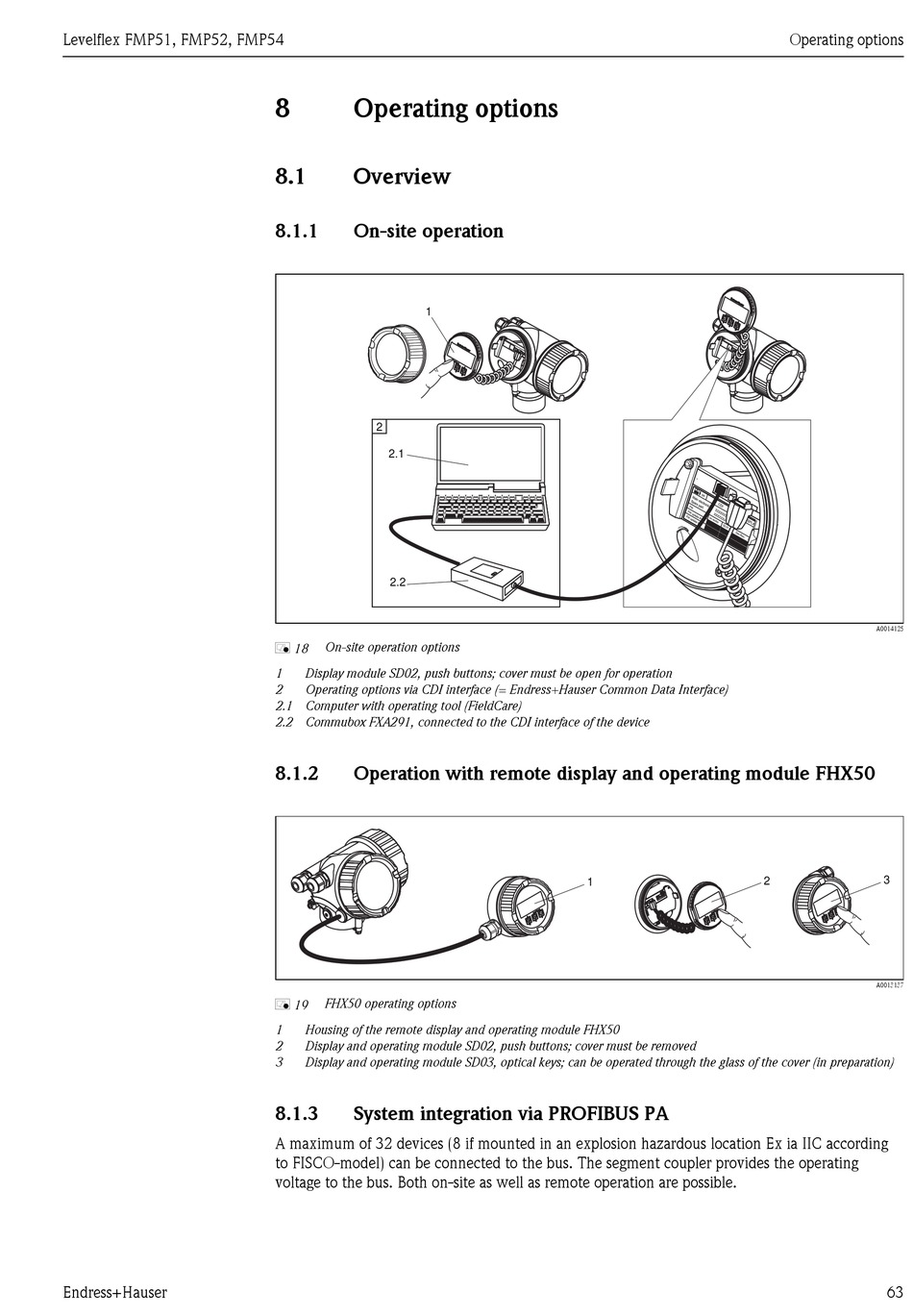

On-site operation options
å 18
1 Display module SD02, push buttons; cover must be open for operation
2 Operating options via CDI interface (= Endress+Hauser Common Data Interface)
2.1 Computer with operating tool (FieldCare)
2.2 Commubox FXA291, connected to the CDI interface of the device
8.1.2

Operation with remote display and operating module FHX50

FHX50 operating options
å 19
1 Housing of the remote display and operating module FHX50
2 Display and operating module SD02, push buttons; cover must be removed
3 Display and operating module SD03, optical keys; can be operated through the glass of the cover (in preparation)
8.1.3

System integration via PROFIBUS PA

A maximum of 32 devices (8 if mounted in an explosion hazardous location Ex ia IIC according
to FISCO-model) can be connected to the bus. The segment coupler provides the operating
voltage to the bus. Both on-site as well as remote operation are possible.
1
Operating options
A0014125
2 3
A0013137
