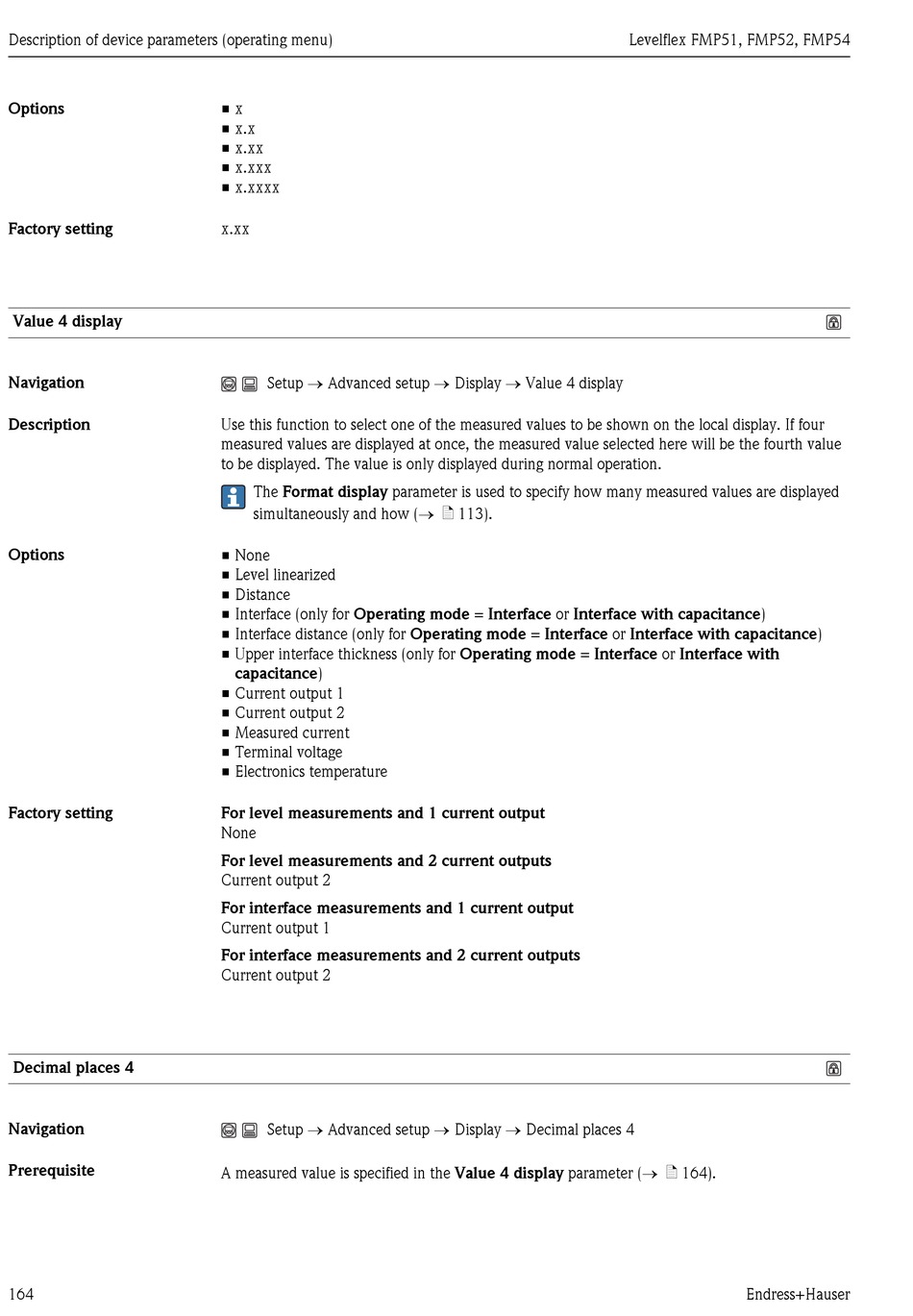

Endress+Hauser Levelflex FMP51 Operating Instructions Manual page 164

Description of device parameters (operating menu)
Options
Factory setting
Value 4 display
Navigation
Description
Options
Factory setting
Decimal places 4
Navigation
Prerequisite
164
• x
• x.x
• x.xx
• x.xxx
• x.xxxx
x.xx
Setup ® Advanced setup ® Display ® Value 4 display
Use this function to select one of the measured values to be shown on the local display. If four
measured values are displayed at once, the measured value selected here will be the fourth value
to be displayed. The value is only displayed during normal operation.
The Format display parameter is used to specify how many measured values are displayed
simultaneously and how (® ä 113).
• None
• Level linearized
• Distance
• Interface (only for Operating mode = Interface or Interface with capacitance)
• Interface distance (only for Operating mode = Interface or Interface with capacitance)
• Upper interface thickness (only for Operating mode = Interface or Interface with
capacitance)
• Current output 1
• Current output 2
• Measured current
• Terminal voltage
• Electronics temperature
For level measurements and 1 current output
None
For level measurements and 2 current outputs
Current output 2
For interface measurements and 1 current output
Current output 1
For interface measurements and 2 current outputs
Current output 2
Setup ® Advanced setup ® Display ® Decimal places 4
A measured value is specified in the Value 4 display parameter (® ä 164).
