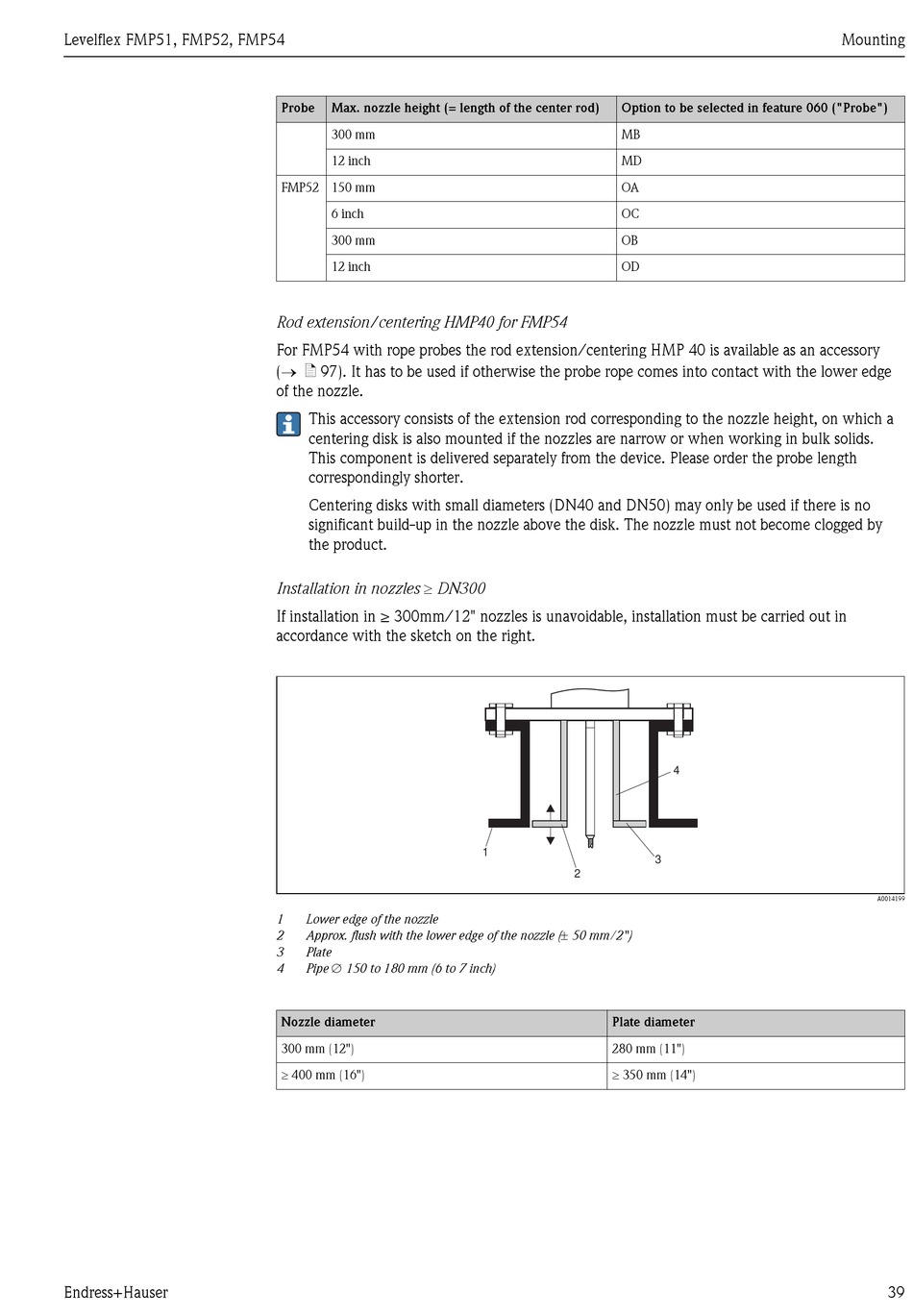

Endress+Hauser Levelflex FMP51 Operating Instructions Manual page 39

Levelflex FMP51, FMP52, FMP54
Endress+Hauser
Probe Max. nozzle height (= length of the center rod)
300 mm
12 inch
FMP52 150 mm
6 inch
300 mm
12 inch
Rod extension/centering HMP40 for FMP54
For FMP54 with rope probes the rod extension/centering HMP 40 is available as an accessory
(® ä 97). It has to be used if otherwise the probe rope comes into contact with the lower edge
of the nozzle.
This accessory consists of the extension rod corresponding to the nozzle height, on which a
centering disk is also mounted if the nozzles are narrow or when working in bulk solids.
This component is delivered separately from the device. Please order the probe length
correspondingly shorter.
Centering disks with small diameters (DN40 and DN50) may only be used if there is no
significant build-up in the nozzle above the disk. The nozzle must not become clogged by
the product.
Installation in nozzles ³ DN300
If installation in ≥ 300mm/12" nozzles is unavoidable, installation must be carried out in
accordance with the sketch on the right.
1 Lower edge of the nozzle
2 Approx. flush with the lower edge of the nozzle (± 50 mm/2")
3 Plate
Pipe Æ 150 to 180 mm (6 to 7 inch)
4
Nozzle diameter
300 mm (12")
³ 400 mm (16")
Option to be selected in feature 060 ("Probe")
MB
MD
OA
OC
OB
OD
1
2
Plate diameter
280 mm (11")
³ 350 mm (14")
4
3
Mounting
A0014199
