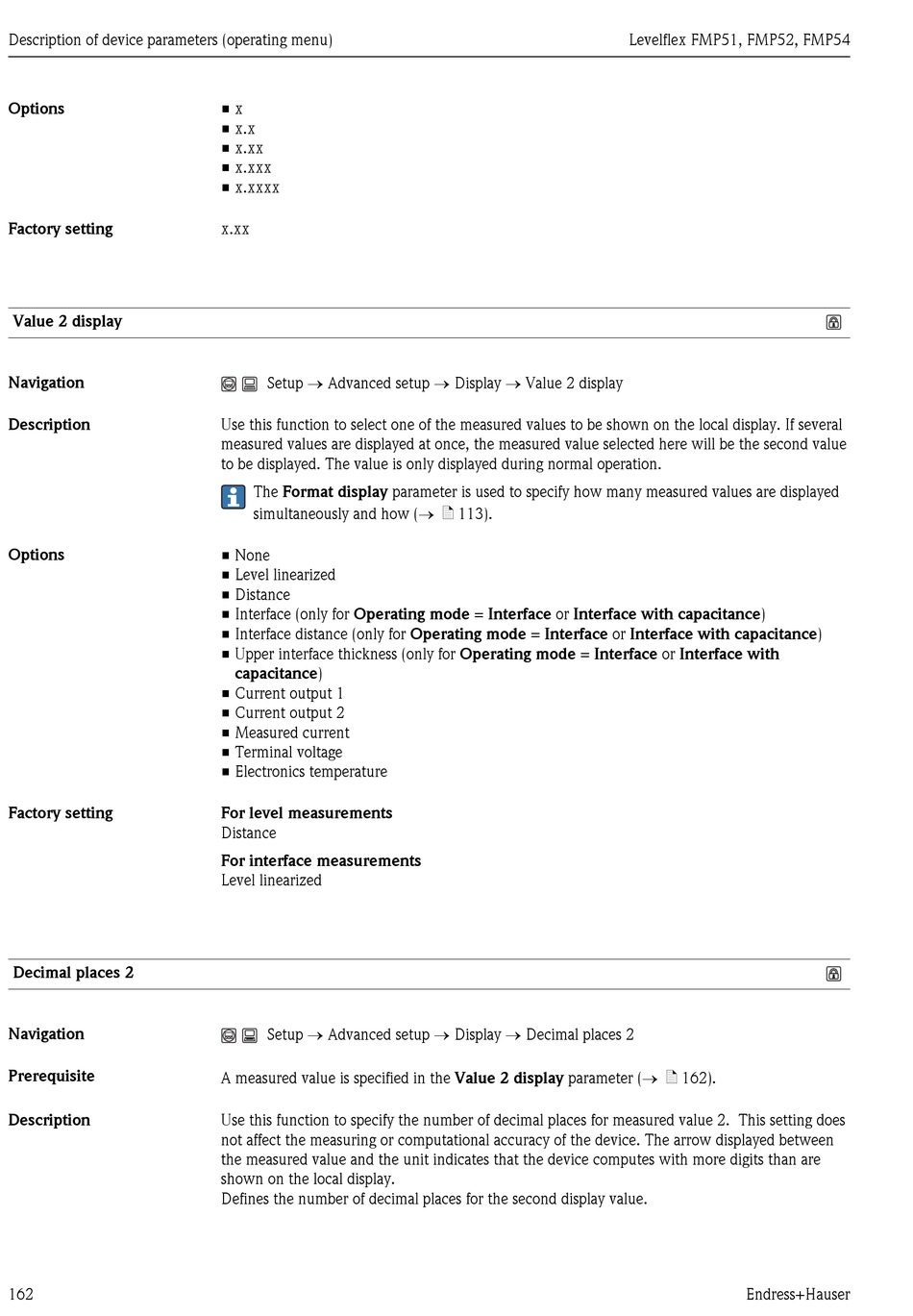

Endress+Hauser Levelflex FMP51 Operating Instructions Manual page 162

Description of device parameters (operating menu)
Options
Factory setting
Value 2 display
Navigation
Description
Options
Factory setting
Decimal places 2
Navigation
Prerequisite
Description
162
• x
• x.x
• x.xx
• x.xxx
• x.xxxx
x.xx
Setup ® Advanced setup ® Display ® Value 2 display
Use this function to select one of the measured values to be shown on the local display. If several
measured values are displayed at once, the measured value selected here will be the second value
to be displayed. The value is only displayed during normal operation.
The Format display parameter is used to specify how many measured values are displayed
simultaneously and how (® ä 113).
• None
• Level linearized
• Distance
• Interface (only for Operating mode = Interface or Interface with capacitance)
• Interface distance (only for Operating mode = Interface or Interface with capacitance)
• Upper interface thickness (only for Operating mode = Interface or Interface with
capacitance)
• Current output 1
• Current output 2
• Measured current
• Terminal voltage
• Electronics temperature
For level measurements
Distance
For interface measurements
Level linearized
Setup ® Advanced setup ® Display ® Decimal places 2
A measured value is specified in the Value 2 display parameter (® ä 162).
Use this function to specify the number of decimal places for measured value 2. This setting does
not affect the measuring or computational accuracy of the device. The arrow displayed between
the measured value and the unit indicates that the device computes with more digits than are
shown on the local display.
Defines the number of decimal places for the second display value.
Levelflex FMP51, FMP52, FMP54
