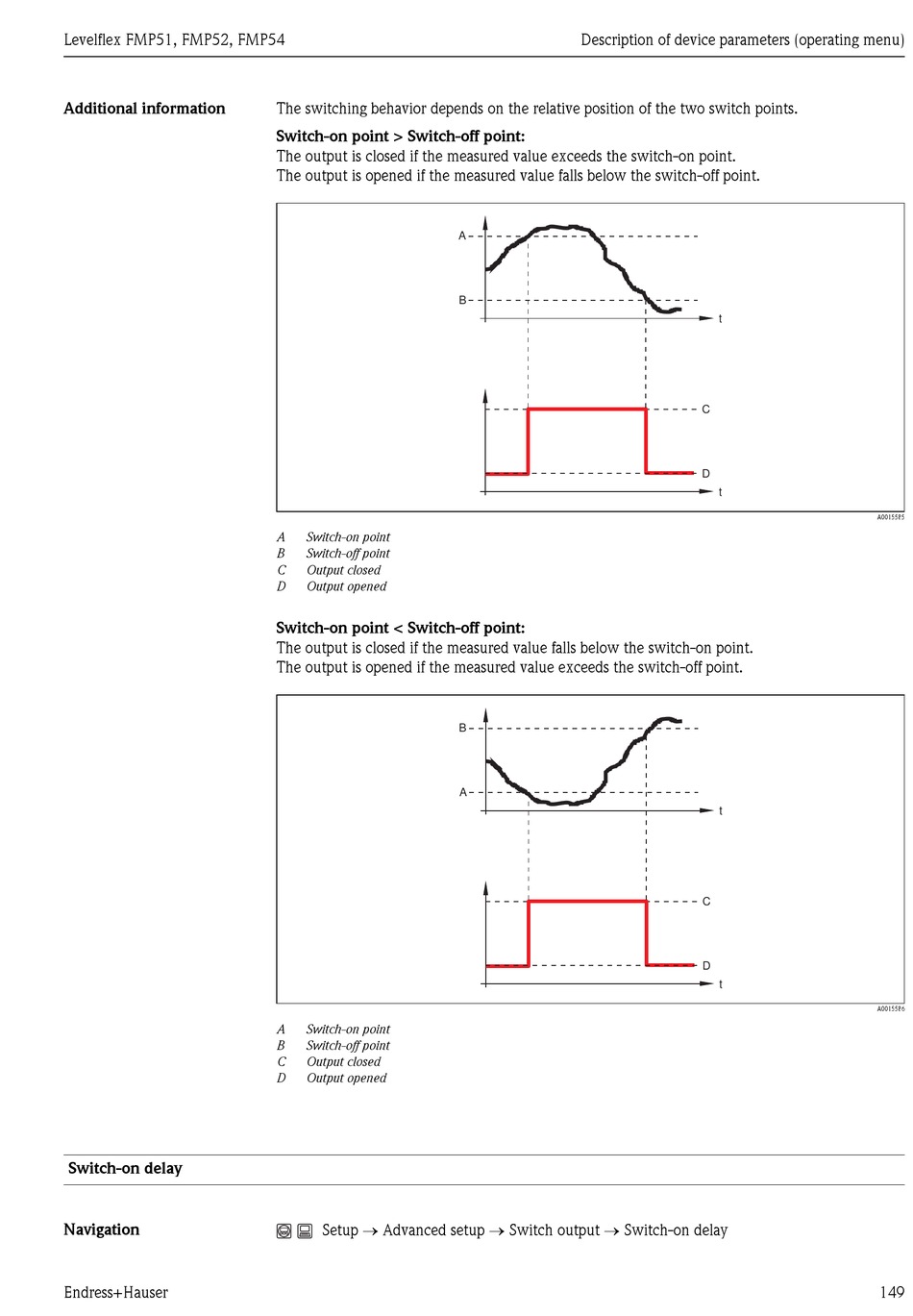

The switching behavior depends on the relative position of the two switch points.
Switch-on point > Switch-off point:
The output is closed if the measured value exceeds the switch-on point.
The output is opened if the measured value falls below the switch-off point.
A Switch-on point
B Switch-off point
C Output closed
D Output opened
Switch-on point < Switch-off point:
The output is closed if the measured value falls below the switch-on point.
The output is opened if the measured value exceeds the switch-off point.
A Switch-on point
B Switch-off point
C Output closed
D Output opened
Setup ® Advanced setup ® Switch output ® Switch-on delay
