Mounting
XT 280 °C (536 °F)*
2
MAX
XT 280 °C (536 °F)*
2
MAX
48
3
MAX
1

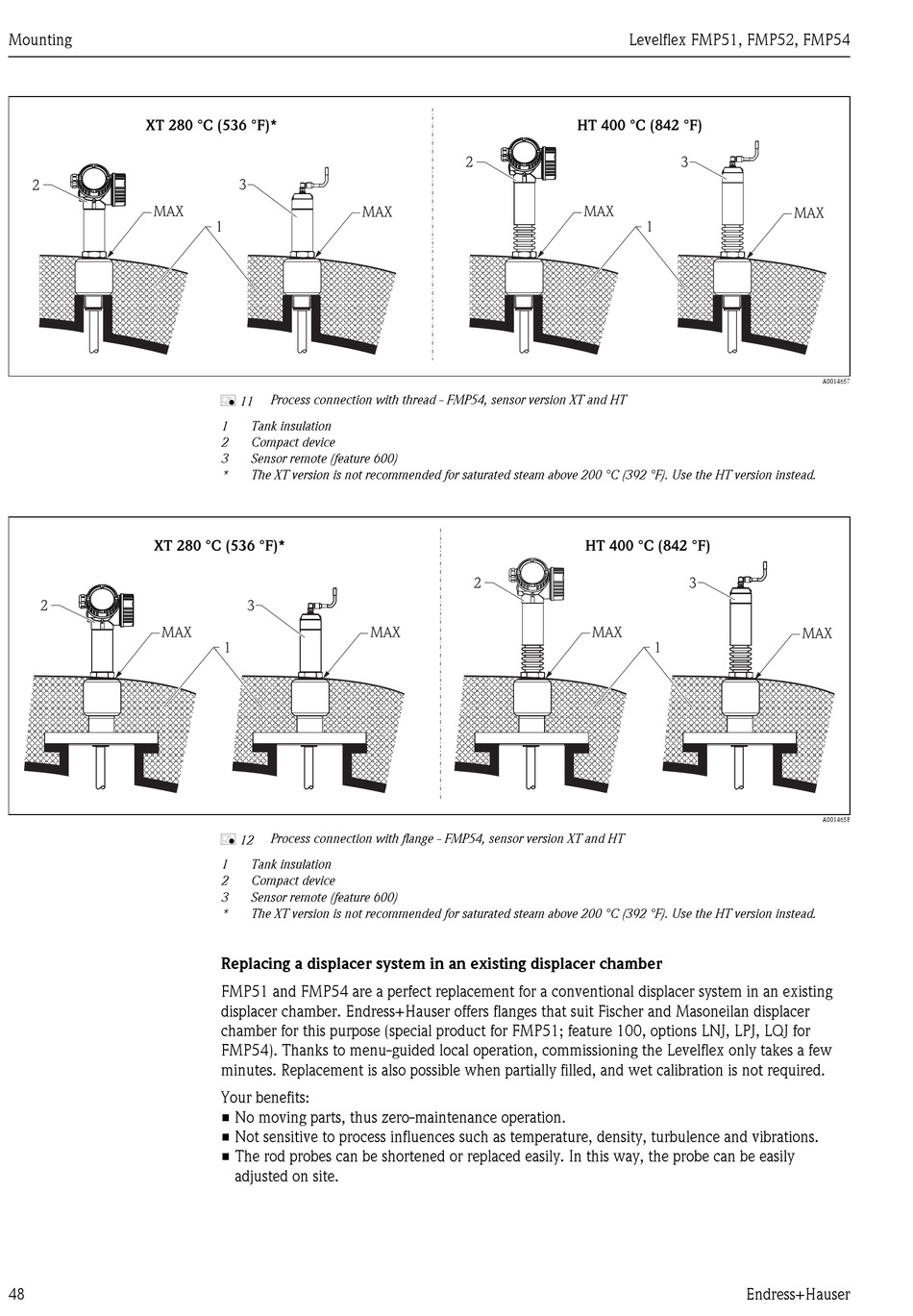

Process connection with thread - FMP54, sensor version XT and HT
å 11
1 Tank insulation
2 Compact device
3 Sensor remote (feature 600)
* The XT version is not recommended for saturated steam above 200 °C (392 °F). Use the HT version instead.
3
MAX
1
Process connection with flange - FMP54, sensor version XT and HT
å 12
1 Tank insulation
2 Compact device
3 Sensor remote (feature 600)
* The XT version is not recommended for saturated steam above 200 °C (392 °F). Use the HT version instead.
Replacing a displacer system in an existing displacer chamber
FMP51 and FMP54 are a perfect replacement for a conventional displacer system in an existing
displacer chamber. Endress+Hauser offers flanges that suit Fischer and Masoneilan displacer
chamber for this purpose (special product for FMP51; feature 100, options LNJ, LPJ, LQJ for
FMP54). Thanks to menu-guided local operation, commissioning the Levelflex only takes a few
minutes. Replacement is also possible when partially filled, and wet calibration is not required.
Your benefits:
• No moving parts, thus zero-maintenance operation.
• Not sensitive to process influences such as temperature, density, turbulence and vibrations.
• The rod probes can be shortened or replaced easily. In this way, the probe can be easily
adjusted on site.
Levelflex FMP51, FMP52, FMP54
HT 400 °C (842 °F)
2
MAX
HT 400 °C (842 °F)
2
MAX
3
MAX
1
3
MAX
1
