Levelflex FMP51, FMP52, FMP54
Assignment of measured variable
Navigation
Description
Selection
Factory setting
Value process variable
Navigation
Prerequisite
Description
Input range
Factory setting
Switch output simulation
Navigation
Endress+Hauser
18.3.6

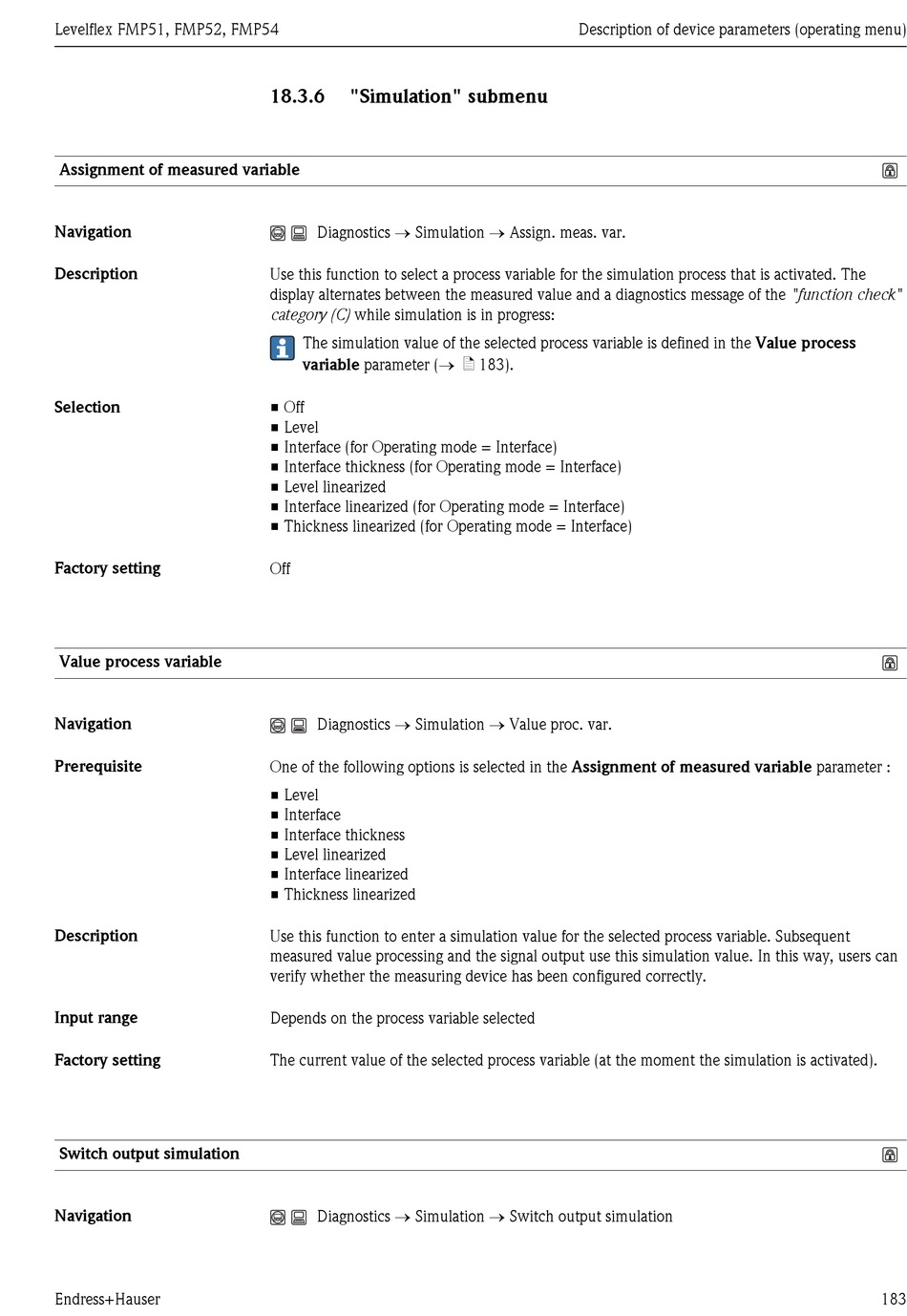

"Simulation" submenu

Diagnostics ® Simulation ® Assign. meas. var.
Use this function to select a process variable for the simulation process that is activated. The
display alternates between the measured value and a diagnostics message of the "function check"
category (C) while simulation is in progress:
The simulation value of the selected process variable is defined in the Value process
variable parameter (® ä 183).
• Off
• Level
• Interface (for Operating mode = Interface)
• Interface thickness (for Operating mode = Interface)
• Level linearized
• Interface linearized (for Operating mode = Interface)
• Thickness linearized (for Operating mode = Interface)
Off
Diagnostics ® Simulation ® Value proc. var.
One of the following options is selected in the Assignment of measured variable parameter :
• Level
• Interface
• Interface thickness
• Level linearized
• Interface linearized
• Thickness linearized
Use this function to enter a simulation value for the selected process variable. Subsequent
measured value processing and the signal output use this simulation value. In this way, users can
verify whether the measuring device has been configured correctly.
Depends on the process variable selected
The current value of the selected process variable (at the moment the simulation is activated).
Diagnostics ® Simulation ® Switch output simulation
Description of device parameters (operating menu)
183
