Electrical connection
58
7.1.2

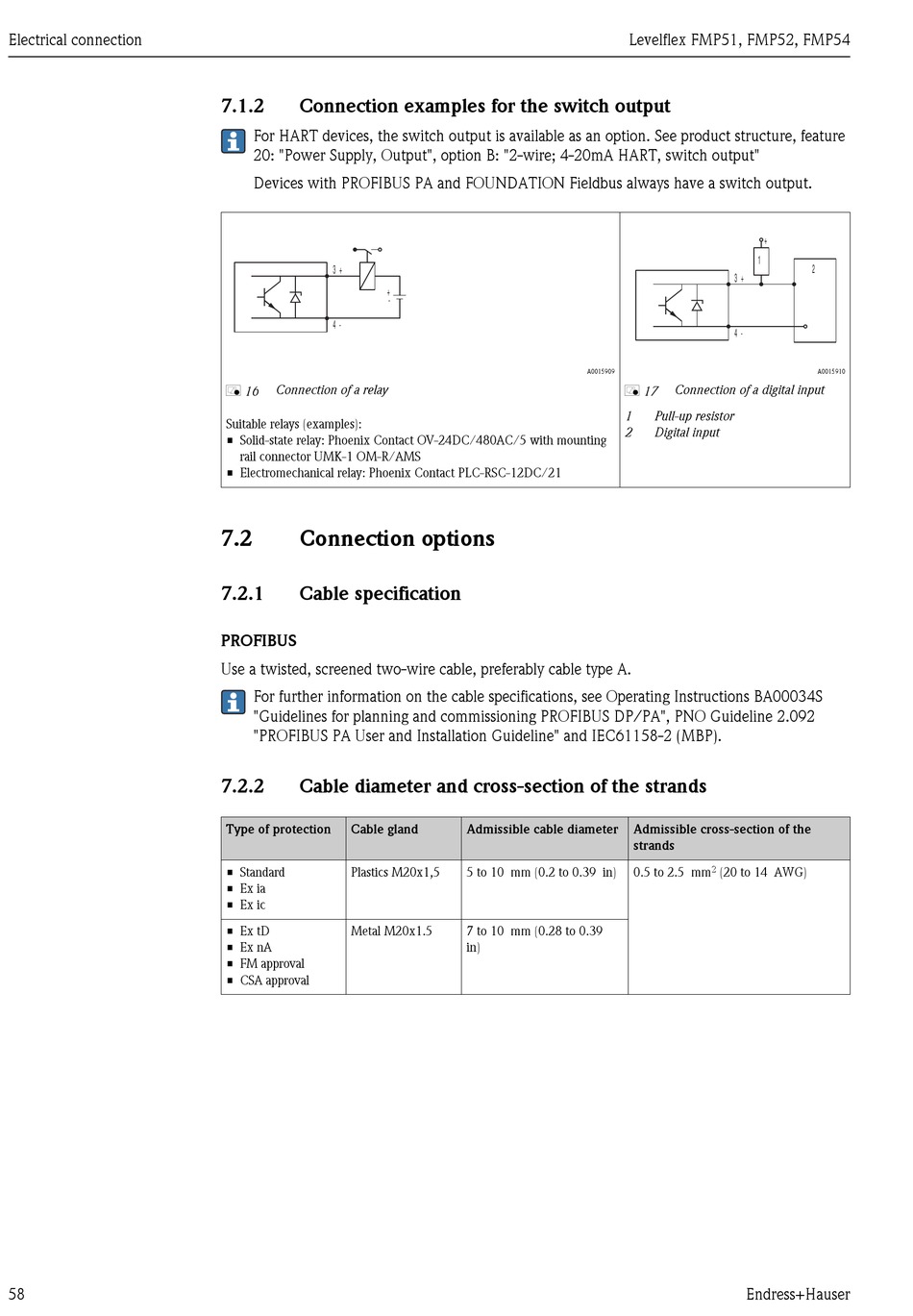

Connection examples for the switch output

For HART devices, the switch output is available as an option. See product structure, feature
20: "Power Supply, Output", option B: "2-wire; 4-20mA HART, switch output"
Devices with PROFIBUS PA and FOUNDATION Fieldbus always have a switch output.
3+
+
-
4-
Connection of a relay
å 16
Suitable relays (examples):
• Solid-state relay: Phoenix Contact OV-24DC/480AC/5 with mounting
rail connector UMK-1 OM-R/AMS
• Electromechanical relay: Phoenix Contact PLC-RSC-12DC/21
7.2

Connection options

7.2.1

Cable specification

PROFIBUS
Use a twisted, screened two-wire cable, preferably cable type A.
For further information on the cable specifications, see Operating Instructions BA00034S
"Guidelines for planning and commissioning PROFIBUS DP/PA", PNO Guideline 2.092
"PROFIBUS PA User and Installation Guideline" and IEC61158-2 (MBP).
7.2.2

Cable diameter and cross-section of the strands

Type of protection Cable gland
• Standard Plastics M20x1,5
• Ex ia
• Ex ic
• Ex tD Metal M20x1.5
• Ex nA
• FM approval
• CSA approval
Levelflex FMP51, FMP52, FMP54
A0015909
å 17
1
2
Admissible cable diameter Admissible cross-section of the
strands
5 to 10 mm (0.2 to 0.39 in) 0.5 to 2.5 mm
7 to 10 mm (0.28 to 0.39
in)
+
1
2
3+
4-
A0015910
Connection of a digital input
Pull-up resistor
Digital input
2 (20 to 14 AWG)
