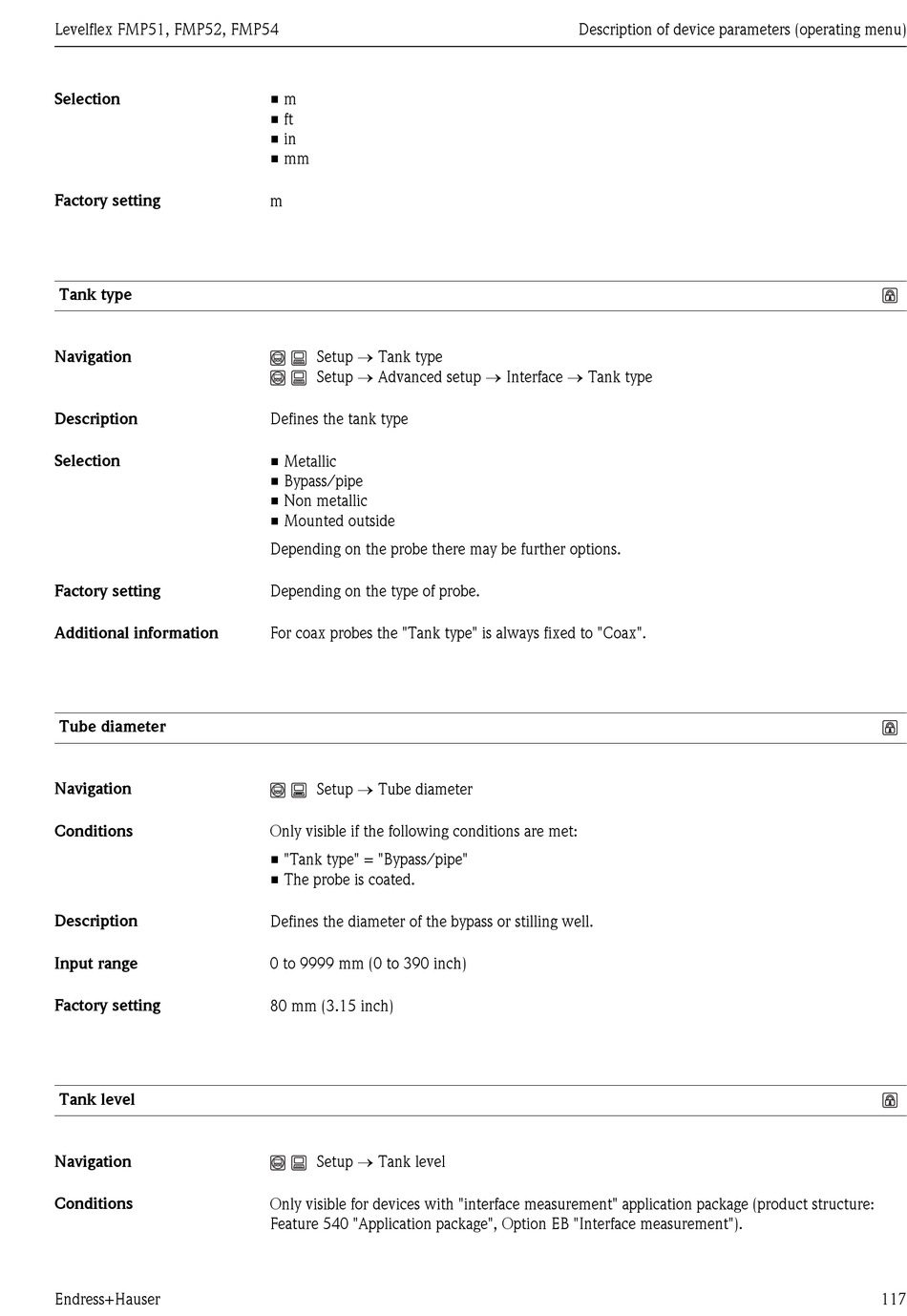

Endress+Hauser Levelflex FMP51 Operating Instructions Manual page 117

Levelflex FMP51, FMP52, FMP54
Selection
Factory setting
Tank type
Navigation
Description
Selection
Factory setting
Additional information
Tube diameter
Navigation
Conditions
Description
Input range
Factory setting
Tank level
Navigation
Conditions
Endress+Hauser
• m
• ft
• in
• mm
m
Setup ® Tank type
Setup ® Advanced setup ® Interface ® Tank type
Defines the tank type
• Metallic
• Bypass/pipe
• Non metallic
• Mounted outside
Depending on the probe there may be further options.
Depending on the type of probe.
For coax probes the "Tank type" is always fixed to "Coax".
Setup ® Tube diameter
Only visible if the following conditions are met:
• "Tank type" = "Bypass/pipe"
• The probe is coated.
Defines the diameter of the bypass or stilling well.
0 to 9999 mm (0 to 390 inch)
80 mm (3.15 inch)
Setup ® Tank level
Only visible for devices with "interface measurement" application package (product structure:
Feature 540 "Application package", Option EB "Interface measurement").
Description of device parameters (operating menu)
117
