Levelflex FMP51, FMP52, FMP54
Endress+Hauser

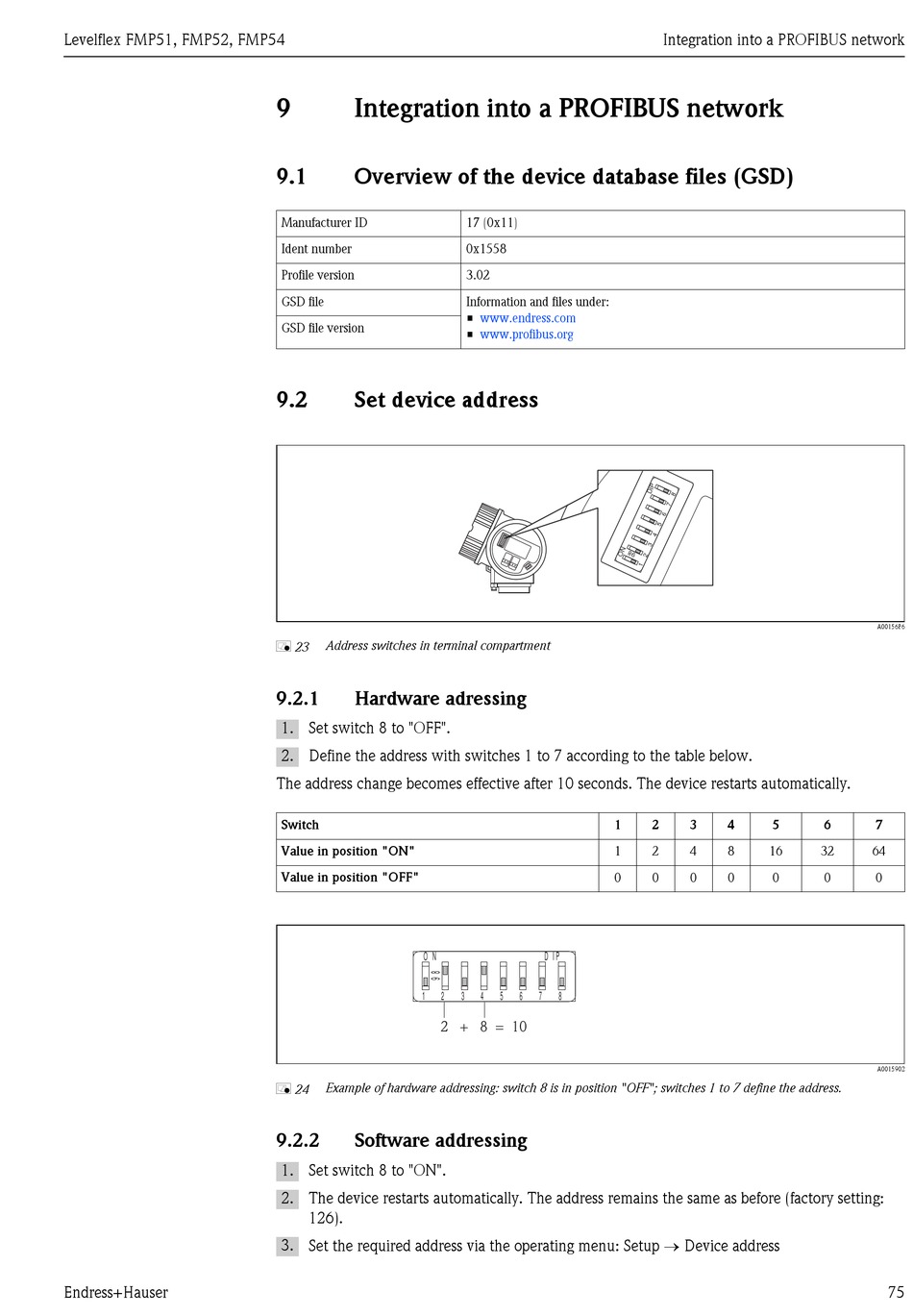

9 Integration into a PROFIBUS network
9.1

Overview of the device database files (GSD)

Manufacturer ID
Ident number
Profile version
GSD file
GSD file version
9.2

Set device address

Address switches in terminal compartment
å 23
9.2.1

Hardware adressing

1. Set switch 8 to "OFF".
2. Define the address with switches 1 to 7 according to the table below.
The address change becomes effective after 10 seconds. The device restarts automatically.
Switch
Value in position "ON"
Value in position "OFF"
ON
1
2
2 + 8 = 10
Example of hardware addressing: switch 8 is in position "OFF"; switches 1 to 7 define the address.
å 24
9.2.2

Software addressing

1. Set switch 8 to "ON".
2. The device restarts automatically. The address remains the same as before (factory setting:
126).
3. Set the required address via the operating menu: Setup ® Device address
17 (0x11)
0x1558
3.02
Information and files under:
• www.endress.com
• www.profibus.org
1
1
0
DIP
3 5 6 8
4 7
Integration into a PROFIBUS network
2 3 4 5 6
2 4 8 16 32
0 0 0 0
A0015686
7
64
0 0
A0015902
75
