Description of device parameters (operating menu)
Actual diagnostics
Navigation
Description
User interface
Additional information
Previous diagnostics
Navigation
Description
Zusätzliche Information
Additional information
Operating time from restart
Navigation
Description
User interface
170
18.3

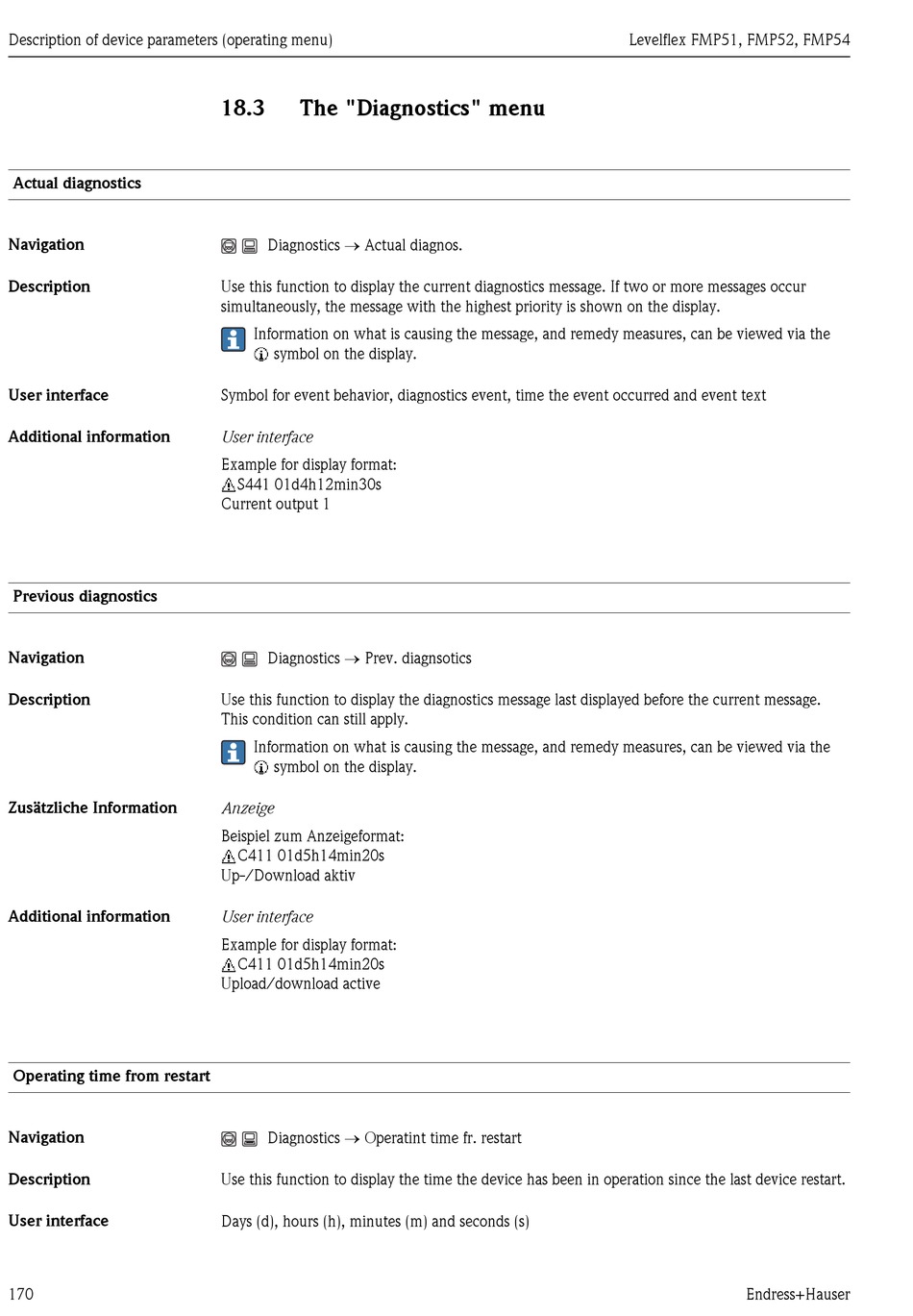

The "Diagnostics" menu

Diagnostics ® Actual diagnos.
Use this function to display the current diagnostics message. If two or more messages occur
simultaneously, the message with the highest priority is shown on the display.
Information on what is causing the message, and remedy measures, can be viewed via the
symbol on the display.
Symbol for event behavior, diagnostics event, time the event occurred and event text
User interface
Example for display format:
S441 01d4h12min30s
Current output 1
Diagnostics ® Prev. diagnsotics
Use this function to display the diagnostics message last displayed before the current message.
This condition can still apply.
Information on what is causing the message, and remedy measures, can be viewed via the
symbol on the display.
Anzeige
Beispiel zum Anzeigeformat:
C411 01d5h14min20s
Up-/Download aktiv
User interface
Example for display format:
C411 01d5h14min20s
Upload/download active
Diagnostics ® Operatint time fr. restart
Use this function to display the time the device has been in operation since the last device restart.
Days (d), hours (h), minutes (m) and seconds (s)
Levelflex FMP51, FMP52, FMP54
