Dimensions of the mounting bracket

A
122 (4.8)
158 (6.2)

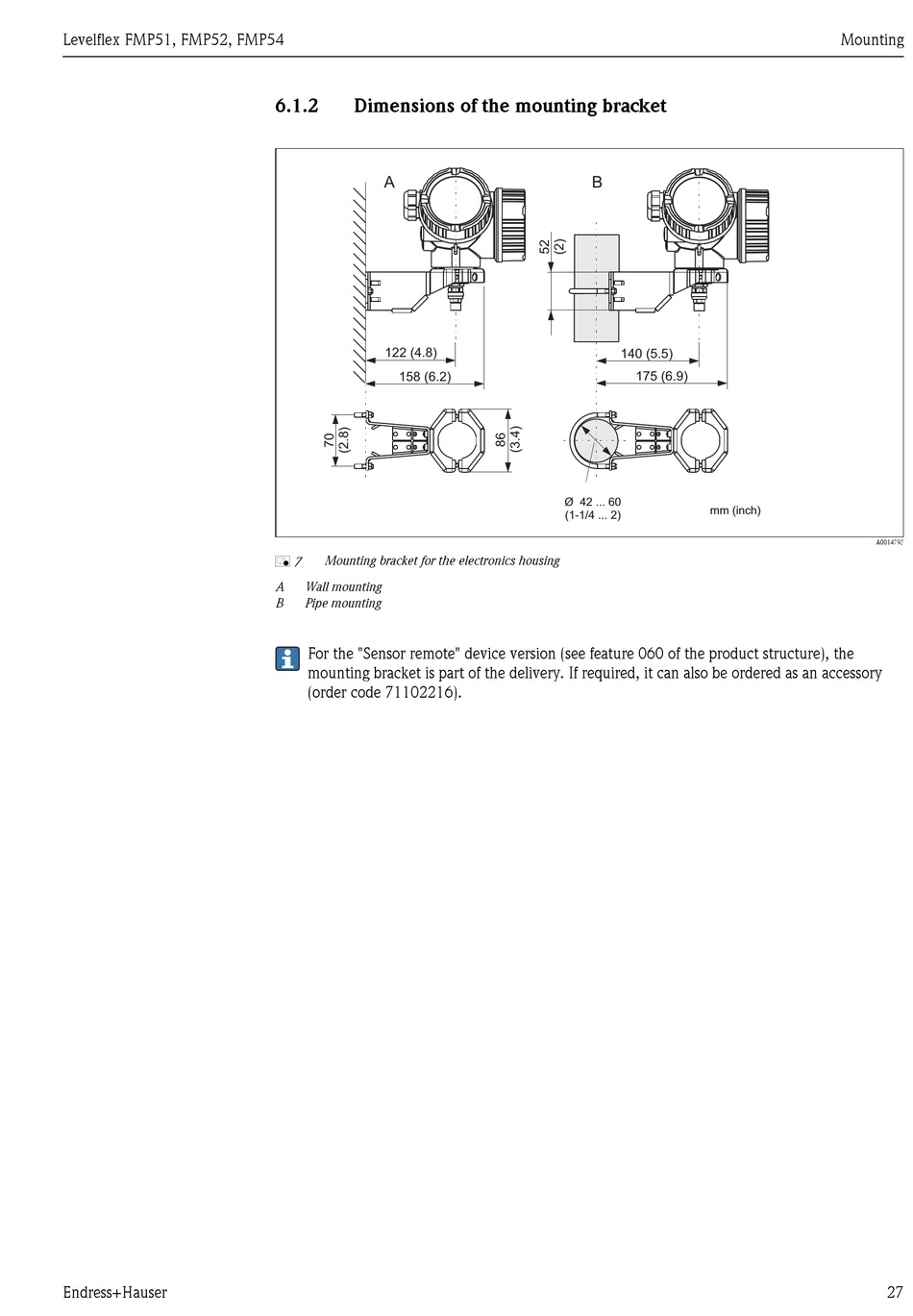

Mounting bracket for the electronics housing
å 7
A Wall mounting
B Pipe mounting
For the "Sensor remote" device version (see feature 060 of the product structure), the
mounting bracket is part of the delivery. If required, it can also be ordered as an accessory
(order code 71102216).
B
140 (5.5)
175 (6.9)
Ø 42 ... 60
mm (inch)
(1-1/4 ... 2)
