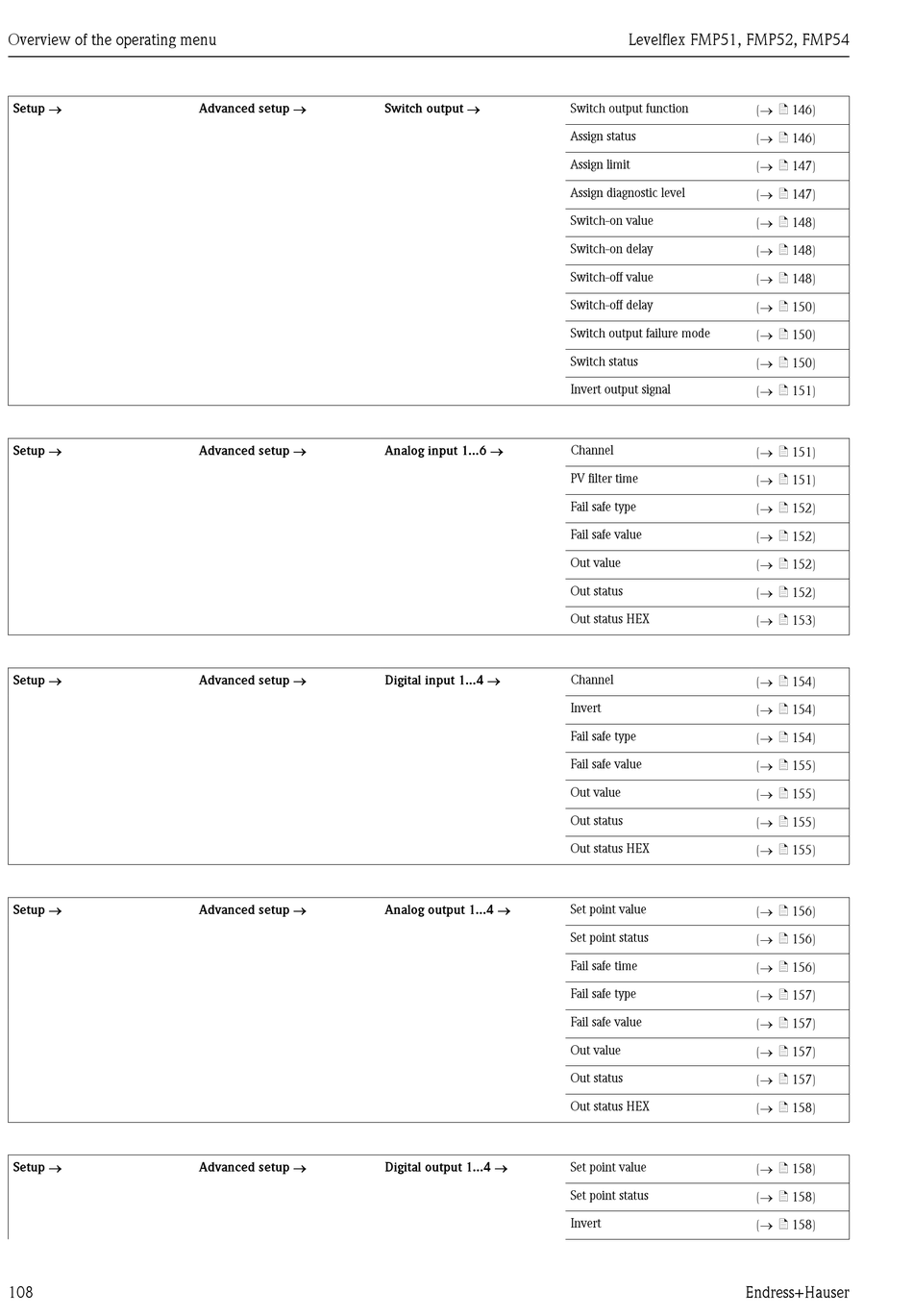

Endress+Hauser Levelflex FMP51 Operating Instructions Manual page 108

Overview of the operating menu
Setup ®
Setup ®
Setup ®
Setup ®
Setup ®
108
Advanced setup ®
Advanced setup ®
Advanced setup ®
Advanced setup ®
Advanced setup ®
Switch output ®
Analog input 1...6 ®
Digital input 1...4 ®
Analog output 1...4 ®
Digital output 1...4 ®
Levelflex FMP51, FMP52, FMP54
Switch output function
Assign status
Assign limit
Assign diagnostic level
Switch-on value
Switch-on delay
Switch-off value
Switch-off delay
Switch output failure mode
Switch status
Invert output signal
Channel
PV filter time
Fail safe type
Fail safe value
Out value
Out status
Out status HEX
Channel
Invert
Fail safe type
Fail safe value
Out value
Out status
Out status HEX
Set point value
Set point status
Fail safe time
Fail safe type
Fail safe value
Out value
Out status
Out status HEX
Set point value
Set point status
Invert
(® ä 146)
(® ä 146)
(® ä 147)
(® ä 147)
(® ä 148)
(® ä 148)
(® ä 148)
(® ä 150)
(® ä 150)
(® ä 150)
(® ä 151)
(® ä 151)
(® ä 151)
(® ä 152)
(® ä 152)
(® ä 152)
(® ä 152)
(® ä 153)
(® ä 154)
(® ä 154)
(® ä 154)
(® ä 155)
(® ä 155)
(® ä 155)
(® ä 155)
(® ä 156)
(® ä 156)
(® ä 156)
(® ä 157)
(® ä 157)
(® ä 157)
(® ä 157)
(® ä 158)
(® ä 158)
(® ä 158)
(® ä 158)
