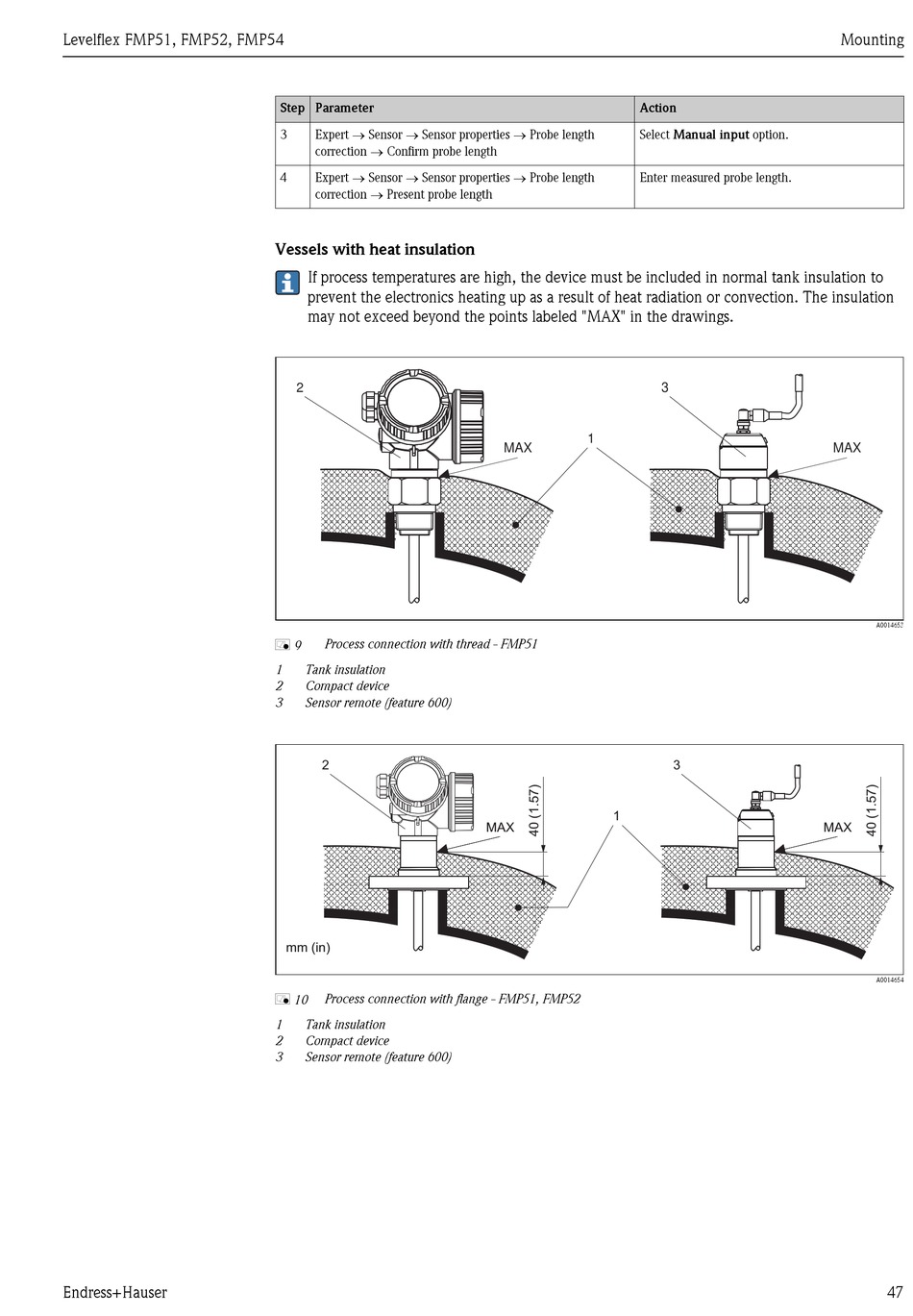

Endress+Hauser Levelflex FMP51 Operating Instructions Manual page 47

Levelflex FMP51, FMP52, FMP54
Endress+Hauser
Step Parameter
Expert ® Sensor ® Sensor properties ® Probe length
3
correction ® Confirm probe length
4 Expert ® Sensor ® Sensor properties ® Probe length
correction ® Present probe length
Vessels with heat insulation
If process temperatures are high, the device must be included in normal tank insulation to
prevent the electronics heating up as a result of heat radiation or convection. The insulation
may not exceed beyond the points labeled "MAX" in the drawings.
2
Process connection with thread - FMP51
å 9
1 Tank insulation
2 Compact device
3 Sensor remote (feature 600)
2
mm (in)
Process connection with flange - FMP51, FMP52
å 10
1 Tank insulation
2 Compact device
3 Sensor remote (feature 600)
Action
Select Manual input option.
Enter measured probe length.
1
MAX
1
MAX
3
MAX
3
MAX
