Mounting
26
6

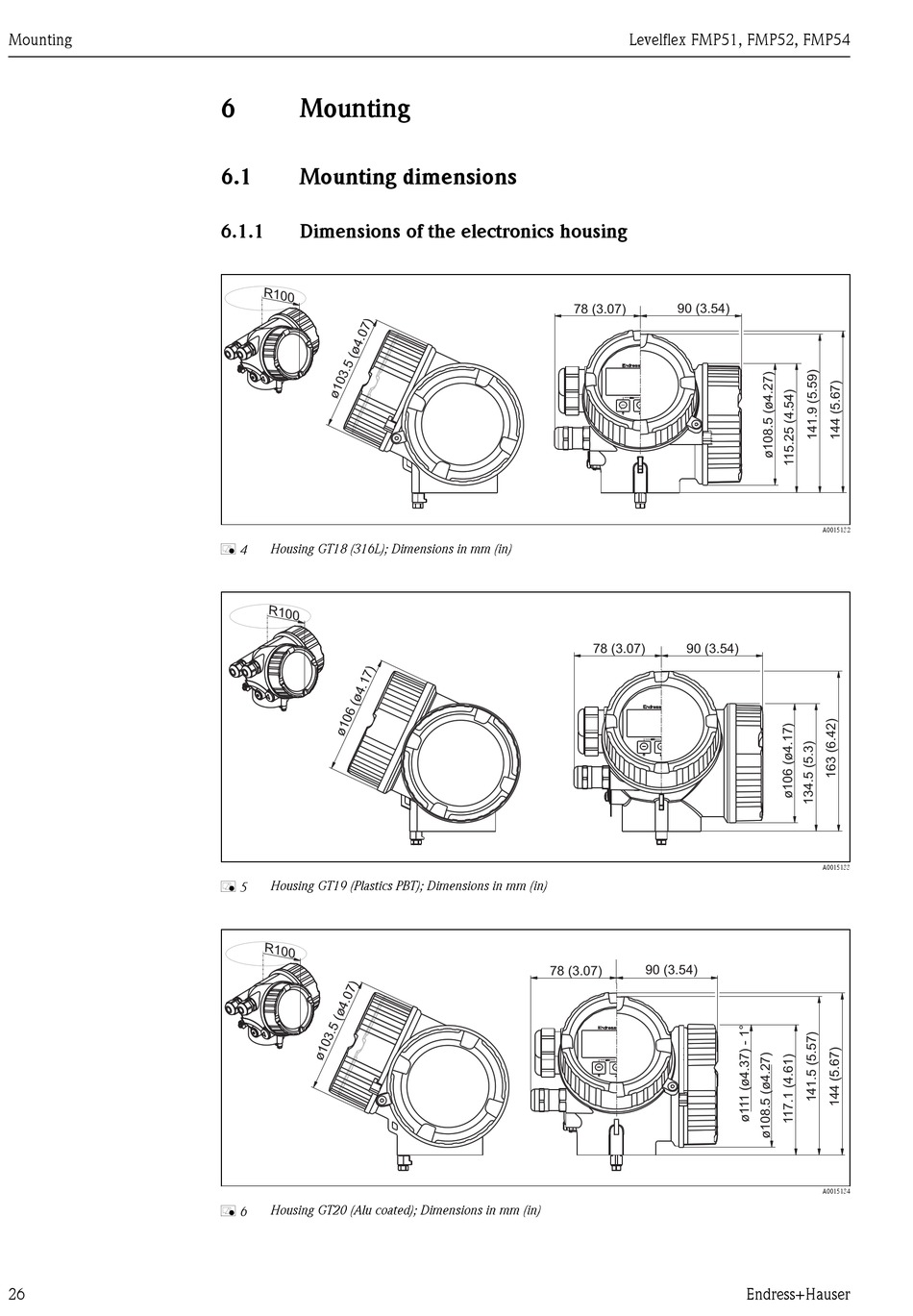

Mounting
6.1
Mounting dimensions
6.1.1
Dimensions of the electronics housing
Housing GT18 (316L); Dimensions in mm (in)
å 4
Housing GT19 (Plastics PBT); Dimensions in mm (in)
å 5
Housing GT20 (Alu coated); Dimensions in mm (in)
å 6
Levelflex FMP51, FMP52, FMP54
90 (3.54)
78 (3.07)
78 (3.07)
90 (3.54)
90 (3.54)
78 (3.07)
A0015132
A0015133
A0015134
Endress+Hauser
