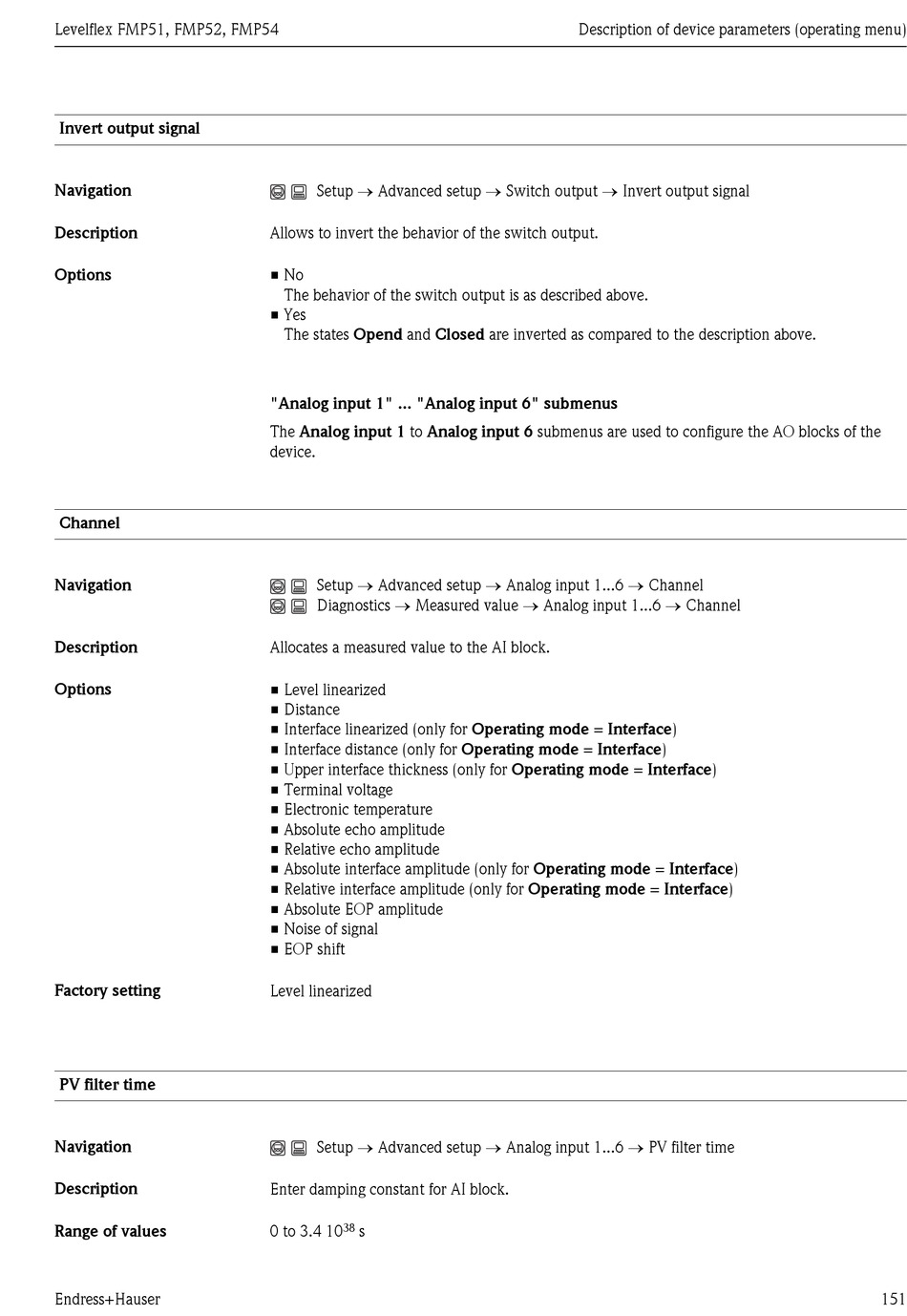

Levelflex FMP51, FMP52, FMP54
Invert output signal
Navigation
Description
Options
Channel
Navigation
Description
Options
Factory setting
PV filter time
Navigation
Description
Range of values
Endress+Hauser
Setup ® Advanced setup ® Switch output ® Invert output signal
Allows to invert the behavior of the switch output.
• No
The behavior of the switch output is as described above.
• Yes
The states Opend and Closed are inverted as compared to the description above.
"Analog input 1" ... "Analog input 6" submenus
The Analog input 1 to Analog input 6 submenus are used to configure the AO blocks of the
device.
Setup ® Advanced setup ® Analog input 1...6 ® Channel
Diagnostics ® Measured value ® Analog input 1...6 ® Channel
Allocates a measured value to the AI block.
• Level linearized
• Distance
• Interface linearized (only for Operating mode = Interface)
• Interface distance (only for Operating mode = Interface)
• Upper interface thickness (only for Operating mode = Interface)
• Terminal voltage
• Electronic temperature
• Absolute echo amplitude
• Relative echo amplitude
• Absolute interface amplitude (only for Operating mode = Interface)
• Relative interface amplitude (only for Operating mode = Interface)
• Absolute EOP amplitude
• Noise of signal
• EOP shift
Level linearized
Setup ® Advanced setup ® Analog input 1...6 ® PV filter time
Enter damping constant for AI block.
38
0 to 3.4 10 s
