2. Install the measuring device or turn the transmitter housing so that the cable entries
do not point upwards.

6.2.4

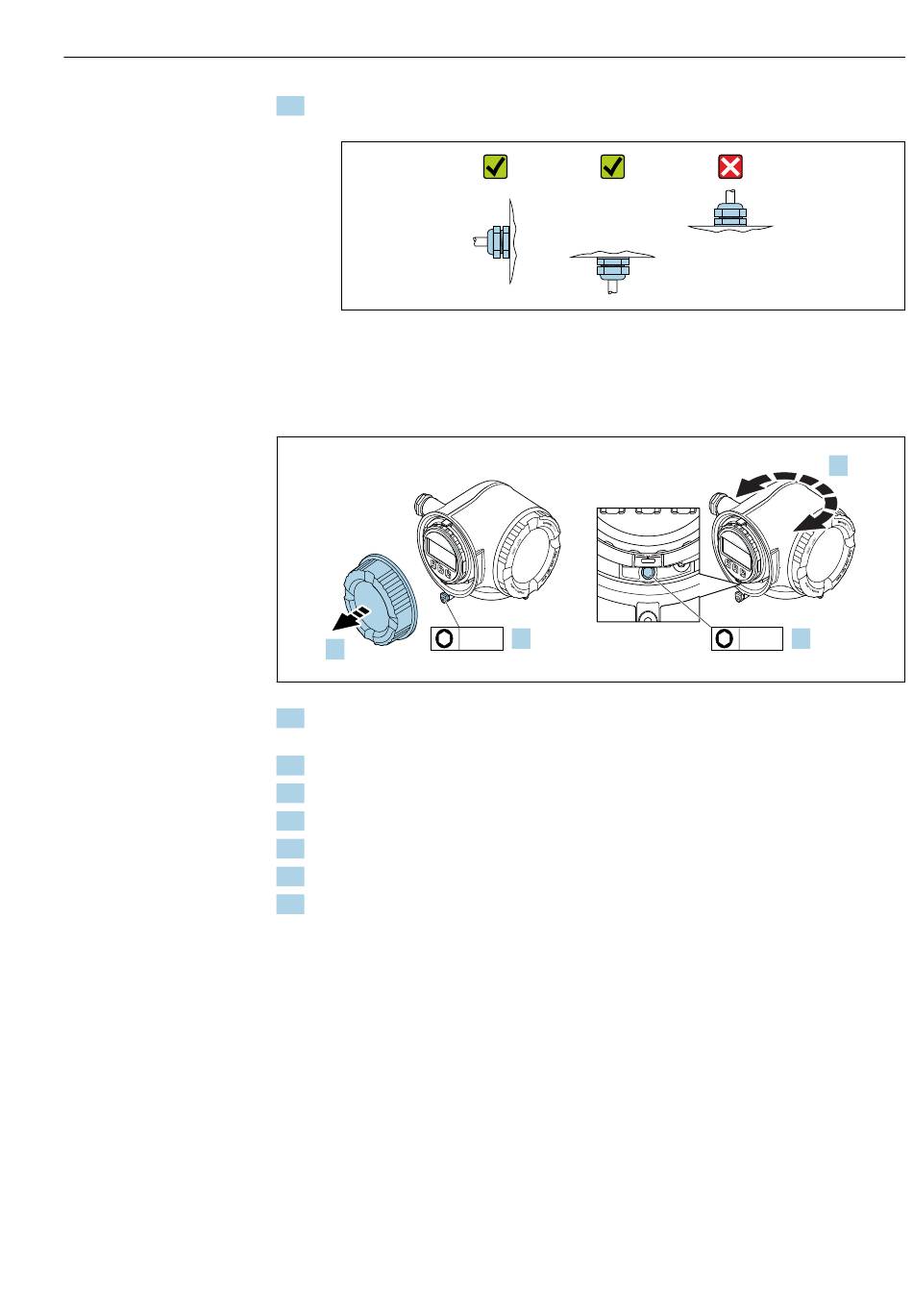

Turning the transmitter housing

To provide easier access to the connection compartment or display module, the transmitter
housing can be turned.
ES
C
–
+
2.
1. Depending on the device version: Loosen the securing clamp of the connection
compartment cover.
2. Unscrew the connection compartment cover.
3. Release the fixing screw.
4. Turn the housing to the desired position.
5. Firmly tighten the securing screw.
6. Screw on the connection compartment cover
7. Depending on the device version: Attach the securing clamp of the connection
compartment cover.
6.2.5

Turning the display module

The display module can be turned to optimize display readability and operability.
E
3 mm 1.
Installation
A0029263
4.
ES
C
–
+
E
4 mm 3.
A0029993
