Levelflex FMP51, FMP52, FMP54
Endress+Hauser
= 100 mm (4")
r
min
6 Nm

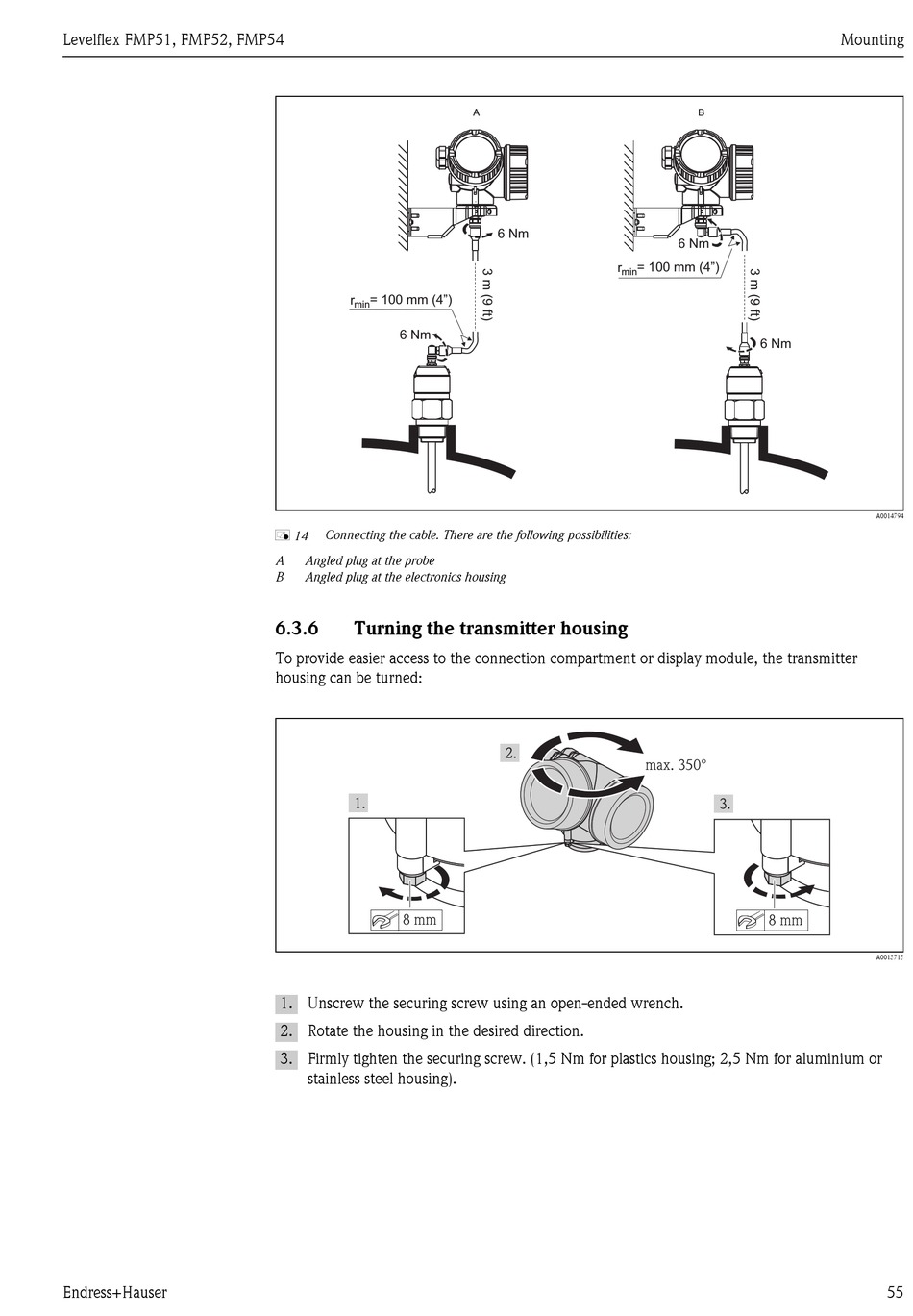

Connecting the cable. There are the following possibilities:
å 14
A Angled plug at the probe
B Angled plug at the electronics housing
6.3.6

Turning the transmitter housing

To provide easier access to the connection compartment or display module, the transmitter
housing can be turned:
8 mm
1. Unscrew the securing screw using an open-ended wrench.
2. Rotate the housing in the desired direction.
3. Firmly tighten the securing screw. (1,5 Nm for plastics housing; 2,5 Nm for aluminium or
stainless steel housing).
A
6 Nm
r = 100 mm (4")
min
max. 350°
Mounting
B
6 Nm
6 Nm
8 mm
A0014794
A0013713
55
