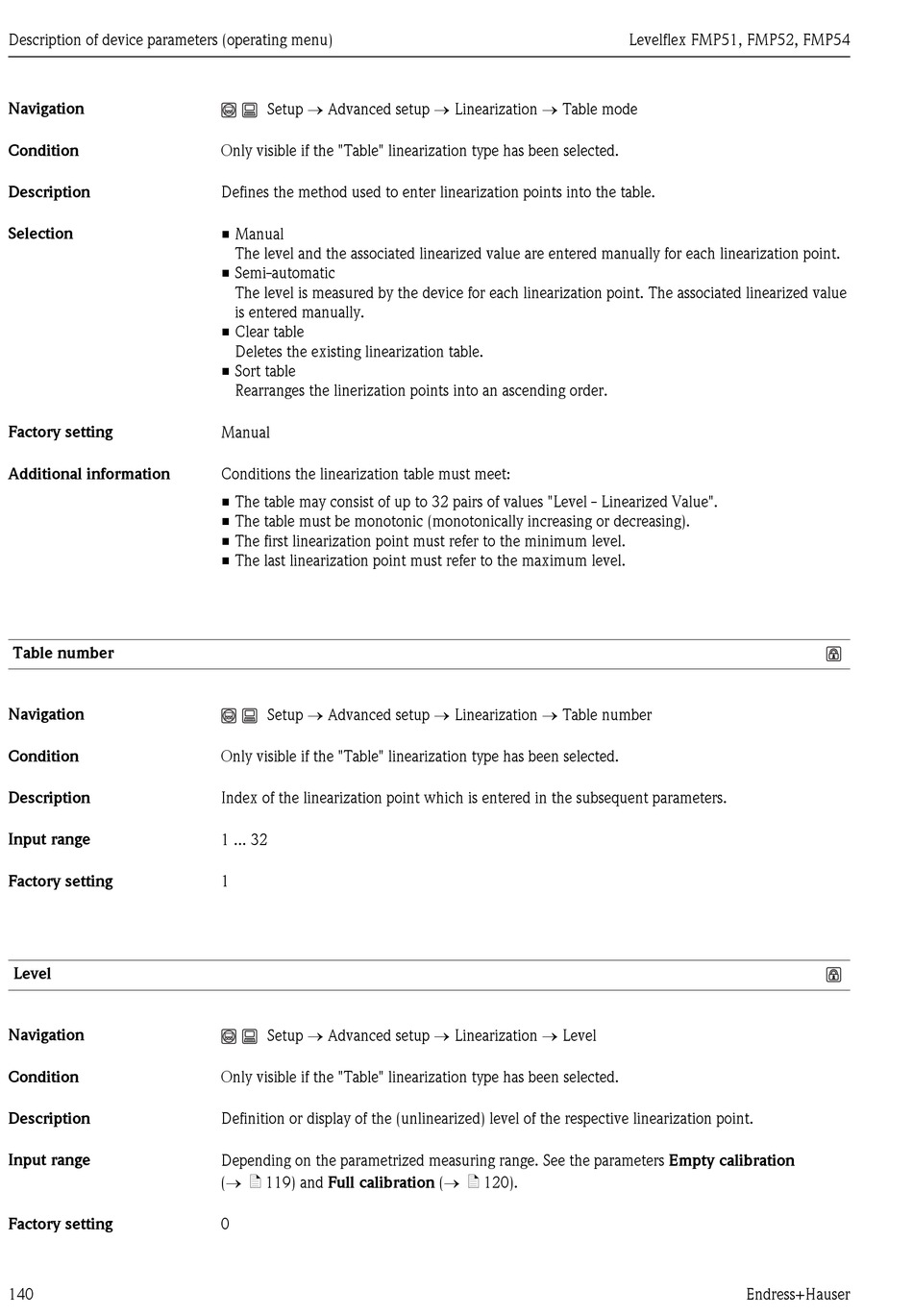

Endress+Hauser Levelflex FMP51 Operating Instructions Manual page 140

Description of device parameters (operating menu)
Navigation
Condition
Description
Selection
Factory setting
Additional information
Table number
Navigation
Condition
Description
Input range
Factory setting
Level
Navigation
Condition
Description
Input range
Factory setting
140
Setup ® Advanced setup ® Linearization ® Table mode
Only visible if the "Table" linearization type has been selected.
Defines the method used to enter linearization points into the table.
• Manual
The level and the associated linearized value are entered manually for each linearization point.
• Semi-automatic
The level is measured by the device for each linearization point. The associated linearized value
is entered manually.
• Clear table
Deletes the existing linearization table.
• Sort table
Rearranges the linerization points into an ascending order.
Manual
Conditions the linearization table must meet:
• The table may consist of up to 32 pairs of values "Level - Linearized Value".
• The table must be monotonic (monotonically increasing or decreasing).
• The first linearization point must refer to the minimum level.
• The last linearization point must refer to the maximum level.
Setup ® Advanced setup ® Linearization ® Table number
Only visible if the "Table" linearization type has been selected.
Index of the linearization point which is entered in the subsequent parameters.
1 ... 32
1
Setup ® Advanced setup ® Linearization ® Level
Only visible if the "Table" linearization type has been selected.
Definition or display of the (unlinearized) level of the respective linearization point.
Depending on the parametrized measuring range. See the parameters Empty calibration
(® ä 119) and Full calibration (® ä 120).
0
