Description of device parameters (operating menu)
Description
Input range
Factory setting
Full calibration
Navigation
Description
Input range
Factory setting
Level
Navigation
120

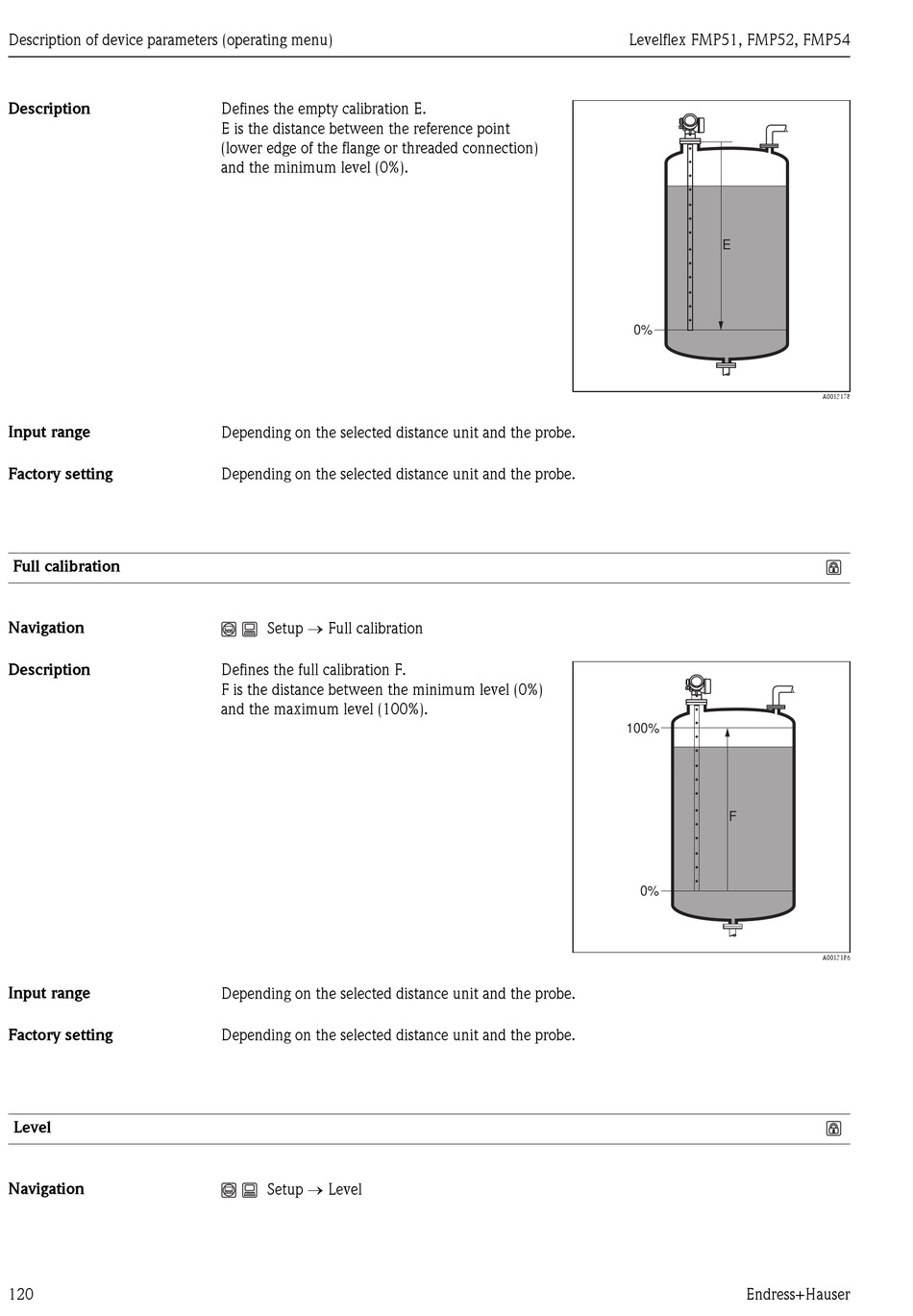

Defines the empty calibration E.
E is the distance between the reference point
(lower edge of the flange or threaded connection)
and the minimum level (0%).
Depending on the selected distance unit and the probe.
Depending on the selected distance unit and the probe.
Setup ® Full calibration
Defines the full calibration F.
F is the distance between the minimum level (0%)
and the maximum level (100%).
Depending on the selected distance unit and the probe.
Depending on the selected distance unit and the probe.
Setup ® Level
Levelflex FMP51, FMP52, FMP54
E
0%
100%
F
0%
Endress+Hauser
A0013178
A0013186
